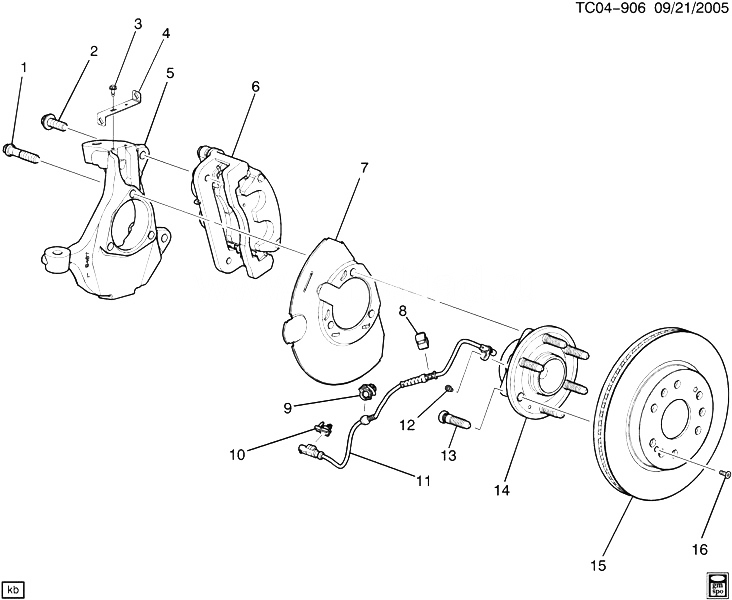

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15719028 |
BOLT, FRT WHL BRG (M14X1.5X70) (6.104) |
CK1 |
2007-2013 |
06 |
| 002 |
11612265 |
BOLT, FRT BRK CLPR (-HFH, M14X2X45, 40 THD, 28 OD, 10.9 W/ADHESIVE) |
CK1 |
2012-2013 |
04 |
| 003 |
11561674 |
BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FRT WHL SPD SEN) |
|
2007-2013 |
01 |
| 004 |
15133409 |
BRACKET, FRT WHL SPD SEN |
CK1 (JD9, JF3, JF7, JG4, J92) |
2008-2013 |
02 |
| 005 |
15942237 |
KNUCKLE, STRG (MCHG) |
CK1 |
2007-2013 |
01 |
| 005 |
15942236 |
KNUCKLE, STRG (MCHG) |
CK1 |
2007-2013 |
01 |
| 006 |
|
CALIPER, FRT BRK (SEE GROUP 04.000 BRAKE CALIPER/FRONT FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2013 |
|
| 007 |
25918337 |
SHIELD, FRT BRK (ACDelco #25918337) |
K1 (JD9, JF3, JF7, J92, JL4) (EXC 1LR) |
2010-2013 |
01 |
| 007 |
25918338 |
SHIELD, FRT BRK (ACDelco #25918338) |
K1 (JD9, JF3, JF7, J92, JL4) (EXC 1LR) |
2010-2013 |
01 |
| 008 |
15715956 |
CLIP, WHL SPD SEN WIRE (PART OF 11, 14) (GRAY) (10.00MM) (HOLDS (1)10.5/9.5 GROMMET) (PRONG FITS 13.25/12.75X7.5 SLOT) |
CK1 |
2007-2013 |
02 |
| 009 |
15267361 |
CLIP, WHL SPD SEN WIRE (PART OF 11, 14) (CLAM SHELL WITHOUT ALIGNMENT PIN) |
CK1 |
2007-2013 |
02 |
| 010 |
15229013 |
CLIP, WHL SPD SEN WIRE (PART OF 11, 14) (SLIDE LOCK WITH ALIGNMENT PIN) |
CK1 |
2007-2013 |
02 |
| 011 |
22740468 |
SENSOR KIT, FRT WHL SPD (INCLS 8-10) (PART OF 14) (MATING CONN W/LEADS USE 19149296) (ACDelco #22740468) |
CK1 |
2012-2013 |
02 |
| 012 |
15960191 |
BOLT, WHL SPD SEN (PART OF 14) (M6X1X12) |
CK1, 2, 3 |
2007-2013 |
02 |
| 013 |
11588810 |
STUD, FRT WHL (PART OF 14) (M14X1.5X29) |
CK1 |
2007-2013 |
12 |
| 014 |
25918329 |
HUB, FRT WHL (W/WHL SPD SEN) (INCLS 8-13) (ACDelco #25918329) |
K1 (JD9, JF3, JF7, J92, JL4) (EXC 1LR) |
2010-2013 |
02 |
| 014 |
25918329 |
HUB, FRT WHL (W/WHL SPD SEN) (INCLS 8-13) (ACDelco #25918329) |
K1 (JF3, JF7, J92, JL4, 1LR) (EXPORT) |
2010-2013 |
02 |
| 015 |
25819670 |
ROTOR, FRT BRK (13IN) (ACDelco #177-1014) |
K1 (JD9, JF3, JF7, J92, JL4) (EXC 1LR) |
2010-2013 |
02 |
| 015 |
25819670 |
ROTOR, FRT BRK (13IN) (ACDelco #177-1014) |
K1 (JF3, JF7, J92, JL4, 1LR) (EXPORT) |
2010-2013 |
02 |
| 016 |
11609271 |
BOLT, FRT BRK ROT (M8 X 1.25 X 20) |
CK1 |
2007-2013 |
02 |
