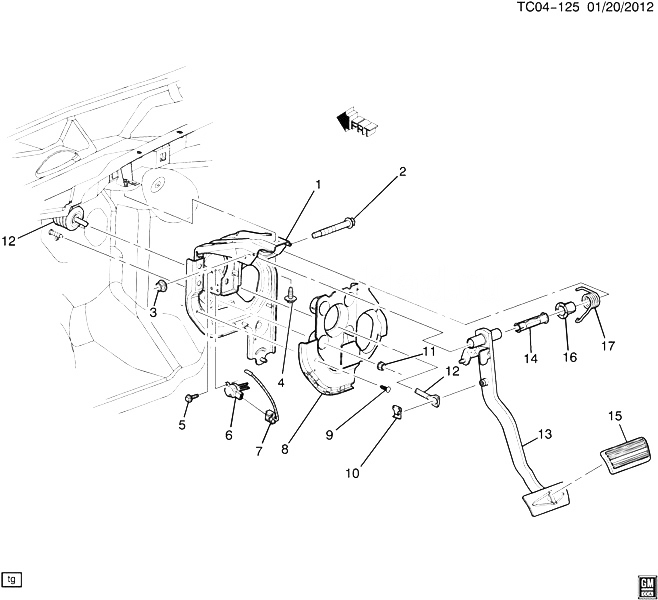

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22786965 |
BRACKET, BRK ACCEL PED (INCLS 8, 9) |
CK1 (J92) (EXC JF4) |
2012-2013 |
01 |
| 002 |
15000145 |
BOLT, BRK PED PIV (12X1.75X120, 25) |
CK1, 2, 3 |
2012-2013 |
01 |
| 003 |
11514598 |
NUT, HEX FLANGE, M12X1.75X12, 26 OD, 10, 7111M, (BRK PED PIV) |
|
2012-2013 |
01 |
| 004 |
11517182 |
BOLT, BRK PED BRKT (M10X1.5X30, 15 THD) (8.900) |
CK1, 2, 3 |
2012-2013 |
01 |
| 005 |
11609999 |
BOLT, BRK PED POSN SEN (HXHD-M4X0.7X20, 13THD) (8.900) |
CK1, 2, 3 |
2012-2013 |
01 |
| 006 |
13583374 |
SENSOR, BRK PED POSN (ACDelco #13583374) |
CK1, 2, 3 |
2013-2013 |
01 |
| 007 |
|
HARNESS, FUSE BLK WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2013 |
|
| 008 |
|
INSULATOR, DA PNL (PART OF 1) |
|
2012-2013 |
|
| 009 |
|
RETAINER, BRK ACCEL CLU PED BRKT INSL (PUSH IN) (PART OF 1) |
|
2012-2013 |
|
| 010 |
11569844 |
RETAINER, BRK PED PUSH ROD (WITH BOLT) |
CK1, 2, 3 |
2012-2013 |
01 |
| 011 |
11517996 |
NUT, P/B BOOS (M10X1.5, 11.2THK) (21.5 OD) (8.917) (ACDelco #11517996) |
CK1, 2, 3 |
2012-2013 |
04 |
| 012 |
|
BOOSTER, P/B (SEE GROUP 04.000 BRAKE BOOSTER FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2013 |
|
| 013 |
22786028 |
PEDAL, BRK (INCLS 15) |
CK1 (J92) (EXC JF4) |
2012-2013 |
01 |
| 014 |
15200851 |
BUSHING, BRK PED PIV |
CK1 (J92) (EXC JF4) |
2012-2013 |
01 |
| 015 |
15706042 |
PAD, BRK PED (PART OF 13) |
CK1 (J92) (EXC JF4) |
2012-2013 |
01 |
| 016 |
22829429 |
BUSHING, BRK PED RTN SPR |
CK1 (J92) (EXC JF4) |
2012-2013 |
01 |
| 017 |
22829431 |
SPRING, BRK PED RTN (ACDelco #22829431) |
CK1 (J92) (EXC JF4) |
2012-2013 |
01 |
