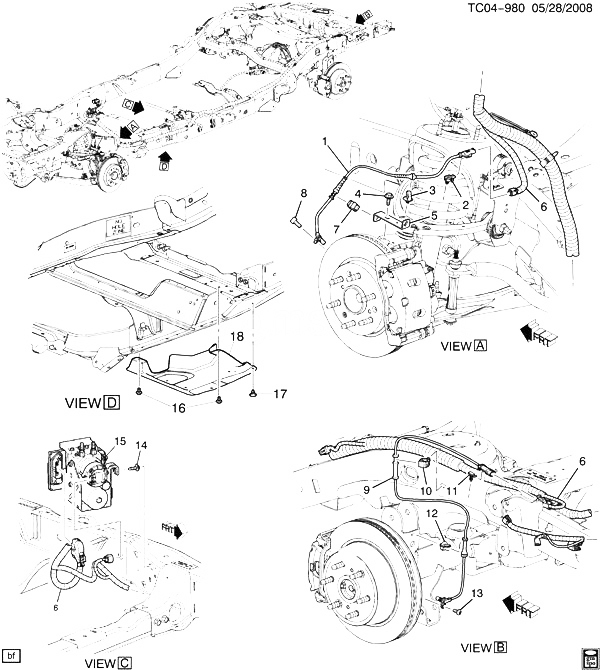

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22740468 |
SENSOR KIT, FRT WHL SPD (INCLS 2, 3, 7) (MATING CONN W/LEADS USE 19149296) (ACDelco #22740468) |
CK1 |
2012-2013 |
02 |
| 002 |
15229013 |
CLIP, WHL SPD SEN WIRE (PART OF 1) (SLIDE LOCK WITH ALIGNMENT PIN) |
CK1 |
2008-2013 |
02 |
| 003 |
15267361 |
CLIP, WHL SPD SEN WIRE (PART OF 1) (CLAM SHELL WITHOUT ALIGNMENT PIN) |
CK1 |
2008-2013 |
02 |
| 004 |
11561674 |
BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FRT BRK HOSE) |
|
2008-2013 |
02 |
| 005 |
15133409 |
BRACKET, FRT WHL SPD SEN |
CK1 (JD9, JF3, JF7, JG4, J92) |
2008-2013 |
02 |
| 006 |
|
HARNESS, CHAS WRG (SEE GROUP 02.000 WIRING HARNESS/CHASSIS FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 007 |
15715956 |
CLIP, WHL SPD SEN WIRE (PART OF 1) (GRAY) (10.00MM) (HOLDS (1)10.5/9.5 GROMMET) (PRONG FITS 13.25/12.75X7.5 SLOT) |
CK1 |
2008-2013 |
02 |
| 008 |
15960191 |
BOLT, WHL SPD SEN (M6X1X12) |
CK1, 2, 3 |
2008-2013 |
02 |
| 009 |
20938122 |
SENSOR, RR WHL SPD (INCLS 10-12) (ACDelco #20938122) |
CK1 (06-36) |
2008-2013 |
02 |
| 010 |
|
CLIP, RR WHL SPD SEN WIRE (PART OF 9) |
|
2008-2013 |
|
| 011 |
|
CLIP, RR WHL SPD SEN WIRE (PART OF 9) |
|
2008-2013 |
|
| 012 |
|
CLIP, RR WHL SPD SEN WIRE (PART OF 9) |
|
2008-2013 |
|
| 013 |
11570519 |
SCREW, PAN HD, M6X1X13, 10 THD 12 OD, 9.8, PHOS OIL.W/ADH (RR WHL SPD SEN) |
|
2008-2013 |
02 |
| 014 |
11589407 |
BOLT, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (BRK PRESS MOD VLV BRKT) |
|
2008-2013 |
03 |
| 015 |
|
MODULE, ELEK BRK CONT (W/BRKT HYD BOOS EMU ECU) (SEE GROUP 04.000 BRAKE CONTROL MODULE FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 016 |
11518341 |
BOLT, HEX, M10X1.5X25, 14 THD, 28 OD, 6202M, 7114M, TAP, TR-PT (ELEK BRK CONT MDL SPH SHLD) |
|
2008-2013 |
02 |
| 017 |
11589295 |
RETAINER, PUSH-IN, FITS10.5 HOLE, 3-6.0 THK PNL, NYLON (ELEK BRK CONT RLY BRKT (PUSH ON)) |
|
2008-2013 |
03 |
| 018 |
25984548 |
SHIELD, ELEK BRK CONT MDL SPH |
CK1 (06) (HP2) |
2009-2013 |
01 |
