| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

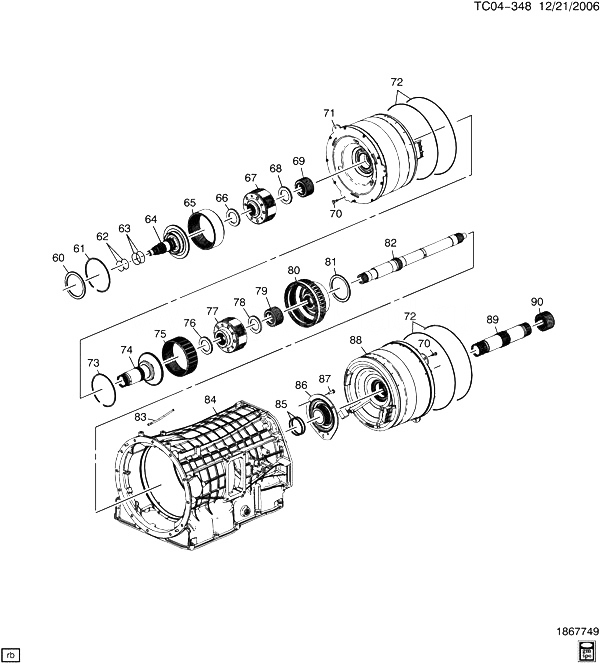

| 060 |
08678211 |
BEARING, INPUT SHF THR (BETWEEN FWD CLU HSG SUPPORT) (4.164) (ACDelco #8678211) |
CK1 (M99) |
2008-2013 |
01 |
| 061 |
|
RING, INTL GR RET (1ST POSN) (*KIT1) |
|
2008-2013 |
|
| 062 |
29544312 |
RING, INPUT SHF FLUID SEAL |
CK1 (M99) |
2008-2013 |
01 |
| 063 |
29543643 |
RING, A/TRNS TORQ DPNR CLU FLUID SEAL (0.666) |
CK1 (M99) |
2008-2013 |
01 |
| 064 |
29545080 |
SHAFT, INPUT |
CK1 (M99) |
2008-2013 |
01 |
| 065 |
29543679 |
GEAR, INTL (1ST POSN) |
CK1 (M99) |
2008-2013 |
01 |
| 066 |
29543560 |
BEARING, SUN GR CARR THR (1ST POSN) (4.158) |
CK1 (M99) |
2008-2013 |
01 |
| 067 |
29546477 |
CARRIER, SUN GR (1ST POSN) (INCLS 68) |
CK1 (M99) |
2009-2013 |
01 |
| 068 |
29543560 |
BEARING, INTL GEAR THR (2ND POSN) (PART OF 67) |
CK1 (M99) |
2008-2013 |
01 |
| 069 |
29543612 |
GEAR, SUN (1ST POSN) |
CK1 (M99) |
2008-2013 |
01 |
| 070 |
29543499 |
BOLT, DRV MOT/GEN (4.162) |
CK1 (M99) |
2008-2013 |
03 |
| 071 |
24251623 |
MOTOR, DRV (W/ GEN) (1ST POSN) |
CK1 (M99) |
2008-2013 |
01 |
| 072 |
29543593 |
SEAL, GEN DRV MOT HSG (*KIT2) |
CK1 (M99) |
2008-2013 |
04 |
| 073 |
|
RING, SUN GR SHF RET (*KIT1) |
|
2008-2013 |
|
| 074 |
29543627 |
SHAFT, SUN GR (1ST POSN) |
CK1 (M99) |
2008-2013 |
01 |
| 075 |
29543626 |
GEAR, INTL (2ND POSN) |
CK1 (M99) |
2008-2013 |
01 |
| 076 |
29543560 |
BEARING, INTL GEAR THR (2ND POSN) (PART OF 77) |
CK1 (M99) |
2008-2013 |
01 |
| 077 |
29547539 |
CARRIER, SUN GR (2ND POSN) (INCLS 76) |
CK1 (M99) |
2009-2013 |
01 |
| 078 |
29543560 |
BEARING, HYBRID DIR, 2-3-4 CLU HUB THR (4.158) |
CK1 (M99) |
2008-2013 |
01 |
| 079 |
29543612 |
GEAR, SUN (2ND POSN) |
CK1 (M99) |
2008-2013 |
01 |
| 080 |
|
HOUSING, 1-3 CLU (SEE GROUP 04.000 1-3 CLUTCH ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 081 |
08678211 |
BEARING, 1-3 CLU HSG THR (BETWEEN FWD CLU HSG SUPPORT) (4.164) (ACDelco #8678211) |
CK1 (M99) |
2008-2013 |
01 |
| 082 |
29543614 |
SHAFT, MAIN |
CK1 (M99) |
2008-2013 |
01 |
| 083 |
29544362 |
PIPE, A/TRNS VENT |
CK1 (M99) |
2008-2013 |
01 |
| 084 |
19168292 |
CASE, A/TRNS |
CK1 (M99) |
2008-2013 |
01 |
| 085 |
|
RING, 1-3 CLU HSG FLUID SEAL (*KIT2) |
|
2008-2013 |
|
| 086 |
29544412 |
SUPPORT, CTR |
CK1 (M99) |
2008-2013 |
01 |
| 087 |
29543499 |
BOLT, CTR SUPT |
CK1 (M99) |
2008-2013 |
04 |
| 088 |
29546644 |
MOTOR, DRV (W/ GEN) (2ND POSN) (INCLS 89) (W/SHAFT) |
CK1 (M99) |
2009-2013 |
01 |
| 089 |
|
SHAFT, SUN GR (3RD POSN) (PART OF 88) |
|
2008-2013 |
|
| 090 |
29543521 |
GEAR, SUN (3RD POSN) |
CK1 (M99) |
2008-2013 |
01 |
| K01 |
19168285 |
RING KIT, RET (INCLS 61, 73) |
CK1 (M99) |
2008-2013 |
01 |
| K02 |
19168275 |
SEAL KIT, A/TRNS SERV (INCLS 72, 85) (FULL TRANS) |
CK1 (M99) |
2008-2013 |
01 |
