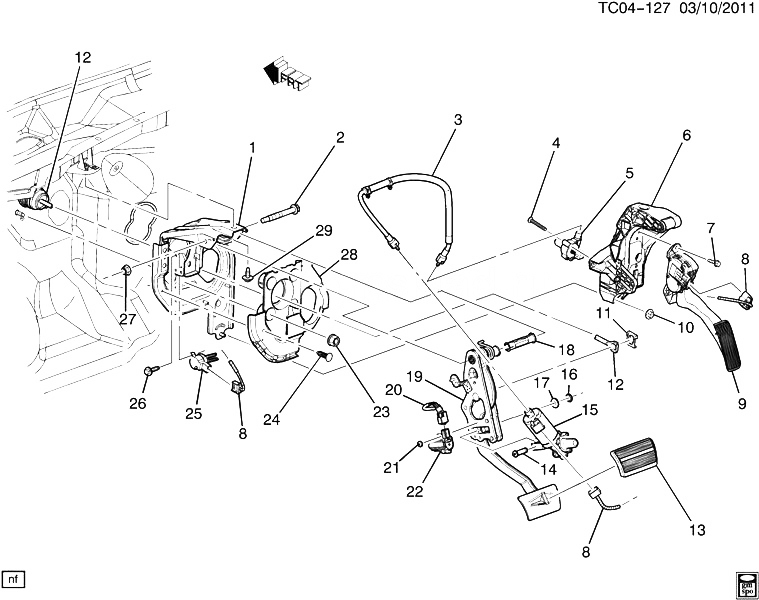

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22786035 |
BRACKET, BRK ACCEL PED (INCLS 24, 28) |
CK1 (AN3, JD9, JF3, JF4, JF7) |
2012-2013 |
01 |
| 001 |
22786038 |
BRACKET, BRK ACCEL PED (INCLS 24, 28) |
CK1 (AN3, JF4, J92) |
2012-2013 |
01 |
| 002 |
15000145 |
BOLT, BRK PED PIV (12X1.75X120, 25) |
CK1, 2, 3 |
2012-2013 |
01 |
| 003 |
|
CABLE, BRK PED POSITION (PART OF 6) |
|
2012-2013 |
|
| 004 |
11562023 |
BOLT, ELEK THROT ACTR (PAN HEAD, M6X1X40, 15 THD, 12 OD, 10.9 STL, GM4277, HDR PT) |
CK1, 2, 3 |
2012-2013 |
02 |
| 007 |
11516424 |
BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (ACCEL PED LVR) |
|
2012-2013 |
02 |
| 008 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2013 |
|
| 009 |
20972082 |
PEDAL, ACCEL |
CK1, 2, 3 |
2012-2013 |
01 |
| 010 |
15685170 |
NUT, HEX HD W/FL WA, M6X1, 5.5 THK, 9, 7111M, 2MM THK 19 OD WA, NYLOC (PART OF 6) (8.917) |
|
2012-2013 |
03 |
| 011 |
11569844 |
RETAINER, BRK PED PUSH ROD (WITH BOLT) |
CK1, 2, 3 |
2012-2013 |
01 |
| 012 |
|
BOOSTER, P/B (SEE GROUP 04.000 BRAKE BOOSTER FOR DETAILED ILLUSTRATED VIEW) (4.901) |
|
2012-2013 |
|
| 013 |
88982976 |
PAD, BRK PED (PART OF 19) |
CK1 (JD9, JF3, JF4, JF7, J92) |
2012-2013 |
01 |
| 014 |
|
PIN, BRK PED BRKT (PART OF 19) |
|
2012-2013 |
|
| 015 |
|
MOTOR, BRK ACCEL PED ADJR ACTR (PART OF 19) |
|
2012-2013 |
|
| 016 |
|
NUT, BRK PED (PART OF 19) |
|
2012-2013 |
|
| 017 |
|
WASHER, BRK PED (PART OF 19) |
|
2012-2013 |
|
| 018 |
15200851 |
BUSHING, BRK PED PIV |
CK1 (AN3, JF4, J92) |
2012-2013 |
01 |
| 019 |
22786030 |
PEDAL, BRK (INCLS 13-17, 20-22) |
CK1 (AN3, JF4, J92) |
2012-2013 |
01 |
| 020 |
|
HARNESS, BRK PED POSN SEN (PART OF 19) |
|
2012-2013 |
|
| 021 |
88982978 |
BOLT, BRK PED POSN SEN (PART OF 19) (TORGUE SCREW) |
CK1, 2, 3 |
2012-2013 |
02 |
| 022 |
25799118 |
SENSOR KIT, BRK PED POSN (PART OF 19) (ACDelco #25799118) |
CK1, 2, 3 (AN3, JF4) |
2012-2013 |
01 |
| 023 |
11517996 |
NUT, P/B BOOS (M10X1.5, 11.2THK) (21.5 OD) (8.917) (ACDelco #11517996) |
CK1, 2, 3 |
2012-2013 |
04 |
| 024 |
|
RETAINER, BRK ACCEL CLU PED BRKT INSL (PUSH IN) (PART OF 1) |
|
2012-2013 |
|
| 025 |
13583374 |
SENSOR, BRK PED POSN (ACDelco #13583374) |
CK1, 2, 3 |
2013-2013 |
01 |
| 026 |
11609999 |
BOLT, BRK PED POSN SEN (HXHD-M4X0.7X20, 13THD) (8.900) |
CK1, 2, 3 |
2012-2013 |
01 |
| 027 |
11514598 |
NUT, HEX FLANGE, M12X1.75X12, 26 OD, 10, 7111M, (BRK PED PIV) |
|
2012-2013 |
01 |
| 028 |
|
INSULATOR, DA PNL (PART OF 1) |
|
2012-2013 |
|
| 029 |
11517182 |
BOLT, BRK PED BRKT (M10X1.5X30, 15 THD) (8.900) |
CK1, 2, 3 |
2012-2013 |
01 |
