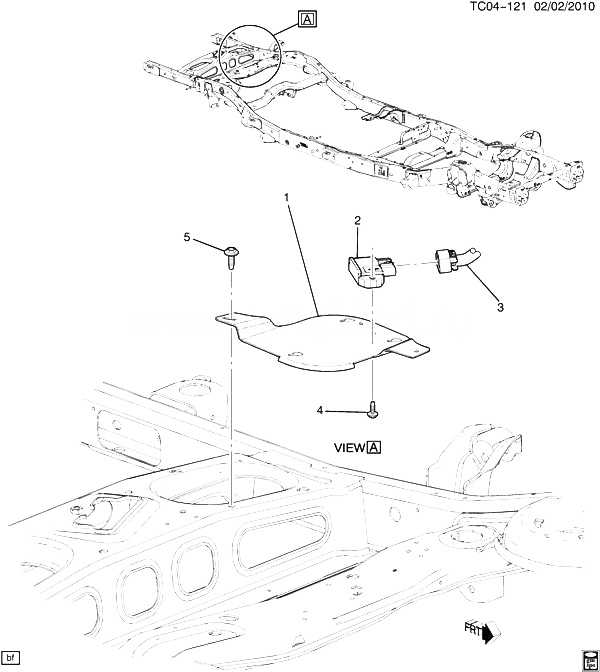

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20960750 |
BRACKET, TRLR BRK CONT MDL CONT RLY |
CK1 (06-36) |
2011-2013 |
01 |
| 002 |
20904439 |
RELAY, TRLR BRK CONT (MATES W/CONNECTOR 13580880) (ACDelco #20904439) |
CK1, 2, 3 (JL1) |
2011-2013 |
01 |
| 003 |
|
HARNESS, CHAS WRG (SEE GROUP 02.000 WIRING HARNESS/CHASSIS FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 004 |
11570136 |
BOLT, HEX HD, W/CON SPR WA, M6X1X23, 14 THD, 17 O.D., 8.8, GMW3359 (TRLR BRK CONT RLY) |
|
2011-2013 |
02 |
| 005 |
11516569 |
BOLT, HEX HD, W/FLAT WA, M6X1X30, P-PT, 9.8, 7114M (TRLR BRK CONT MDL CONT RLY BRKT) |
|
2011-2013 |
02 |
