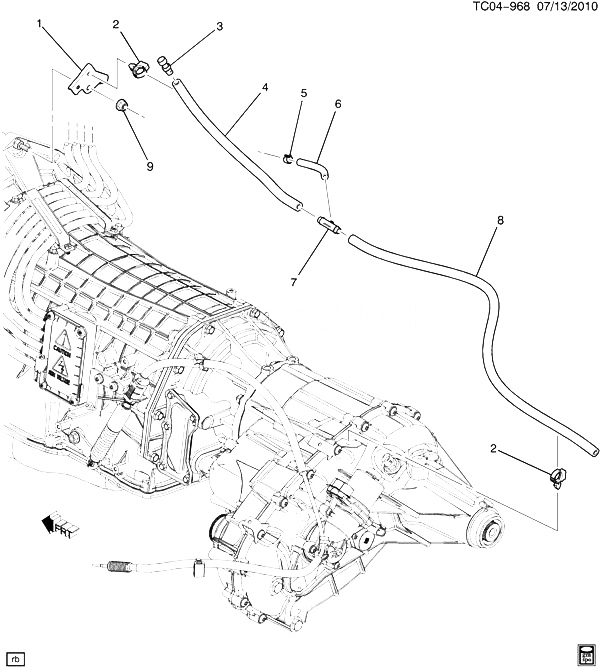

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 002 |
15006134 |
CLIP, TRANS VENT HOSE (TREE MOUNT TIE STRAP) (*KIT1) (8.846) |
CK1 (M99) |
2011-2013 |
02 |
| 003 |
25892279 |
VENT, A/TRNS (VENT STEM W/CAP) (*KIT1) (4.510) (ACDelco #25892279) |
CK1 (M99) |
2011-2013 |
01 |
| 004 |
|
HOSE, TRANS VENT (*KIT1) |
|
2012-2013 |
|
| 005 |
25518880 |
CLAMP, HEX HD, WORM GEAR, .250-.625, .320 WIDE, SS (TRANS VENT HOSE) (*KIT1) (8.948) (ACDelco #25518880) |
|
2011-2013 |
01 |
| 006 |
|
HOSE, TRANS VENT (*KIT1) |
|
2012-2013 |
|
| 007 |
24254826 |
CONNECTOR, TRANS VENT HOSE (Y-CONN) (*KIT1) |
CK1 (M99) |
2011-2013 |
01 |
| 008 |
|
HOSE, TRANS VENT (*KIT1) |
|
2012-2013 |
|
| 009 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (TRANS VENT HOSE CLIP BRKT) (8.915) (ACDelco #11514596) |
|
2008-2013 |
01 |
| K01 |
24258487 |
HOSE, TRANS VENT (INCLS 2-8) (ACDelco #24258487) |
CK1 (M99) |
2011-2013 |
01 |
