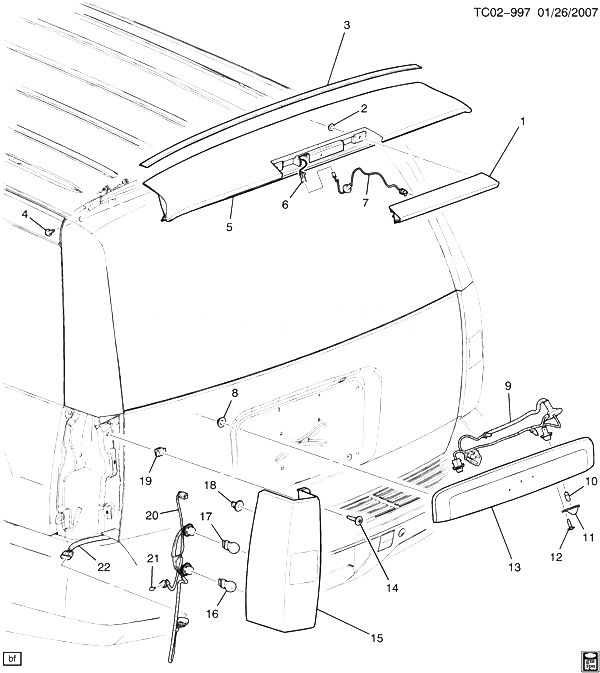

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15272016 |
LAMP, HIGH MT STOP |
CK1 (06) (HP2, X88, Z88) (EXC Y91) |
2009-2013 |
01 |
| 002 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (HIGH MT S/LP) |
|
2008-2013 |
02 |
| 003 |
25854475 |
SEAL, L/GATE UPR APLQ |
CK1 (06) (HP2, X88, Z88) (EXC Y91) |
2008-2013 |
01 |
| 004 |
11569872 |
BOLT, L/GATE APLQ (M 6 X 1 X 23.5) (8.4 THD, 18 OD, 8.8) |
CK1 (06) (HP2, X88, Z88) (EXC Y91) |
2008-2013 |
02 |
| 005 |
25938177 |
APPLIQUE, L/GATE UPR (PRIMED SURFACE) (W/O HIGH MT STOP LMP) |
CK1 (06) (HP2, X88, Z88) (EXC Y91) |
2008-2013 |
01 |
| 006 |
|
HARNESS, BODY WRG (SEE GROUP 02.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 007 |
15857136 |
WIRE, HIGH MT S/LP |
CK1, 2 (06) |
2008-2013 |
01 |
| 008 |
03530297 |
NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (L/GATE CTR MLDG) |
|
2008-2013 |
04 |
| 009 |
25923762 |
HARNESS, RR LIC PLT LP WRG |
CK1, 2 (06) (HP2, UVC, X88) |
2009-2013 |
01 |
| 010 |
01999382 |
BULB, (RR LIC PLT LP) (ACDelco #W5WLL) (LONGER LIFE) |
|
2008-2013 |
02 |
| 011 |
25778786 |
LAMP, RR LIC PLT |
CK1, 2 (06) (X88, Z75, Z88) |
2008-2013 |
02 |
| 012 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (RR LIC PLT LP LENS) |
|
2008-2013 |
04 |
| 013 |
|
APPLIQUE, L/GATE CTR (W/RR LIC PLT LP) (SEE GROUP 17.000 LIFTGATE HARDWARE PART 3-CENTER APPLIQUE FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2013 |
|
| 014 |
11609406 |
SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (T/LP) |
|
2008-2013 |
04 |
| 015 |
22837837 |
LAMP, TAIL (INCLS 16-18, 20, 21) |
CK1, 2 (06) (HP2, X88, Z88) (EXC Y91) |
2008-2013 |
01 |
| 015 |
22837838 |
LAMP, TAIL (INCLS 16-18, 20, 21) |
CK1, 2 (06) (HP2, X88, Z88) (EXC Y91) |
2008-2013 |
01 |
| 016 |
13502322 |
BULB, TAIL T/SIG LP (PART OF 15) (TRADE # 3157K) (8.991) (ACDelco #3157K) |
CK1, 2 (06) (HP2, X88, Z88) |
2008-2013 |
02 |
| 017 |
15224109 |
BULB, B/U LP (PART OF 15) (TRADE # 7441) (T20 TYPE) (8.991) (ACDelco #7441) |
CK1, 2 (06) (HP2, X88, Z88) (EXC Y91) |
2009-2013 |
02 |
| 018 |
20843295 |
RETAINER, T/LP (PART OF 15) |
CK1, 2 (06) (HP2, X88, Z88) (EXC Y91) |
2009-2013 |
02 |
| 019 |
11610510 |
NUT, PUSH-IN, M4.2X1.41, 0.7-2.15 PNL THK, SAE 1050-65, GMW3359 W/BLK SEAL (T/LP) |
|
2008-2013 |
04 |
| 020 |
15895247 |
HARNESS, T/LP WRG (PART OF 15) |
CK1, 2 (06) (HP2, X88, Z88) (EXC Y91) |
2008-2013 |
02 |
| 021 |
09421330 |
BULB, TRADE#194, 12V, 2CP (PART OF 15) (ACDelco #L194) |
|
2008-2013 |
02 |
| 022 |
|
HARNESS, CHAS WRG (SEE GROUP 02.000 WIRING HARNESS/CHASSIS FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
