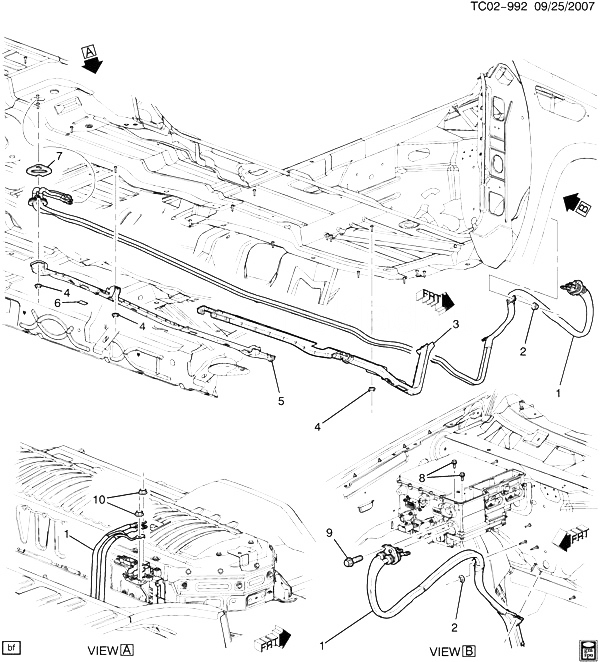

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25880095 |
CABLE, GEN BAT POS NEG (INCLS 9) (*KIT1) (2.342) (ACDelco #25880095) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 001 |
25880095 |
CABLE, GEN BAT POS NEG (INCLS 9) (*KIT1) (ACDelco #25880095) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 002 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS NEG CBL CLIP) |
|
2008-2013 |
01 |
| 003 |
25880097 |
CHANNEL, DRV MOT BAT POS NEG CBL (FRONT PLASTIC AT ELBOW) (*KIT1) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 004 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (DRV MOT BAT POS NEG CBL CHAN) |
|
2008-2013 |
08 |
| 005 |
25880098 |
CHANNEL, DRV MOT BAT POS NEG CBL ( (3) PIECE PLASTIC CENTER REAR) (*KIT1) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 006 |
15876513 |
LABEL, BAT WRNG (LOCATED ON BATTERY CABLE) (*KIT1) |
CK1 (06) (LZ1, HP2) |
2010-2013 |
01 |
| 007 |
25880096 |
GROMMET, DRV MOT BAT POS NEG CBL (*KIT1) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 008 |
03530297 |
NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (DRV MOT BAT PWR CONT MDL HARN CONN) |
|
2008-2013 |
03 |
| 009 |
11562426 |
BOLT, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (PART OF 1) |
|
2008-2013 |
02 |
| 010 |
11561918 |
BOLT, HEX W/CON WA, M6X1X18, 10 THD, 14 OD, 8.8, GMW3359, MAT-PT, (BAT POS NEG (300 V) CBL) |
|
2008-2013 |
02 |
| K01 |
25923890 |
CABLE, BAT POS NEG (300 V) (INCLS 1, 3, 5, 6, 7) |
CK1 (06) (HP2) |
2008-2013 |
01 |
