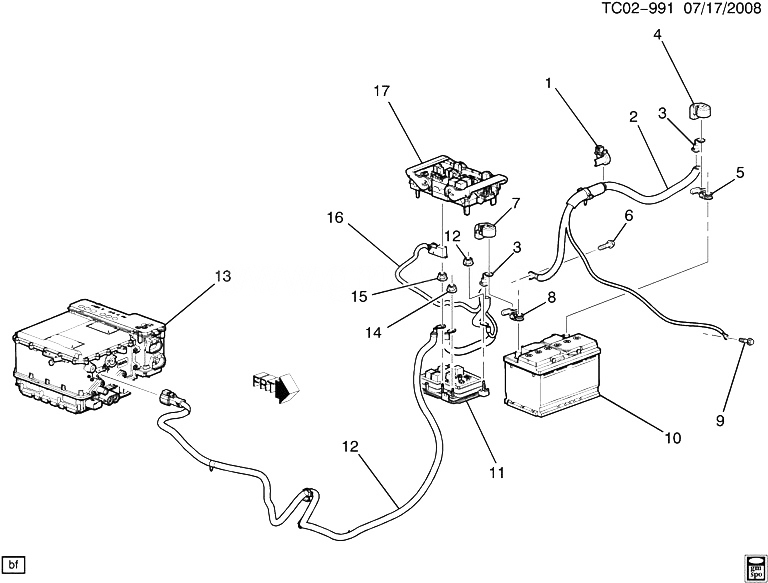

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25870512 |
SENSOR, DRV MOT BAT CUR (PART OF 2) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 002 |
22759056 |
CABLE, BAT NEG (INCLS 1, 3-5) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 003 |
25941942 |
TERMINAL, BAT POS CBL (LABELED 25941942 (PART OF 2, 16) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 004 |
25905443 |
COVER, BAT NEG CBL TERM (PART OF 2) (HIGH VOLTAGE TERMINAL COVER LABELED 5443) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 004 |
25829710 |
COVER, BAT NEG CBL TERM (PART OF 2) (PART OF 25941944 CABLE LABELED 1944) |
CK1 (06) (LZ1, HP2) |
2010-2013 |
01 |
| 005 |
15935030 |
TERMINAL, BAT NEG CBL (PART OF 2) (ACDelco #15935030) |
CK1 (06) (LZ1, HP2) |
2010-2013 |
01 |
| 006 |
11562004 |
BOLT, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (BAT NEG CBL GND) |
|
2008-2013 |
01 |
| 007 |
25829712 |
COVER, BAT POS CBL TERM (PART OF 16) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 008 |
25941942 |
TERMINAL, BAT POS CBL (LABELED 25941942) (PART OF 16) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 009 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (FWD LP WRG HARN GND) |
|
2008-2013 |
02 |
| 010 |
|
BATTERY, (SEE GROUP 02.000 BATTERY MOUNTING FOR DETAILED ILLUSTRATED VIEW) (CCA 770) (TOP POST) (278X175X190) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) |
|
2008-2013 |
|
| 011 |
|
BLOCK, ENG WRG HARN JUNC (SEE GROUP 02.000 BLOCK/ACCESSORY WIRING JUNCTION FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 012 |
25899469 |
CABLE, DRV MOT GEN BAT POS (300 V) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 013 |
|
MODULE, DRV MOT GEN PWR INV (W/O CALN OPERG SYS) (SEE GROUP 02.000 CONTROL MODULE/DRIVE MOTOR FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 014 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (AUX BAT POS CBL) |
|
2008-2013 |
02 |
| 015 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS CBL) |
|
2008-2013 |
01 |
| 016 |
22758936 |
CABLE, AUX BAT POS (INCLS 3, 7, 8) (ACDelco #22758936) |
CK1 (06) (LZ1, HP2) |
2013-2013 |
01 |
| 017 |
|
BLOCK, ENG WRG HARN JUNC (SEE GROUP 02.000 BLOCK/ENGINE HARNESS JUNCTION FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
