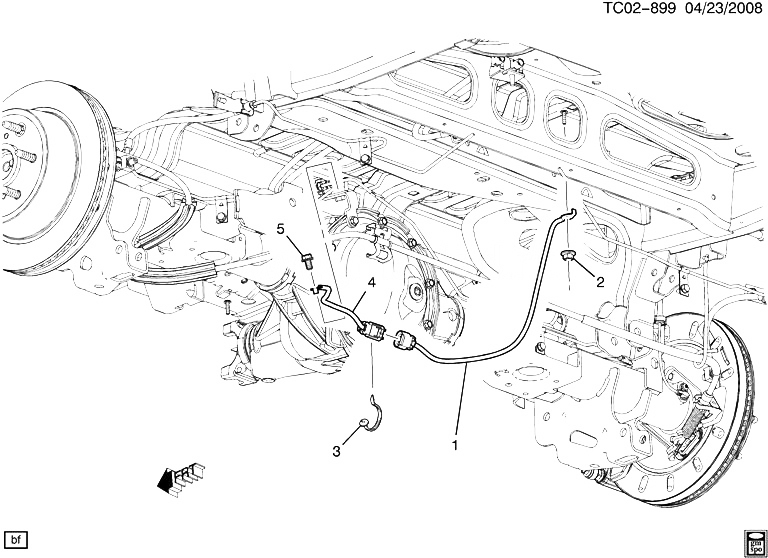

(TC02-899) 2008-2013 CK107(06) ЖГУТ ПРОВОДОВ/ШАССИ GROUND STRAPS (HYBRID HP2) CHEVROLET TAHOE HYBRID (4WD) 2013
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 25866712 | STRAP, BODY GND | CK1 (06) (HP2) | 2009-2013 | 01 |
| 002 | 11609411 | NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BODY GND STRP) | 2008-2013 | 01 | |
| 003 | 12337820 | STRAP, 15 TIE STRAP (ACSRY WRG HARN) (ACDelco #12337820) | 2008-2013 | AR | |
| 004 | 25949588 | STRAP, R/AXLE WRG HARN | CK1 (06) (HP2) | 2009-2013 | 01 |
| 005 | 11515755 | BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (RR BRK HOSE) (T/W 12345493 REPLCS 25534835) | 2008-2013 | 01 |
