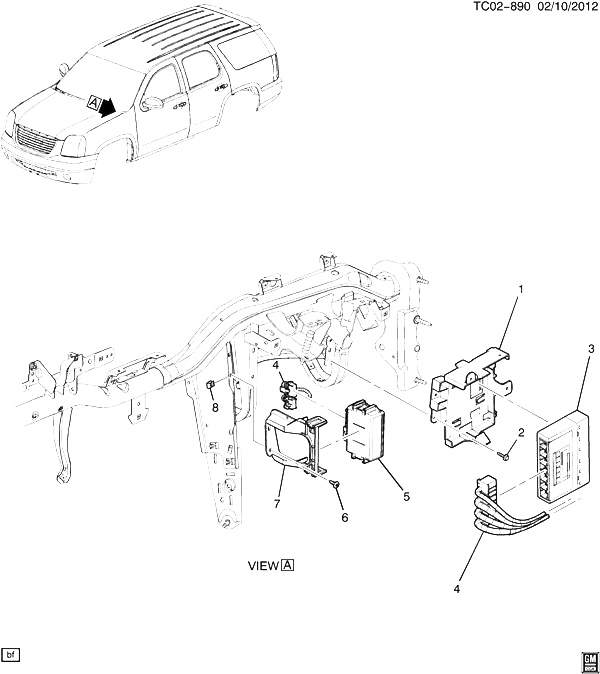

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15093913 |
BRACKET, BCM |
K1, 2, 3 |
2009-2013 |
01 |
| 002 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (BCM BRKT) (9.665) |
|
2009-2013 |
03 |
| 003 |
22846365 |
MODULE, BODY CONT (ACDelco #22846365) (LABELED 22846365, 22846364) |
K1, 2, 3 |
2013-2013 |
01 |
| 003 |
22846365 |
MODULE, BODY CONT (2.560) (ACDelco #22846365) (LABELED 22846365, 22846364) |
K1, 2, 3 |
2013-2013 |
01 |
| 003 |
22737275 |
MODULE, BODY CONT (ACDelco #22737275) (LABELED 22737275) |
K1, 2, 3 |
2013-2013 |
01 |
| 003 |
22737275 |
MODULE, BODY CONT (2.560) (ACDelco #22737275) (LABELED 22737275) |
K1, 2, 3 |
2013-2013 |
01 |
| 004 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2013 |
|
| 005 |
22787940 |
MODULE, AUX BODY CONT (ACDelco #22787940) |
K1 (T79) (EXPORT) |
2011-2013 |
01 |
| 006 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (BCM BRKT) |
|
2009-2013 |
02 |
| 007 |
20803814 |
BRACKET, AUX BODY CONT MDL |
K1 (06) (HP2, T89) (EXPORT) |
2009-2013 |
01 |
| 008 |
11513599 |
NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (BCM BRKT) (ACDelco #11513599) |
|
2009-2013 |
02 |
