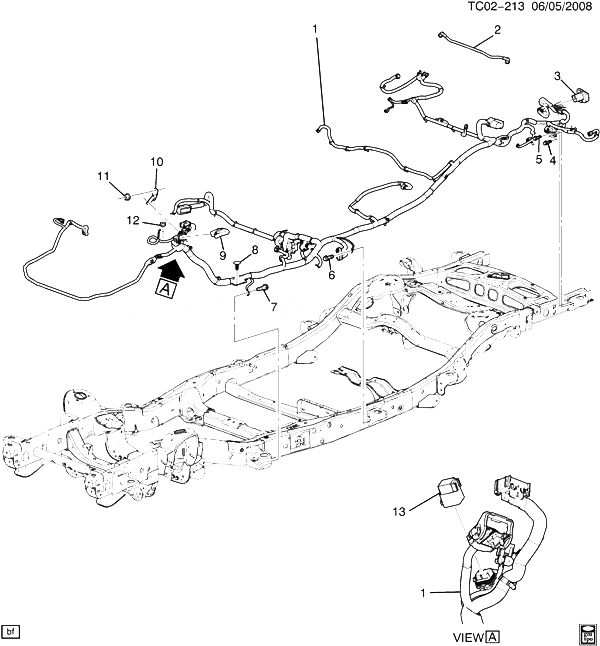

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 003 |
12191503 |
RECEPTACLE, TOW VEH ELEC (W/DOOR) |
CK1, 2 (06-36) (EXC PPV) |
2009-2013 |
01 |
| 004 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (TRLR WRG HARN GND) |
|
2009-2013 |
01 |
| 005 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (F/TNK FIL PIPE GND) |
|
2009-2013 |
01 |
| 006 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (FUEL SDR WRG HARN GND) |
|
2009-2013 |
01 |
| 007 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (ELEK BRK CONT WRG HARN GND) |
|
2009-2013 |
01 |
| 008 |
11588833 |
RETAINER, PUSH-IN, PLASTIC TREE, DIA 8.6, LENGTH 21.2, NYLON GMP.PA66.063, BLACK (CHAS RR WRG HARN) |
|
2009-2013 |
01 |
| 009 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2013 |
|
| 010 |
15045897 |
BRACKET, CHAS FRT WRG HARN |
CK1, 2, 3 |
2009-2013 |
01 |
| 011 |
21011332 |
NUT, HEX STAMPED TY DF FLG 14 (CHAS FRT WRG HARN BRKT) |
|
2009-2013 |
02 |
| 012 |
11609412 |
NUT, CHAS RR WRG HARN J/BLK LEAD (CONTAINS CONDUCTIVE FINISH FOR ELECTRICAL GROUND) (8.917) |
CK1, 2, 3 (JL1) |
2009-2013 |
01 |
| 013 |
12193601 |
RELAY, A/C CMPR (PART OF 1) (BLACK) (USED W/CONNECTOR 15306045 W/O BRKTS 5-WAY MALE) |
CK1, 2, 3 |
2011-2013 |
01 |
