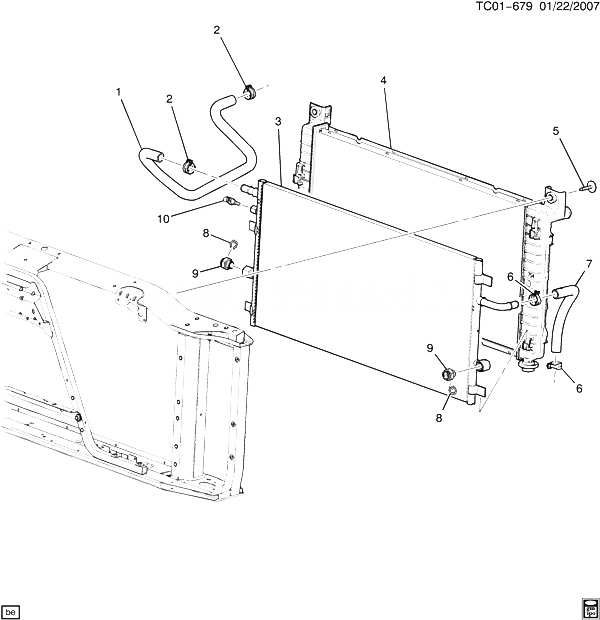

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25880374 |
HOSE, GEN CONT MDL COOL TK (SEE GROUP 01.000 CONTROL MODULE COOLING SYSTEM FOR DETAILED ILLUSTRATED VIEW) (INCLS 2) |
CK1 (LZ1) |
2010-2013 |
01 |
| 002 |
11570616 |
CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (PART OF 1) |
|
2008-2013 |
02 |
| 003 |
25936904 |
RADIATOR, GEN CONT MDL COOL (INCLS 8-10) |
CK1 (LZ1, M99) |
2010-2013 |
01 |
| 004 |
|
RADIATOR, (SEE GROUP 01.000 RADIATOR ASM FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 005 |
11516931 |
BOLT, FLAT WA METRIC HEX HD MACHINE, M8X1.25X50 (RAD UPR MT) |
|
2008-2013 |
02 |
| 006 |
11570616 |
CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (PART OF 7) |
|
2008-2013 |
02 |
| 007 |
19130060 |
HOSE, GEN CONT MDL COOL PMP (SEE GROUP 01.000 CONTROL MODULE COOLING SYSTEM FOR DETAILED ILLUSTRATED VIEW) (INCLS 6) |
CK1 (LZ1) |
2010-2013 |
01 |
| 008 |
88996648 |
RETAINER, TRANS FLUID CLR PIPE (PART OF 3, 9) (5/8) (E-STYLE) (WHITE RETAINER CLIP) |
CK1 (LZ1, M99) |
2010-2013 |
02 |
| 009 |
25956576 |
CONNECTOR, TRANS FLUID CLR PIPE (PART OF 3) (INCLS 8) (ACDelco #25956576) |
CK1 (LZ1, M99) |
2010-2013 |
02 |
| 010 |
25956574 |
SENSOR, ENG COOL TEMP (PART OF 3) (2-WAY MALE) |
CK1 (LZ1) |
2010-2013 |
01 |
| 010 |
25956574 |
SENSOR, ENG COOL TEMP (PART OF 3) (2-WAY MALE) (1.150) |
CK1 (LZ1) |
2010-2013 |
01 |
