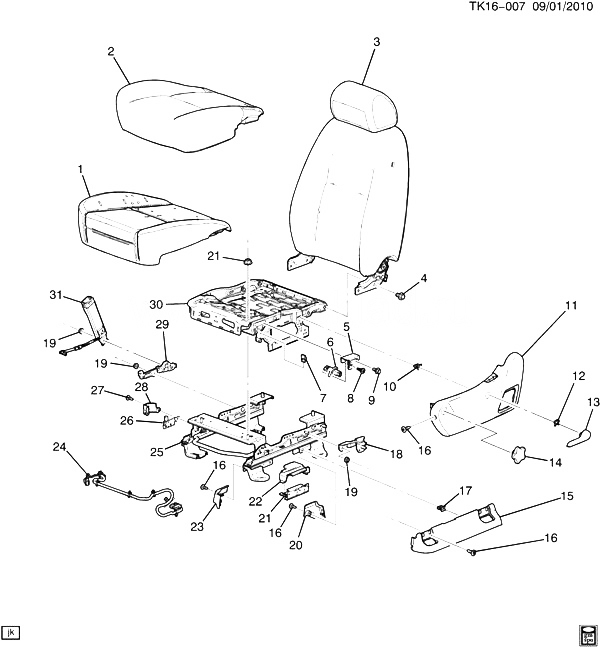

(TK16-007) 2010-2013 CK1,2(06-36) СИДЕНЬЕ ВОДИТЕЛЯ/SPLIT BENCH-CUSHION -C TRIMS(AZ3,EXC (AG1)) CHEVROLET TAHOE HYBRID (4WD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15243904 PAD, D/SEAT CUSH CK1, 2 (06) (AL0, AZ3, 19C, 33C) (EXC AG1) 2010-2013 01
002 20904108 COVER, D/SEAT CUSH (CASHMERE) CK1, 2, 3 (AZ3, 33C) 2010-2013 01
002 20833416 COVER, D/SEAT CUSH (EBONY) CK1, 2, 3 (AZ3, 19C) 2010-2013 01
003 PAD, D/SEAT BK (SEE GROUP 16.000 DRIVER SEAT/SPLIT BENCH-BACK DETAILED ILLUSTRATED VIEW) 2010-2013
004 11515764 BOLT, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (D/SEAT RECL) 2010-2013 08
005 25819555 BRACKET, D/SEAT LUMBAR SUPT ACTR CK1, 2, 3 2010-2013 01
006 25819556 ACTUATOR, D/SEAT LUMBAR SUPT CK1, 2, 3 2011-2013 01
007 11513599 NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (F/SEAT) (ACDelco #11513599) 2010-2013 02
008 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (F/SEAT ADJR ACTR) 2010-2013 02
009 BOLT, D/SEAT LUMBAR SUPT 2010-2013
010 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 11) 2010-2013 03
011 15232576 COVER, D/SEAT ADJR FIN (INCLS 10) (EBONY) (MANUAL) CK1, 2 (06) (AZ3, 19I) (EXC AG1) 2010-2013 01
011 15882421 COVER, D/SEAT ADJR FIN (INCLS 10) (COCOA) (BELT UTILITY) CK1 (06) (41I) 2010-2013 01
011 15219925 COVER, D/SEAT ADJR FIN (INCLS 10) (CASHMERE) (BELT UTILITY) CK1, 2 (06-36) (33I, 39I) 2011-2013 01
011 25826393 COVER, D/SEAT ADJR FIN (INCLS 10) (CASHMERE) (MANUAL) CK1, 2 (06) (AZ3, 33I) (EXC AG1) 2010-2013 01
012 RETAINER, F/SEAT ADJR HDL (PUSH ON) (PART OF 13) 2010-2013
014 15909613 KNOB, D/SEAT LUMBAR SUPT ACTR (CASHMERE) CK1, 2, 3 (AE7, AZ3, A95, 33I, 39I) 2010-2013 01
014 15909612 KNOB, D/SEAT LUMBAR SUPT ACTR (EBONY) CK1, 2, 3 (AE7, AZ3, A95, 19I, 88I) 2010-2013 01
015 15232584 COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 17) (EBONY) (OUTBOARD) CK1, 2 (06-36) (19I) 2010-2013 01
015 15232585 COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 17) (CASHMERE) (OUTBOARD) CK1, 2, 3 (33I, 39I) 2010-2013 01
016 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (F/SEAT) 2010-2013 05
017 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 15) 2010-2013 02
018 15845152 BRACKET, D/SEAT BELT (RETR SI) (O/B) CK1, 2, 3 (AL0) 2010-2013 01
019 11517996 NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (D/SEAT ADJR TOP PLT) (ACDelco #11517996) 2010-2013 09
020 15243864 COVER, D/SEAT OTR ADJR TRK RR FIN (EBONY) (INBOARD) CK1, 2 (06-36) (19I) 2010-2013 01
020 15243865 COVER, D/SEAT OTR ADJR TRK RR FIN (CASHMERE) (INBOARD) CK1, 2 (06-36) (33I, 39I) 2010-2013 01
021 15827134 BRACKET, D/SEAT (MAIN BODY HARNESS CONNECTION) CK1, 2, 3 2012-2013 01
022 20970791 COVER, WRG HARN CONN (EBONY) CK1, 2 (06-36) (X88) (EXC Y91) 2011-2013 01
023 15243850 COVER, D/SEAT INR ADJR TRK FRT FIN (EBONY) CK1, 2 (06-36) (19I) 2010-2013 01
023 15243851 COVER, D/SEAT INR ADJR TRK FRT FIN (CASHMERE) CK1, 2 (06-36) (33I, 39I) 2010-2013 01
024 22814905 HARNESS, D/SEAT ADJR WRG CK1, 2 (06) (AL0, AZ3, 19C, 33C) (EXC AG1) 2012-2013 01
025 25966536 ADJUSTER, D/SEAT (MANUAL) CK1, 2, 3 (AZ3) (EXC AG1) 2010-2013 01
026 25951880 SENSOR, AIRBAG D/SEAT POSN (MATING CONN W/LEADS USE 13577629) CK1, 2 (06-36) (AL0, AZ3, 19I, 33C) 2010-2013 01
027 88981918 BOLT, D/SEAT ADJR (M6X1X13.5) (16.714) CK1, 2, 3 2010-2013 06
028 20900194 COVER, AIRBAG D/SEAT POSN SEN CK1, 2 (06-36) 2010-2013 01
029 25916854 BRACKET, D/SEAT BELT (BKL SI) (I/B) (INCLDS BKL MOUNT STUD) CK1, 2, 3 2010-2013 01
030 22781434 FRAME, D/SEAT CUSH CK1, 2 (06-36) 2012-2013 01
031 19121538 BELT KIT, D/SEAT (BKL SI) (CASHMERE) CK1, 2 (06-36) (AZ3, 33I) 2010-2013 01
031 19121537 BELT KIT, D/SEAT (BKL SI) (EBONY) (CONNECTOR IS ON OUTBOARD SIDE OF BUCKLE) CK1, 2 (06-36) (AZ3, 19I) 2010-2013 01
