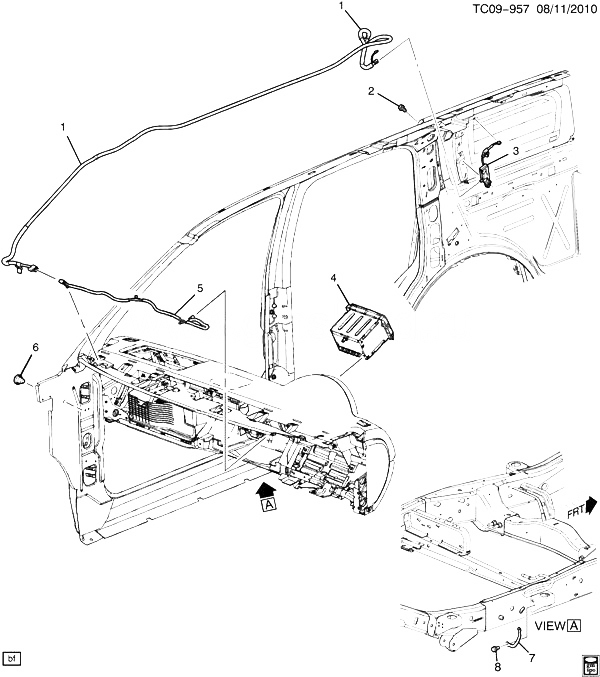

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25994421 |
CABLE, RDO ANT (ACDelco #25994421) |
CK107 (06) |
2010-2013 |
01 |
| 002 |
11561711 |
BOLT, RDO ANT MDL (9.665) |
CK1, 2 (06) (U84) |
2009-2013 |
01 |
| 003 |
25943786 |
MODULE, RDO ANT (ACDelco #25943786) |
CK107 (06) (U84) |
2010-2013 |
01 |
| 004 |
|
RADIO, AM/FM STEREO CLK AUDIO DISC PLYR (SEE GROUP 09.000 RADIO MOUNTING FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2013 |
|
| 004 |
|
RADIO, AM/FM STEREO NAVN (SEE GROUP 09.000 RADIO MOUNTING FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2013 |
|
| 005 |
15220450 |
CABLE, RDO ANT CBL EXTN RDO END (1250 MM) (ACDelco #15220450) |
CK1, 2 (06) (UM7, US8, UUI, UUJ, UUN, U1C, U84, X88, Z88) |
2012-2013 |
01 |
| 005 |
22870785 |
CABLE, RDO ANT CBL EXTN RDO END (ACDelco #22870785) (MODULE/ANTENNA END HAS BLACK MAKE FAKRA A) |
CK1, 2 (UYS, U84, X88, Z88) |
2012-2013 |
01 |
| 006 |
15045800 |
COVER, RDO ANT OPG |
CK1, 2 (06) (MSL, U84) |
2009-2013 |
01 |
| 007 |
15256489 |
WIRE, RDO NOISE SUPPR GND (ACDelco #15256489) |
CK107 (06) (UN9) |
2009-2013 |
01 |
| 008 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (RDO NOISE SUPPR GND) |
|
2009-2013 |
08 |
