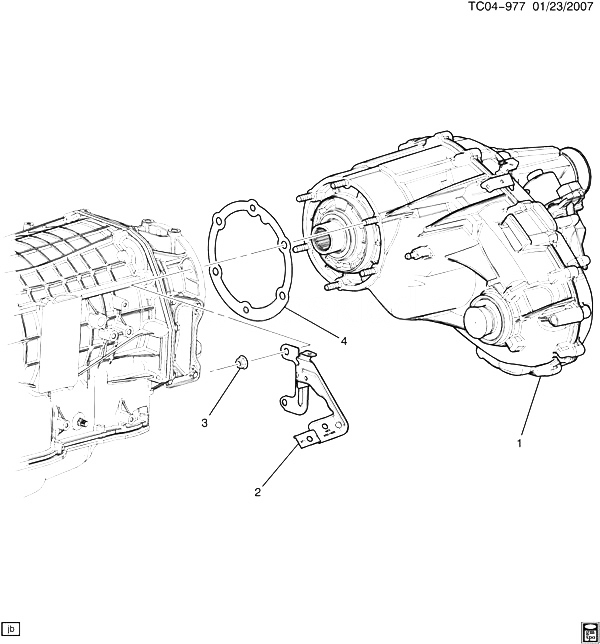

(TC04-977) 2008-2013 K107(06) КРЕПЛЕНИЕ РАЗДАТОЧНОЙ КОРОБКИ (TWO-MODE HYBRID M99) CHEVROLET TAHOE HYBRID (4WD) 2012
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 24256474 | CASE, TRFER (W/GEARS) (CODE PF, QB, MU, MK, FX, RL, SW, QT) (SEE GROUP 04.000 TRANSFER CASE FOR DETAILED ILLUSTRATED VIEW) | K1 (M99, NQH) | 2011-2013 | 01 |
| 002 | 15033698 | BRACKET, FUEL FEED RTN PIPE | K1 | 2008-2013 | 01 |
| 003 | 11514597 | NUT, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (TRFER CASE) (2.383) | 2008-2013 | 06 | |
| 004 | 24245110 | GASKET, TRFER CASE ADAP | K1 | 2011-2013 | 01 |
