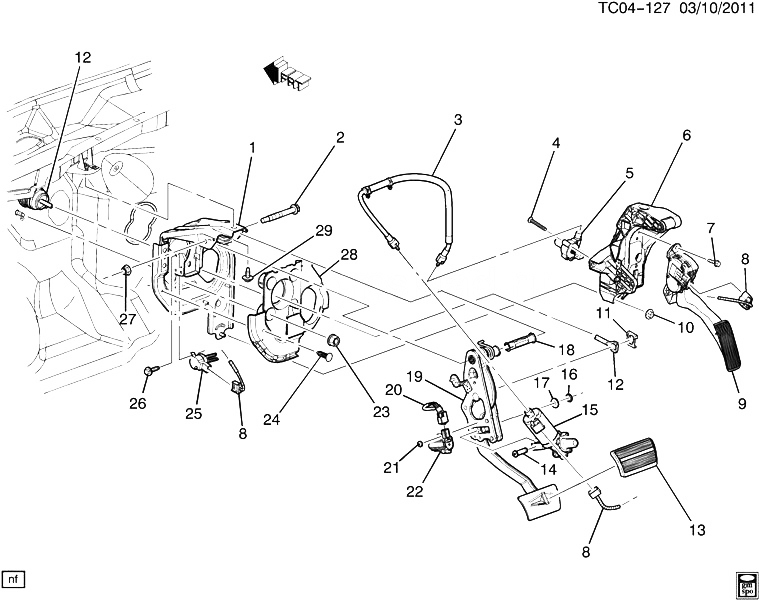

(TC04-127) 2012-2013 CK1,2 ПЕДАЛЬ ТОРМОЗА (POWER ADJUSTABLE PEDAL JF4, AN3) CHEVROLET TAHOE HYBRID (4WD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 22786035 BRACKET, BRK ACCEL PED (INCLS 24, 28) CK1 (AN3, JD9, JF3, JF4, JF7) 2012-2013 01
001 22786038 BRACKET, BRK ACCEL PED (INCLS 24, 28) CK1 (AN3, JF4, J92) 2012-2013 01
002 15000145 BOLT, BRK PED PIV (12X1.75X120, 25) CK1, 2, 3 2012-2013 01
003 CABLE, BRK PED POSITION (PART OF 6) 2012-2013
004 11562023 BOLT, ELEK THROT ACTR (PAN HEAD, M6X1X40, 15 THD, 12 OD, 10.9 STL, GM4277, HDR PT) CK1, 2, 3 2012-2013 02
005 15123616 ACTUATOR PKG, THROT CK1, 2, 3 (JF4) 2012-2012 01
007 11516424 BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (ACCEL PED LVR) 2012-2013 02
008 HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) 2012-2013
009 20972082 PEDAL, ACCEL CK1, 2, 3 2012-2013 01
010 15685170 NUT, HEX HD W/FL WA, M6X1, 5.5 THK, 9, 7111M, 2MM THK 19 OD WA, NYLOC (PART OF 6) (8.917) 2012-2013 03
011 11569844 RETAINER, BRK PED PUSH ROD (WITH BOLT) CK1, 2, 3 2012-2013 01
012 BOOSTER, P/B (SEE GROUP 04.000 BRAKE BOOSTER FOR DETAILED ILLUSTRATED VIEW) (4.901) 2012-2013
013 88982976 PAD, BRK PED (PART OF 19) CK1 (JD9, JF3, JF4, JF7, J92) 2012-2013 01
014 PIN, BRK PED BRKT (PART OF 19) 2012-2013
015 MOTOR, BRK ACCEL PED ADJR ACTR (PART OF 19) 2012-2013
016 NUT, BRK PED (PART OF 19) 2012-2013
017 WASHER, BRK PED (PART OF 19) 2012-2013
018 15200851 BUSHING, BRK PED PIV CK1 (AN3, JF4, J92) 2012-2013 01
019 22786030 PEDAL, BRK (INCLS 13-17, 20-22) CK1 (AN3, JF4, J92) 2012-2013 01
020 HARNESS, BRK PED POSN SEN (PART OF 19) 2012-2013
021 88982978 BOLT, BRK PED POSN SEN (PART OF 19) (TORGUE SCREW) CK1, 2, 3 2012-2013 02
022 25799118 SENSOR KIT, BRK PED POSN (PART OF 19) (ACDelco #25799118) CK1, 2, 3 (AN3, JF4) 2012-2013 01
023 11517996 NUT, P/B BOOS (M10X1.5, 11.2THK) (21.5 OD) (8.917) (ACDelco #11517996) CK1, 2, 3 2012-2013 04
024 RETAINER, BRK ACCEL CLU PED BRKT INSL (PUSH IN) (PART OF 1) 2012-2013
025 22791177 SENSOR, BRK PED POSN (ACDelco #22791177) CK1, 2, 3 2012-2012 01
026 11609999 BOLT, BRK PED POSN SEN (HXHD-M4X0.7X20, 13THD) (8.900) CK1, 2, 3 2012-2013 01
027 11514598 NUT, HEX FLANGE, M12X1.75X12, 26 OD, 10, 7111M, (BRK PED PIV) 2012-2013 01
028 INSULATOR, DA PNL (PART OF 1) 2012-2013
029 11517182 BOLT, BRK PED BRKT (M10X1.5X30, 15 THD) (8.900) CK1, 2, 3 2012-2013 01
