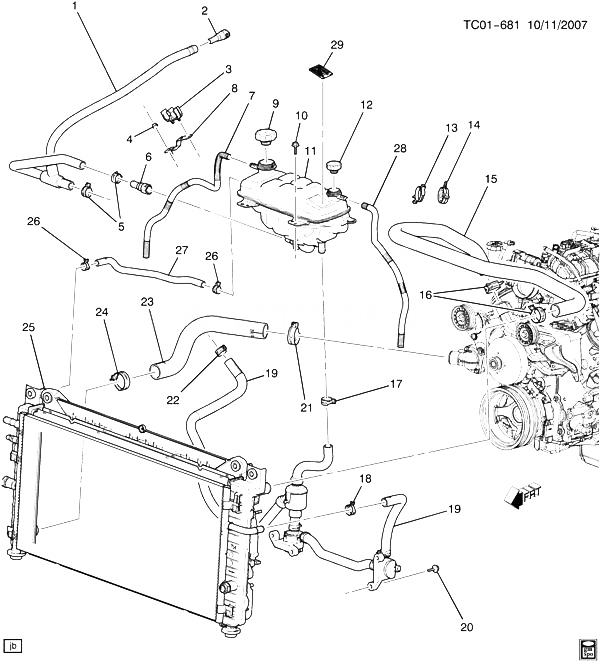

(TC01-681) 2010-2013 CK1(06-43) ШЛАНГИ РАДИАТОРА PART 1 (LZ1/6.0J, HYBRID HP2) CHEVROLET TAHOE HYBRID (4WD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25956572 HOSE, RAD SURGE TK OTLT (INCLS 2, 6) CK1 (LZ1) 2010-2013 01
002 25956573 CONNECTOR, RAD SURGE TK OTLT HOSE (PART OF 1) CK1 (LZ1) 2010-2013 01
003 15050765 CLIP, HTR HOSE (PART OF 8) (73.0MM WIDE) CK1, 2, 3 2008-2013 01
004 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (HTR HOSE CLIP BRKT) 2008-2013 01
005 11570616 CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (PCV OIL SEP HOSE) 2008-2013 02
006 25956573 CONNECTOR, RAD SURGE TK OTLT HOSE (PART OF 1) CK1 (LZ1) 2010-2013 01
007 25880382 HOSE, RAD SURGE TK OVFL CK1 (LZ1) 2010-2013 02
008 15826978 BRACKET, HTR HOSE CLIP (INCLS 3) CK1 (LZ1) 2010-2013 01
009 13502353 CAP, RAD SURGE TK CK1, 2, 3 2008-2013 01
010 22728347 BOLT, ENG COOL FAN SHRD CK1 2010-2013 AR
011 22797287 TANK, RAD SURGE (ACDelco #22797287) CK1 (LZ1) 2010-2013 01
012 15076936 CAP, GEN CONT MDL COOL TK (W/LABEL) CK1 (HP2) 2008-2013 01
013 11570618 CLAMP, SPRINGBAND, 42 NOMINAL DIA, 20 THK, STL, ROBO (RAD INL HOSE) 2008-2013 02
014 15041307 CLIP, RAD INL HOSE (3RD ONE FROM THERM HSG AT ENG RH SI) (BLACK) (FOR 37.1-44 DIA HOSE 12.8-15 DIA HOSEPRONG FOR 8.0 HOLE) (1.240) CK1 (LZ1) 2012-2013 01
015 25880389 HOSE, RAD INL CK1 (LZ1) 2010-2013 01
016 11570618 CLAMP, SPRINGBAND, 42 NOMINAL DIA, 20 THK, STL, ROBO (RAD INL HOSE) 2008-2013 02
017 15012561 CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (PART OF 19) (8.948) 2008-2013 01
018 15012561 CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (GEN CONT MDL COOL PMP HOSE) (8.948) 2008-2013 02
019 PUMP, GEN CONT MDL COOL (INCLS 17) (SEE GROUP 01.000 RADIATOR HOSES, PART 2 FOR DETAILED ILLUSTRATED VIEW) 2010-2013
020 22728347 BOLT, ENG COOL FAN SHRD CK1 2010-2013 AR
021 11562099 CLAMP, SPRINGBAND, NOMINAL DIA 49MM, 20 WIDTH, MATL 6298M, ROBO FINISH (PART OF 23) 2008-2013 01
022 11570616 CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (GEN CONT MDL COOL TK HOSE) 2008-2013 02
023 22827735 HOSE, RAD OTLT (INCLS 21, 24) CK1, 2, 3 (LC9, LMG, L20, L9H, LZ1, L94, LFT) 2011-2013 01
024 11562099 CLAMP, SPRINGBAND, NOMINAL DIA 49MM, 20 WIDTH, MATL 6298M, ROBO FINISH (PART OF 23) 2008-2013 01
025 RADIATOR, (SEE GROUP 01.000 RADIATOR ASM FOR DETAILED ILLUSTRATED VIEW) 2008-2013
026 15734741 CLAMP, SPRINGBAND, 20 NOMINAL DIA, 15 THK, GM6298M, GM6164M (RAD SURGE TK INL HOSE) 2008-2013 02
027 22827732 HOSE, RAD SURGE TK INL CK1 (LZ1) 2012-2013 01
028 25880382 HOSE, RAD SURGE TK OVFL CK1 (LZ1) 2010-2013 01
029 25802205 LABEL, RAD SURGE TK CAUTION (DOMESTIC) CK1 (LZ1) 2010-2013 01
029 20995992 LABEL, RAD SURGE TK CAUTION (EXPORT) CK1 (LZ1, CZ3) (EXPORT) 2010-2013 01
