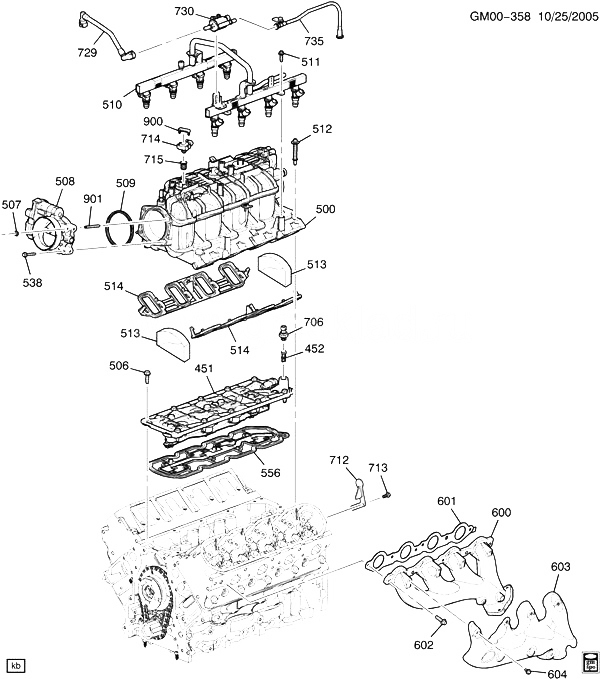

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 451 |
12580901 |
MANIFOLD, VLV LFTR OIL (INCLS 452, 506, 556) (INCLS CYL DEACTIVATION SOL, GASKET, FILTER, RETAINER, BOLTS, CAP) |
CK1 (LZ1) |
2010-2013 |
01 |
| 452 |
12585328 |
FILTER, VLV LFTR OIL (PART OF 451) (INCLS O-RING SEAL) |
CK1 (LZ1, L94) |
2010-2013 |
01 |
| 500 |
12638038 |
MANIFOLD, INT (INCLS 513) (ACDelco #12638038) |
CK1 (LMG, LC9, LZ1, L20) |
2010-2013 |
01 |
| 506 |
11518075 |
BOLT, HFH, THD 22, OD 17, 8.8, GMW14C-PT, HDR POINT (PART OF 451) |
|
2010-2013 |
10 |
| 507 |
|
NUT, THROT BODY (*KIT1) |
|
2010-2013 |
|
| 508 |
12629992 |
BODY, THROT (W/THROT ACTR) (SEE GROUP 03.000 THROTTLE BODY FOR DETAILED ILLUSTRATED VIEW) (ACDelco #217-3151) |
CK1 (LZ1, M99) |
2010-2013 |
01 |
| 509 |
12589235 |
SEAL, THROT BODY (ACDelco #217-2424) |
CK1 (LZ1, L94, L20) |
2010-2013 |
01 |
| 510 |
|
INJECTOR, SEQ M/PORT FUEL (W/FUEL RL) (SEE GROUP 03.000 FUEL INJECTOR RAIL FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 511 |
12580910 |
BOLT, F/INJR DRVR MDL |
CK1 (L20, LZ1, L94) |
2010-2013 |
04 |
| 512 |
12575384 |
BOLT, INT MANIF |
CK1 (LZ1, M99) |
2010-2013 |
10 |
| 513 |
|
INSULATOR KIT, INT MANIF (PART OF 500) |
|
2010-2013 |
|
| 514 |
89060413 |
GASKET KIT, INT MANIF (ACDelco #89060413) |
CK1 (LZ1, M99) |
2010-2013 |
01 |
| 538 |
|
BOLT, THROT BODY (*KIT1) |
|
2010-2013 |
|
| 556 |
89017690 |
GASKET, VLV LFTR OIL UPR MANIF (PART OF 451) (W/O THE CENTER PORTION) |
CK1 (LZ1) |
2010-2013 |
01 |
| 600 |
12616285 |
MANIFOLD, EXH (INCLS 603, 604) (INCLS SHIELD, BOLTS) |
CK1 (LZ1, M99) |
2010-2013 |
01 |
| 600 |
12616286 |
MANIFOLD, EXH (INCLS 603, 604) (INCLS SHIELD, BOLTS) |
CK1 (LZ1, M99) |
2010-2013 |
01 |
| 601 |
12617944 |
GASKET, EXH MANIF (ACDelco #12617944) |
CK1 (L20, LZ1, L94) |
2010-2013 |
02 |
| 602 |
11518860 |
BOLT, HFH, M8X1.25X30, 20.9 THD, 18 O.D., 10.9, GMW3179 CODE G, GM6194M (EXH MANIF FLG) |
|
2010-2013 |
12 |
| 603 |
12562243 |
SHIELD, EXH MANIF HT (PART OF 600) |
CK1 (LZ1, M99) |
2010-2013 |
01 |
| 603 |
12562244 |
SHIELD, EXH MANIF HT (PART OF 600) |
CK1 (LZ1, M99) |
2010-2013 |
01 |
| 604 |
11519840 |
BOLT, HFH, M6X1X12.3, 6.3 THD, 14.2 OD, 10.9, GMW3359, MACH, MAT-PT (PART OF 600) |
|
2010-2013 |
05 |
| 706 |
12621234 |
SENSOR, ENG OIL PRESS (ACDelco #213-4411) |
CK1 (LZ1, M99) |
2010-2013 |
01 |
| 712 |
12578463 |
STOP, F/INJN FUEL RL |
CK1 (L20, LZ1, L94) |
2010-2013 |
01 |
| 713 |
11515764 |
BOLT, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (F/INJN FUEL RL STOP) |
|
2010-2013 |
01 |
| 714 |
12644228 |
SENSOR, MAP (INCLS 715) (ACDelco #12644228) |
CK1 (LZ1, M99) |
2010-2013 |
01 |
| 715 |
|
SEAL, MAP SEN (PART OF 714) |
|
2010-2013 |
|
| 729 |
12574897 |
HARNESS, EVAP EMIS CNSTR |
CK1, 2, 3 |
2010-2013 |
01 |
| 730 |
12597567 |
VALVE, EVAP EMIS CNSTR PURGE SOL (VALVE ONLY) (USE T/W 12579283 BRKT) (ACDelco #214-1680) |
CK1 (LZ1, M99) |
2010-2013 |
01 |
| 735 |
12599895 |
TUBE, EVAP EMIS CNSTR PURGE |
CK1 (LZ1) |
2010-2013 |
01 |
| 900 |
12615934 |
RETAINER, MAP SEN |
CK1, 2, 3 |
2010-2013 |
01 |
| 901 |
|
STUD, THROT BODY (*KIT1) |
|
2010-2013 |
|
| K01 |
89017591 |
BOLT KIT, THROT BODY (INCLS BOLT, STUD, NUT) (INCLS 507, 538, 901) |
CK1 (L20, LZ1) |
2010-2013 |
02 |
