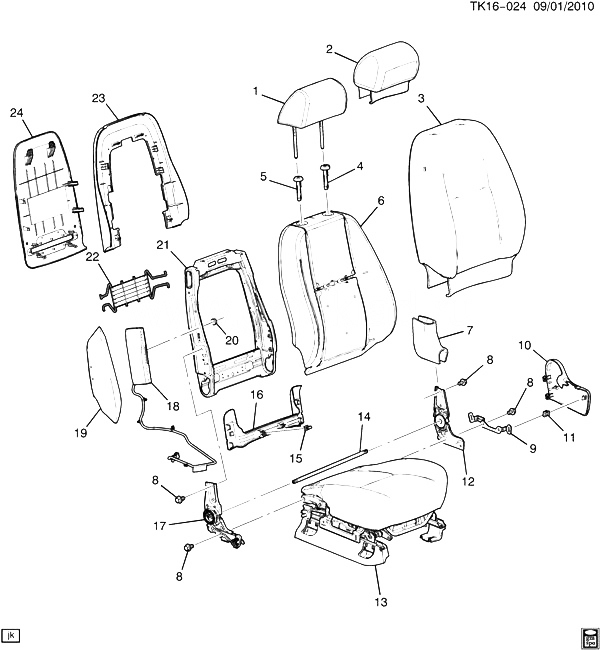

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20998437 |
RESTRAINT, P/SEAT HD (INCLS 2) (EBONY) |
CK1, 2, 3 (AZ3, 19C) |
2011-2012 |
01 |
| 001 |
20998438 |
RESTRAINT, P/SEAT HD (INCLS 2) (CASHMERE) |
CK1, 2, 3 (AZ3, 33C) |
2011-2012 |
01 |
| 001 |
20998441 |
RESTRAINT, P/SEAT HD (INCLS 2) (EBONY) |
CK1, 2 (06-36) (AZ3, 19V) |
2011-2012 |
01 |
| 002 |
|
COVER, P/SEAT H/RST (PART OF 1) |
|
2010-2013 |
|
| 003 |
20772253 |
COVER, P/SEAT BK (EBONY) |
CK1, 2 (06) (AL0, AZ3, 19V) (EXC AG1) |
2010-2013 |
01 |
| 003 |
20904125 |
COVER, P/SEAT BK (CASHMERE) (USE ON TRUCKS WITH SIAB) |
CK1, 2 (06-36) (AZ3, 33C) |
2010-2013 |
01 |
| 003 |
20833417 |
COVER, P/SEAT BK (EBONY) (USE ON TRUCKS WITH SIAB) |
CK1, 2 (06-36) (AZ3, 19C) |
2011-2013 |
01 |
| 004 |
20912675 |
GUIDE, F/SEAT H/RST (CASHMERE) (W/BUTTON) |
CK1, 2, 3 (33I, 39I) |
2010-2012 |
02 |
| 004 |
15279347 |
GUIDE, F/SEAT H/RST (EBONY) (W/BUTTON) |
CK1, 2, 3 (19I) |
2010-2012 |
02 |
| 005 |
20912679 |
GUIDE, D/SEAT H/RST (EBONY) (W/O BUTTON) |
CK1, 2 (06-36) (19I) |
2010-2012 |
02 |
| 005 |
20912680 |
GUIDE, F/SEAT H/RST (CASHMERE) (W/O BUTTON) |
CK1, 2 (06-36) (33I, 39I) |
2010-2012 |
02 |
| 006 |
20772175 |
PAD, P/SEAT BK |
CK1, 2 (06-36) (AL0, AZ3) |
2010-2013 |
01 |
| 007 |
15855911 |
PROTECTOR, P/SEAT RECL FIN CVR (EBONY) (RECL CVR CARPET BOOT 40% RH) |
CK1, 2, 3 |
2010-2013 |
02 |
| 007 |
15855909 |
PROTECTOR, P/SEAT RECL FIN CVR (EBONY) (RECL CVR CARPET BOOT 40% LH) |
CK1, 2, 3 |
2010-2013 |
02 |
| 008 |
11515764 |
BOLT, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (P/SEAT RECL) |
|
2010-2013 |
08 |
| 009 |
15827137 |
BRACKET, P/SEAT RECL (INBOARD) |
CK1, 2, 3 |
2010-2013 |
01 |
| 010 |
15243828 |
COVER, P/SEAT INR RECL FIN (INCLS 11) (EBONY) (INBOARD) |
CK1, 2 (06-36) (19I) |
2010-2013 |
01 |
| 010 |
15243829 |
COVER, P/SEAT INR RECL FIN (INCLS 11) (CASHMERE) (INBOARD) |
CK1, 2 (06-36) (33I, 39I) |
2010-2013 |
01 |
| 011 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 10) |
|
2010-2013 |
02 |
| 012 |
|
RECLINER, P/SEAT INR (PART OF 21) |
|
2010-2013 |
|
| 013 |
|
PAD, P/SEAT CUSH (SEE GROUP 16.000 PASSENGER SEAT/SPLIT BENCH-CUSHION FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 014 |
|
RECLINER, P/SEAT (PART OF 21) |
|
2010-2013 |
|
| 015 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 16) |
|
2010-2013 |
04 |
| 016 |
15827129 |
COVER, F/SEAT RSR FIN (INCLS 15) (EBONY) (RIGHT LEFT TOE KICK) |
CK1, 2, 3 (19I, 88I) |
2010-2013 |
02 |
| 016 |
15827130 |
COVER, F/SEAT RSR FIN (INCLS 15) (CASHMERE) (RIGHT LEFT TOE KICK) |
CK1, 2, 3 (33I, 39I) |
2010-2013 |
02 |
| 017 |
|
RECLINER, P/SEAT OTR (PART OF 21) |
|
2010-2013 |
|
| 018 |
20997498 |
AIRBAG, P/SEAT SI |
CK1, 2 |
2010-2011 |
01 |
| 019 |
20824892 |
GUIDE, P/SEAT SI AIRBAG MDL |
CK1, 2, 3 |
2011-2013 |
01 |
| 020 |
11516075 |
NUT, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (F/SEAT) |
|
2010-2013 |
05 |
| 021 |
20951084 |
FRAME, P/SEAT BK (INCLS 12, 14, 17, 22) (W/MAN RECLINERS USE W/SIAB) |
CK1, 2 (06-36) (AZ3) |
2011-2013 |
01 |
| 022 |
20824566 |
SUPPORT, P/SEAT LUMBAR (PART OF 21) |
CK1, 2 (AL0, AZ3) |
2010-2013 |
01 |
| 023 |
20823362 |
BEZEL, F/SEAT BK OPG RR |
CK1, 2, 3 |
2010-2013 |
01 |
| 024 |
20926189 |
PANEL, P/SEAT BK FIN (CASHMERE) |
CK1, 2 (06-36) (AZ3, 33C) |
2011-2013 |
01 |
| 024 |
20926188 |
PANEL, P/SEAT BK FIN (EBONY) (CLOTH) (W/CLOTH MAP POCKET) |
CK1, 2 (06-36) (AL0, AZ3, 19C) |
2011-2013 |
01 |
| 024 |
20926203 |
PANEL, P/SEAT BK FIN (EBONY) (W/MAP POCKET) (VINYL) |
CK1, 2 (06) (AL0, AZ3, 19I) |
2010-2013 |
01 |
