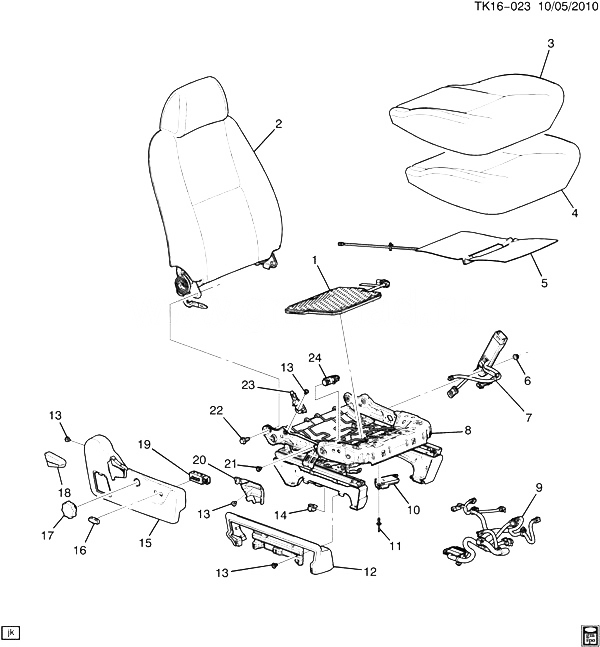

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25983391 |
MODULE KIT, AIRBAG P/SEAT SUPPRESSION (INCLS 4, 10, 11) |
CK1 (06) |
2010-2011 |
01 |
| 002 |
25983263 |
PAD, P/SEAT BK (SEE GROUP 16.000 PASSENGER SEAT/BUCKET-BACK FOR DETAILED ILLUSTRATED VIEW) |
CK1 (06) (A95, HP2) |
2010-2011 |
01 |
| 002 |
20772175 |
PAD, P/SEAT BK (SEE GROUP 16.000 PASSENGER SEAT/BUCKET-BACK FOR DETAILED ILLUSTRATED VIEW) |
CK1, 2 (06-36) (AG1, AG2, A95, 193, 19V) |
2010-2011 |
01 |
| 003 |
25983366 |
COVER, P/SEAT CUSH (INCLS 5) (EBONY) |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) |
2010-2011 |
01 |
| 003 |
25983368 |
COVER, P/SEAT CUSH (INCLS 5) (TITANIUM) |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) |
2010-2011 |
01 |
| 003 |
25983367 |
COVER, P/SEAT CUSH (INCLS 5) (CASHMERE) |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 333) |
2010-2011 |
01 |
| 004 |
|
PAD, P/SEAT CUSH (PART OF 1) |
|
2010-2011 |
|
| 005 |
|
HEATER, P/SEAT CUSH (PART OF 3) |
|
2010-2011 |
|
| 006 |
15035434 |
NUT, F/SEAT (M10X1.5X10.8) (FLANGE NUT) (16.679) |
CK1, 2, 3 |
2010-2011 |
04 |
| 007 |
19178408 |
BELT KIT, P/SEAT (BKL SI) (W/PRE-TENSR) (EBONY) |
CK1 (06) (A95, AG2, AL0, AM1, HP2, 193) |
2010-2011 |
01 |
| 007 |
19178410 |
BELT KIT, P/SEAT (BKL SI) (W/PRE-TENSR) (TITANIUM) |
CK1 (06) (A95, AG2, AL0, AM1, HP2, 833) |
2010-2011 |
01 |
| 007 |
19178409 |
BELT KIT, P/SEAT (BKL SI) (W/PRE-TENSR) (CASHMERE) |
CK1 (06) (A95, AG2, AL0, AM1, HP2, 333) |
2010-2011 |
01 |
| 008 |
25944101 |
ADJUSTER, P/SEAT (INCLS 21, 24) (POWER 6-WAY) (INCLS MOTORS) (W/O MEMORY) |
CK1 (06) (A95, HP2) |
2010-2011 |
01 |
| 009 |
25892835 |
HARNESS, P/SEAT WRG |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 193, 333, 833) |
2010-2011 |
01 |
| 010 |
|
MODULE, AIRBAG P/SEAT SUPPRESSION (PART OF 1) |
|
2010-2011 |
|
| 011 |
11516807 |
RIVET, POP, 4.8 DIA, 19.9 LONG, 16 OD, 5-5.25 HOLE, 1-9 GRIP RANGE, AL, BLACK (PART OF 1) |
|
2010-2011 |
02 |
| 012 |
25993429 |
COVER, P/SEAT ADJR BOLT FIN (EBONY) |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) |
2010-2011 |
01 |
| 012 |
25993431 |
COVER, P/SEAT ADJR BOLT FIN (TITANIUM) |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) |
2010-2011 |
01 |
| 012 |
25993430 |
COVER, P/SEAT ADJR BOLT FIN (CASHMERE) |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 333) |
2010-2011 |
01 |
| 013 |
11610936 |
SCREW, PAN, M4X0.7X9, 7 THD, 10 OD, 1018, GMW3044, TAPPING (P/SEAT) |
|
2010-2011 |
14 |
| 014 |
11562261 |
CLIP, P/SEAT WRG |
CK1 (AG2, AL0, AM1, A95, HP2, 193, 333, 833) |
2010-2011 |
02 |
| 015 |
25886549 |
COVER, P/SEAT CUSH OTR FIN PNL (EBONY) |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) |
2010-2011 |
01 |
| 015 |
25886551 |
COVER, P/SEAT CUSH OTR FIN PNL (TITANIUM) (16.720) |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) |
2010-2011 |
01 |
| 015 |
25886550 |
COVER, P/SEAT CUSH OTR FIN PNL (CASHMERE) (16.720) |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 333) |
2010-2011 |
01 |
| 016 |
10325879 |
KNOB, P/SEAT ADJR SW (EBONY) (11.558) |
CK1, 2 (06-36) (19I, 22I, 84I) |
2010-2011 |
01 |
| 016 |
15222981 |
KNOB, P/SEAT ADJR SW (TITANIUM) (11.558) |
CK1, 2 (06-36) (83I) |
2010-2011 |
01 |
| 016 |
15222980 |
KNOB, P/SEAT ADJR SW (CASHMERE) (11.558) |
CK1, 2 (06-36) (33I) |
2010-2011 |
01 |
| 017 |
25830335 |
LEVER, P/SEAT LUMBAR SUPT ACTR (CASHMERE) (16.716) |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 313, 333) |
2010-2011 |
01 |
| 017 |
25830336 |
LEVER, P/SEAT LUMBAR SUPT ACTR (TITANIUM) (16.716) |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) |
2010-2011 |
01 |
| 017 |
25830334 |
LEVER, P/SEAT LUMBAR SUPT ACTR (EBONY) (16.716) |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) |
2010-2011 |
01 |
| 018 |
25830532 |
HANDLE, P/SEAT RECL (EBONY) |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) |
2010-2011 |
01 |
| 018 |
25830534 |
HANDLE, P/SEAT RECL (TITANIUM) |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) |
2010-2011 |
01 |
| 018 |
25830533 |
HANDLE, P/SEAT RECL (CASHMERE) |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 333) |
2010-2011 |
01 |
| 018 |
15232598 |
HANDLE, P/SEAT RECL (EBONY) |
CK1, 2 (06-36) (A95, 19I, 88I) |
2010-2011 |
01 |
| 018 |
15232599 |
HANDLE, P/SEAT RECL (CASHMERE) |
CK1, 2, 3 (A95, 33I, 39I) |
2011-2011 |
01 |
| 018 |
15232600 |
HANDLE, P/SEAT RECL (TITANIUM) |
CK1, 2 (06-36) (A95, 83I) |
2011-2011 |
01 |
| 018 |
15232599 |
HANDLE, P/SEAT RECL (CASHMERE) |
CK1, 2, 3 (A95, 31I) |
2011-2011 |
01 |
| 019 |
12451495 |
SWITCH, P/SEAT ADJR (6-WAY) (11.558) |
CK1, 2 (06) (AE7, AZ3, A95, AG2) |
2010-2011 |
01 |
| 020 |
25830503 |
COVER, P/SEAT INR ADJR TRK RR FIN (EBONY) |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) |
2010-2011 |
01 |
| 020 |
25830505 |
COVER, P/SEAT INR ADJR TRK RR FIN (TITANIUM) |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) |
2010-2011 |
01 |
| 020 |
25830504 |
COVER, P/SEAT INR ADJR TRK RR FIN (CASHMERE) |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 333) |
2010-2011 |
01 |
| 021 |
|
BOLT, P/SEAT ADJR TRK RLR (PART OF 8) |
|
2010-2011 |
|
| 022 |
11561962 |
BOLT, P/SEAT (M10X1.25X25) (11.377) |
CK1 (HP2) |
2010-2011 |
04 |
| 023 |
25830383 |
COVER, P/SEAT RECL FIN (EBONY) |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) |
2010-2011 |
01 |
| 023 |
25830385 |
COVER, P/SEAT RECL FIN (TITANIUM) |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) |
2010-2011 |
01 |
| 023 |
25830384 |
COVER, P/SEAT RECL FIN (CASHMERE) |
CK1 (06) (AG2, AL0, AM1, A95, HP2, 333) |
2010-2011 |
01 |
| 024 |
25902538 |
ACTUATOR, F/SEAT LUMBAR SUPT (PART OF 8) |
CK1 (06) (HP2) |
2010-2011 |
01 |
