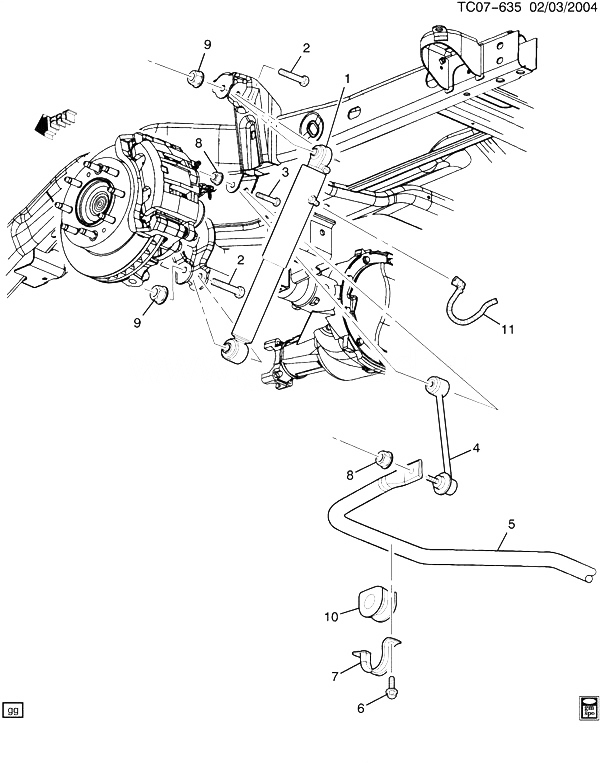

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25871432 |
ABSORBER, RR LVLG SHK (MATING CONN W/LEADS USE 15305901) (ACDelco #25871432) |
CK1 (06-36) (Z95) |
2008-2013 |
02 |
| 001 |
20955405 |
ABSORBER, RR SHK (ACDelco #540-627) |
CK107 (06) (HP2, ZW7) |
2011-2011 |
02 |
| 001 |
20955408 |
ABSORBER, RR SHK (ACDelco #540-630) |
K107 (06) (Z71) |
2011-2013 |
02 |
| 001 |
19158785 |
ABSORBER, RR SHK (ACDelco #530-387) (PREMIUM GAS CHARGED) |
K107 (06) (LMG, LZ1) |
2011-2011 |
02 |
| 001 |
19300040 |
ABSORBER, RR LVLG SHK (BLACK) (ACDelco #580-444) |
K107 (06) (Z55) (EXC Y91) |
2007-2013 |
02 |
| 001 |
19300070 |
ABSORBER, RR LVLG SHK (BLACK) (ACDelco #580-450) |
K107 (06) (Y91, Z55) |
2009-2013 |
02 |
| 002 |
11611959 |
BOLT, HEX W/CON WA, M14X2X85, 45 THD, 28 OD, 10.9, GMW3359 (RR S/ABS) |
|
2007-2013 |
04 |
| 003 |
11609243 |
BOLT, M12X1.75X65 (RR STAB SHF INSL CLA) |
|
2007-2013 |
02 |
| 004 |
15257472 |
LINK, RR STAB SHF |
CK1 (06-36) |
2007-2013 |
02 |
| 005 |
22809843 |
SHAFT, RR STAB |
CK107 (06) |
2007-2013 |
01 |
| 006 |
11518294 |
BOLT, HFH, M10X1.5X29.5, 17.08 OD, 6202M, 4435M, TAP, TR-PT (RR STAB SHF INSL CLA) |
|
2007-2013 |
04 |
| 007 |
88891781 |
CLAMP, RR STAB SHF INSL |
CK1 (06-36) |
2007-2013 |
02 |
| 008 |
11516078 |
NUT, HFH, M12X1.75, 14THK, 25 O.D., 10, PZOR (RR STAB SHF LINK) |
|
2007-2013 |
04 |
| 009 |
11516382 |
NUT, HFH LK M14X2X15, 28 OD 10 7111M (RR S/ABS) |
|
2007-2013 |
04 |
| 010 |
14071381 |
INSULATOR, RR STAB SHF (RUBBER) (28.6MM STAB BAR) |
CK1 (06-36) |
2007-2013 |
02 |
| 011 |
|
TUBE, RR S/ABS AIR (SEE GROUP 02.000 WIRING HARNESS/CHASSIS FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
