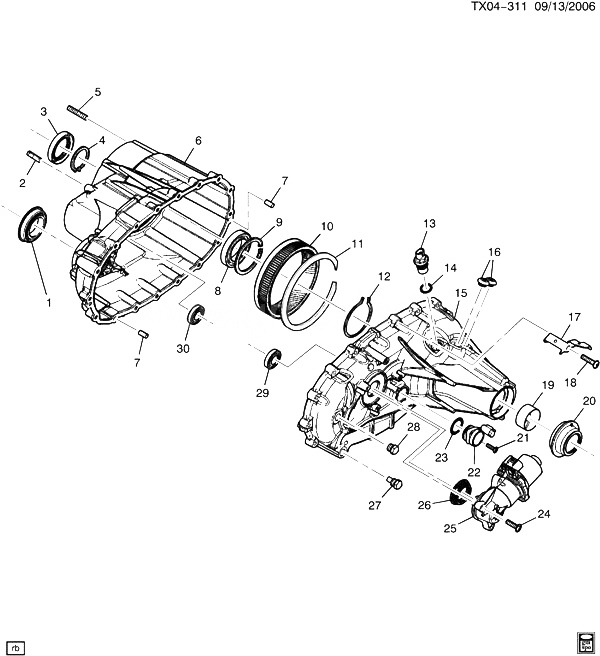

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
19133157 |
SEAL, TRFER CASE FRT OUTPUT SHF |
K1 (NQH) |
2007-2013 |
01 |
| 002 |
19133166 |
VENT, TRFER CASE |
K1 (NQG, NQH) |
2007-2013 |
01 |
| 003 |
19133155 |
SEAL, TRFER CASE INPUT SHF (DOUBLE LIP) (USE W/M30 M70 MW7 M99 ML9 MYD) |
K1 (M99, NQH) |
2008-2011 |
01 |
| 004 |
19133024 |
RING, TRFER CASE INPUT GR BRG OTR RET |
K1 (M99, NQH) |
2010-2013 |
01 |
| 005 |
19133005 |
STUD, TRFER CASE (PART OF 6) |
K1, 2 (NQH, NQG) |
2007-2013 |
06 |
| 006 |
19299077 |
CASE, TRFER (FRT HALF) (INCLS 5, 7-11, 30) (REF TSB 12-04-21-001A FOR DES STORY BEFORE ORDERING) (FOR 1ST DES SEE 19132998) |
K1, 2 (NQH) (2ND DES) |
2007-2013 |
01 |
| 006 |
19132998 |
CASE, TRFER (FRT HALF) (INCLS 5, 7-11, 30) (REF TSB 12-04-21-001A FOR DES STORY BEFORE ORDERING) (FOR 2ND DES SEE 19299077) |
K1, 2 (NQH) (1ST DES) |
2007-2013 |
01 |
| 007 |
19133004 |
PIN, TRFER CASE HALF LOC (PART OF 6) |
K1, 2 (NQH) |
2007-2013 |
02 |
| 008 |
19133006 |
BEARING, TRFER CASE INPUT SHF (PART OF 6) (ACDelco #19133006) |
K1, 2 (NQH) |
2007-2013 |
01 |
| 009 |
19133007 |
RING, TRFER CASE INPUT SHF INR RET (PART OF 6) |
K1, 2 (NQH) |
2007-2013 |
01 |
| 010 |
|
GEAR, TRFER CASE HIGH/LOW INTL (PART OF 6) |
|
2008-2013 |
|
| 011 |
19133009 |
RING, TRFER CASE HIGH/LOW INT GR RET (PART OF 6) (FOR 2007-2013 BK1 NQG NQH ONLY-REF TSB 12-04-21-001 BEFORE ORDERING) (FOR 2ND DES SEE 14037953) |
K1 (NQG, NQH) (1ST DES) |
2007-2013 |
01 |
| 011 |
14037953 |
RING, TRFER CASE HIGH/LOW INT GR RET (PART OF 6) (ACDelco #14037953) (FOR 2007-2013 BK1 NQG NQH ONLY-REF TSB 12-04-21-001 BEFORE ORDERING) (FOR 1ST DES SEE 19133009) |
K1 (NQG, NQH) (2ND DES) |
2007-2013 |
01 |
| 012 |
19168238 |
RING, TRFER CASE RR OUTPUT SHF RR BRG OTR RET |
K1 (NQH) |
2007-2013 |
01 |
| 013 |
12376520 |
SENSOR, VEH SPD (SCREW IN WITH O-RING) (INCLS 14) (2-WAY MALE) (MATING CONN W/LEADS USE 88987993) (ACDelco #213-347) |
K1 (M99, NQH) |
2009-2013 |
01 |
| 014 |
19133158 |
SEAL, VEH SPD SEN (O RING) (PART OF 13) (I.D. 20MM) (ACDelco #19133158) |
K1, 2 (NQH) |
2011-2013 |
01 |
| 015 |
19133139 |
CASE, TRFER (RR HALF) (INCLS 19) |
K1, 2 (MYC, M30, M99, NQH) |
2009-2013 |
01 |
| 016 |
19133165 |
PLUG, TRFER CASE ACC HOLE |
K1 (NQG, NQH) |
2007-2013 |
02 |
| 017 |
19133154 |
BRACKET, TRFER CASE (HARNESS-A) |
K1, 2 (NQH) |
2007-2013 |
01 |
| 018 |
19169068 |
BOLT, TRFER CASE HALF (W/O WAX) |
K1, 2 (NQH) |
2007-2012 |
17 |
| 019 |
15665313 |
BUSHING, TRFER CASE RR EXTN (PART OF 15) (4.319) (ACDelco #15665313) |
K1 (NQH) |
2009-2013 |
01 |
| 020 |
19133150 |
SEAL, TRFER CASE RR OUTPUT SHF |
K1 (NQG, NQH) |
2007-2011 |
01 |
| 021 |
19133161 |
BOLT, TRFER CASE TWO/FOUR WHL DRV ACTR SEN |
K1, 2 (NQH) |
2008-2013 |
02 |
| 022 |
19133159 |
SENSOR, TRFER CASE TWO/FOUR WHL DRV ACTR POSN (INCLS 23) |
K1, 2 (NQH) |
2008-2012 |
01 |
| 023 |
19133160 |
SEAL, TRFER CASE TWO/FOUR WHL DRV ACTR POSN SEN (PART OF 22) |
K1 (M99, NQH) |
2011-2013 |
01 |
| 024 |
19179124 |
BOLT, TRFER CASE TWO/FOUR WHL DRV ACTR (ACDelco #19179124) |
K1, 2 (NQH) |
2008-2013 |
04 |
| 025 |
19258696 |
ACTUATOR, TRFER CASE TWO/FOUR WHL DRV (INCLS 26) (ACDelco #19258696) |
K1 (M99, NQH) |
2008-2013 |
01 |
| 026 |
|
SEAL, TRFER CASE TWO/FOUR WHL DRV ACTR (PART OF 25) |
|
2008-2013 |
|
| 027 |
19133162 |
PLUG, TRFER CASE OIL DRN |
K1 (NQG, NQH) |
2007-2011 |
01 |
| 028 |
15032997 |
PLUG, TRFER CASE OIL FILL |
K1, 2 (NQH) |
2008-2013 |
01 |
| 029 |
19133010 |
BEARING, TRFER CASE FOUR WHL DRV ACTR LVR SHF |
K1, 2 (NQH) |
2008-2013 |
02 |
| 030 |
19133010 |
BEARING, TRFER CASE FOUR WHL DRV ACTR LVR SHF (PART OF 6) |
K1, 2 (NQH) |
2008-2013 |
02 |
