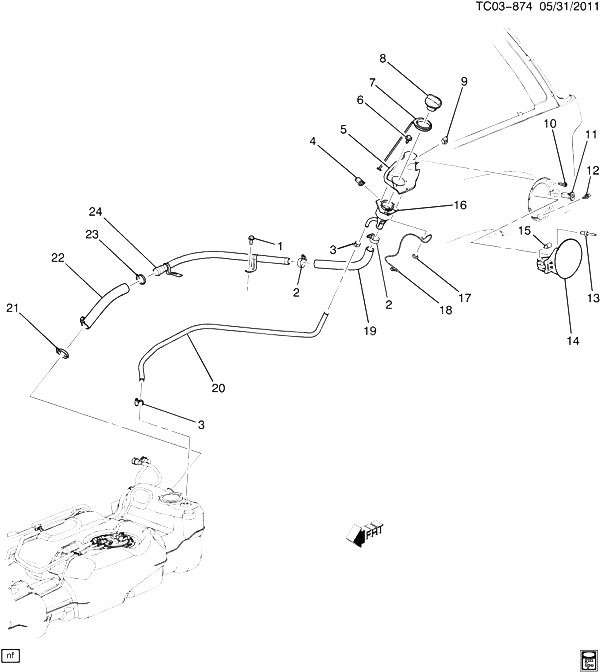

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (F/TNK FIL VENT HOSE BRKT) |
|
2010-2013 |
02 |
| 002 |
11610235 |
CLAMP, HEX HD WORM GEAR, TYPE F, SIZE 16, 38MM OPEN, SS (F/TNK FIL HOSE) (*KIT1) (3.003) |
|
2010-2013 |
02 |
| 003 |
11609970 |
CLAMP, WORM GEAR, 14.22-26.92 DIA, 13.25 THK, STAINLESS STL. (F/TNK FIL VENT HOSE) (*KIT1) |
|
2010-2013 |
02 |
| 004 |
11570097 |
NUT, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (F/TNK FIL PIPE HSG) (*KIT1) |
|
2010-2013 |
03 |
| 005 |
20878556 |
HOUSING, F/TNK FIL PIPE (*KIT1) |
CK107 (06) (LZ1) |
2010-2013 |
01 |
| 006 |
15714277 |
SCREW, W/WA AND SLR, M4.2X1.41X13, 5.4THD, 12.5 O.D., SELF TAP, ZC (F/TNK FIL PIPE SUPT) (*KIT1) |
|
2010-2013 |
03 |
| 007 |
|
STRAP, F/TNK FIL CAP (PART OF 8) |
|
2010-2013 |
|
| 008 |
25862765 |
CAP, F/TNK FIL LKG (INCLS 7) (INSTALL .10) (0.1KGS) (QUARTER TURN CAP) (ACDelco #GT264) |
K107 (06) (BAG, N05) (EXPORT) |
2010-2011 |
01 |
| 008 |
20915842 |
CAP, F/TNK FIL (INCLS 7) (T-TYPE TETHER) (1/4 TURN CAP) (ACDelco #GT330) |
CK1 (LU3, LZ1) |
2010-2011 |
01 |
| 009 |
11570097 |
NUT, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (F/TNK FIL PIPE HSG) (*KIT1) |
|
2010-2013 |
02 |
| 010 |
15953840 |
SCREW, PAN HD TORX W/CON WA M6X1X25 AC PT 9.8 PC 12.5-OD (F/TNK FIL PIPE HSG) (3.003) |
|
2010-2013 |
02 |
| 011 |
20912532 |
SPRING, F/TNK FIL DR (INCLS PLUNGER) (12.945) |
CK1, 2 (06) |
2011-2013 |
01 |
| 012 |
11561878 |
RETAINER, PUSH PIN W/SEAL, FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL (F/TNK FIL PIPE HSG) |
|
2010-2013 |
01 |
| 013 |
11519023 |
RIVET, POP SHANK 0.256, LENGTH 0.643, 0.189-0.268 GRIP RANGE, 1033 STL, (F/TNK FIL DR HGE) |
|
2010-2013 |
02 |
| 014 |
15940678 |
DOOR, F/TNK FIL (INCLS 15) |
CK107 (06) |
2010-2013 |
01 |
| 015 |
15845031 |
BUMPER, F/TNK FIL DR (PART OF 14) |
CK107 (06) |
2010-2013 |
01 |
| 016 |
25858610 |
PIPE, F/TNK FIL (INCLS 17, 18) (INCL PIPE, SUPPORT, STRAP, RIVET, BRACKET, ADAPTERS AND SEAL) (*KIT1) |
CK107 (06) (LZ1, FHO) |
2011-2013 |
01 |
| 017 |
|
RIVET, F/TNK FIL PIPE GND STRP (PART OF 16) (*KIT1) |
|
2010-2013 |
|
| 018 |
15217509 |
STRAP, F/TNK FIL PIPE GND (PART OF 16) (*KIT1) |
CK1, 2 |
2010-2013 |
01 |
| 019 |
15124940 |
HOSE, F/TNK FIL (FILL PIPE UPPER) (*KIT1) |
CK107 (06) (LZ1) |
2011-2013 |
01 |
| 020 |
|
HOSE, FUEL RTN (*KIT1) |
|
2010-2013 |
|
| 021 |
11610236 |
CLAMP, TYPE F WORM GEAR 20-1/4 HEX HD SAE 302 STL GM3044 9 (PART OF 22) (*KIT1) |
|
2010-2013 |
01 |
| 022 |
15289732 |
HOSE, F/TNK FIL (INCLS 21) (FILL PIPE LOWER) (*KIT1) |
CK107 (06) (LZ1, FHO) |
2011-2013 |
01 |
| 023 |
11610236 |
CLAMP, TYPE F WORM GEAR 20-1/4 HEX HD SAE 302 STL GM3044 9 (F/TNK FIL HOSE) (*KIT1) |
|
2010-2013 |
01 |
| 024 |
|
PIPE, F/TNK FIL (*KIT1) |
|
2010-2013 |
|
| K01 |
20878551 |
PIPE, F/TNK FIL (INCLS 2-6, 9, 16-24) (COMPLETE ASM) |
CK107 (06) (LZ1, FHO) |
2011-2013 |
01 |
