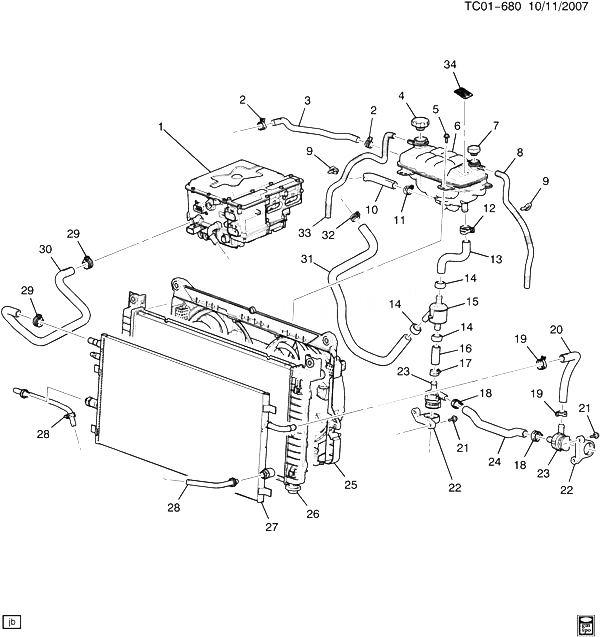

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12636016 |
MODULE, DRV MOT GEN PWR INV (SEE GROUP 02.000 CONTROL MODULE ASM/DRIVE MOTOR FOR DETAILED ILLUSTRATED VIEW) |
CK1 (HP2) |
2010-2013 |
01 |
| 002 |
15734741 |
CLAMP, SPRINGBAND, 20 NOMINAL DIA, 15 THK, GM6298M, GM6164M (RAD SURGE TK INL HOSE) |
|
2008-2013 |
02 |
| 003 |
25880386 |
HOSE, RAD SURGE TK INL |
CK1 (LZ1) |
2010-2011 |
01 |
| 004 |
13502353 |
CAP, RAD SURGE TK |
CK1, 2, 3 |
2008-2013 |
01 |
| 005 |
11609982 |
BOLT, HEX W/FL WA, M6X1X22, 14.55 THD, 24 OD, 8.8, GMW3359, M-PT. (RAD SURGE TK) |
|
2008-2013 |
01 |
| 006 |
22797287 |
TANK, RAD SURGE (ACDelco #22797287) |
CK1 (LZ1) |
2010-2013 |
01 |
| 007 |
15076936 |
CAP, GEN CONT MDL COOL TK (W/LABEL) |
CK1 (HP2) |
2008-2013 |
01 |
| 008 |
25880382 |
HOSE, RAD SURGE TK OVFL |
CK1 (LZ1) |
2010-2013 |
02 |
| 009 |
19130464 |
STRAP, TIE 0.38 WIDTH, BUNDLE DIA 1/16-1-3/4, 8.27 LENGTH, NYLON 6/6 FITS 0. (RAD SURGE TK OVFL HOSE) |
|
2008-2013 |
02 |
| 010 |
25956572 |
HOSE, RAD SURGE TK OTLT |
CK1 (LZ1) |
2010-2013 |
01 |
| 011 |
11570616 |
CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (RAD SURGE TK OTLT HOSE) |
|
2008-2013 |
02 |
| 012 |
11570616 |
CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (RAD SURGE TK OTLT HOSE) |
|
2008-2013 |
01 |
| 013 |
25956572 |
HOSE, RAD SURGE TK OTLT (PART OF 15) |
CK1 (06) (LZ1) |
2010-2013 |
01 |
| 014 |
|
STRAP, HTR OTLT HOSE (PART OF 15) |
|
2010-2013 |
|
| 015 |
25880375 |
TANK, GEN CONT MDL COOL (INCLS 13, 14, 16, 31) |
CK1 (LZ1) |
2010-2013 |
01 |
| 016 |
|
HOSE, RAD SURGE TK OTLT (PART OF 15) |
|
2010-2013 |
|
| 017 |
11570616 |
CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (RAD SURGE TK OTLT HOSE) |
|
2008-2013 |
01 |
| 018 |
11570616 |
CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (GEN CONT MDL COOL OTLT HOSE) |
|
2008-2013 |
02 |
| 019 |
15012561 |
CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (GEN CONT MDL COOL PMP HOSE) (8.948) |
|
2008-2013 |
02 |
| 020 |
19130060 |
HOSE, GEN CONT MDL COOL PMP |
CK1 (LZ1) |
2010-2013 |
01 |
| 021 |
22728347 |
BOLT, ENG COOL FAN SHRD |
CK1 |
2008-2013 |
AR |
| 022 |
|
BRACKET, GEN CONT MDL COOL PMP (*KIT1) |
|
2010-2013 |
|
| 023 |
15293032 |
PUMP, HTR WAT AUX (PUMP ONLY) (1.069) |
CK1 (LZ1) |
2010-2013 |
02 |
| 024 |
25967887 |
HOSE, GEN CONT MDL COOL OTLT |
CK1 (LZ1) |
2010-2013 |
01 |
| 025 |
25880379 |
SHROUD, ENG COOL FAN (SEE GROUP 01.000 ENGINE COOLANT FAN FOR DETAILED ILLUSTRATED VIEW) |
CK1 (LZ1) |
2010-2013 |
01 |
| 026 |
15293038 |
RADIATOR, (SEE GROUP 01.000 RADIATOR ASM FOR DETAILED ILLUSTRATED VIEW) |
CK1 (LZ1, M99) |
2010-2013 |
01 |
| 027 |
|
RADIATOR, GEN CONT MDL COOL (SEE GROUP 01.000 CONTROL MODULE COOLING SYSTEM/RADIATOR MOUNTING FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 028 |
|
PIPE, TRANS FLUID CLR (SEE GROUP 04.000 AUTOMATIC TRANSMISSION OIL COOLER PIPES FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 029 |
11570616 |
CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (GEN CONT MDL COOL TK HOSE) |
|
2008-2013 |
02 |
| 030 |
25880374 |
HOSE, GEN CONT MDL COOL TK |
CK1 (LZ1) |
2010-2013 |
01 |
| 031 |
|
HOSE, GEN CONT MDL COOL INL (PART OF 15) |
|
2010-2013 |
|
| 032 |
11570616 |
CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (GEN CONT MDL COOL INL HOSE) |
|
2008-2013 |
01 |
| 033 |
25880382 |
HOSE, RAD SURGE TK OVFL |
CK1 (LZ1) |
2010-2013 |
01 |
| 034 |
25802205 |
LABEL, RAD SURGE TK CAUTION (DOMESTIC) |
CK1 (LZ1) |
2010-2013 |
01 |
| 034 |
20995992 |
LABEL, RAD SURGE TK CAUTION (EXPORT) |
CK1 (LZ1, CZ3) (EXPORT) |
2010-2013 |
01 |
| K01 |
25880378 |
PUMP, GEN CONT MDL COOL (INCLS 16, 22, 23) (ASSEMBLY) |
CK1 (LZ1) |
2010-2013 |
02 |
