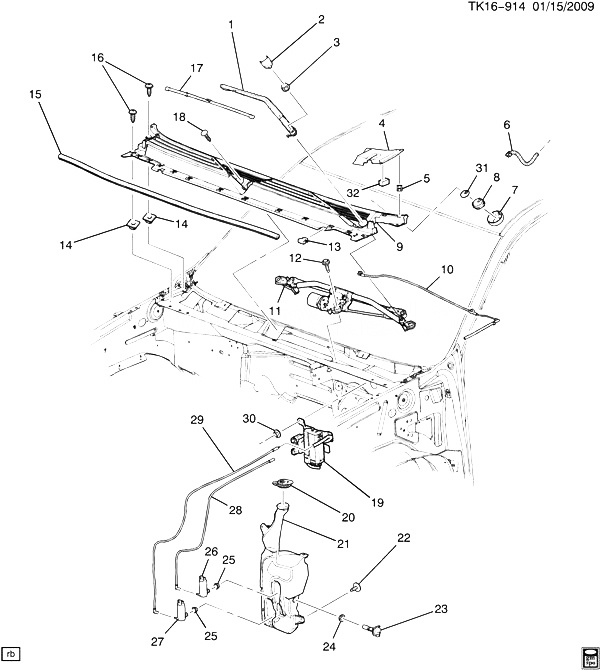

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20959488 |
ARM, WSW (INCLS 2) (BLACK) |
CK1 (06) (PPV) |
2009-2010 |
01 |
| 001 |
20959487 |
ARM, WSW (INCLS 2) (BLACK) |
CK1 (06) (PPV) |
2009-2010 |
01 |
| 002 |
15776792 |
CAP, WSW ARM FIN (PART OF 1) (WINDSHIELD-CAP WIPER ARM NUT) |
CK1 (06) (PPV) |
2009-2010 |
02 |
| 003 |
11609634 |
NUT, HEX WASH, M10X1.25, 7MM THK, 20 WA OD, 9 STL, 7111M, CON SPR WA. (WSW ARM) |
|
2009-2010 |
02 |
| 004 |
25820729 |
PANEL, AIR INL GRL (INCLS 5) (BLACK) |
CK1, 2 (06) |
2009-2010 |
01 |
| 004 |
25820730 |
PANEL, AIR INL GRL (INCLS 5) (BLACK) |
CK1, 2 (06) |
2009-2010 |
01 |
| 005 |
11609796 |
CLIP, AIR INL GRL PNL (PART OF 4) (11.0 X 12.9 X 6.1MM) (8.950) |
CK1, 2 (06) |
2009-2010 |
03 |
| 006 |
|
HARNESS, W/S HDR WRG (SEE GROUP 2.000 WIRING HARNESS/ROOF FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2010 |
|
| 007 |
15780444 |
COVER, W/S O/S MSTRE SEN (COVERS MIR HARNESS) |
CK1, 2 |
2009-2010 |
01 |
| 008 |
|
SENSOR, W/S O/S MSTRE (INCLS 31) |
K |
2010-2010 |
|
| 009 |
25872303 |
PANEL, AIR INL GRL (CTR) (INCLS 10, 15, 18) (BLACK) |
CK1, 2 (06) |
2009-2010 |
01 |
| 010 |
20908176 |
HOSE, WSWA NOZ (PART OF 9) |
CK1, 2 (06-36) |
2009-2010 |
01 |
| 011 |
25923882 |
MODULE, WSW SYS |
CK1, 2, 3 (ARL, CMD, FWI, JAN, MSL) |
2010-2010 |
01 |
| 012 |
11513947 |
BOLT, HEX, W/WA, M6X1X35, 24 O.D., AC PT, 9.8, POR (WSW SYS MDL) |
|
2009-2010 |
03 |
| 013 |
15999788 |
RETAINER, AIR INL GRL PNL (17X15.25X8.6) (U-SHAPED/CLIP) |
CK1, 2, 3 |
2009-2010 |
02 |
| 014 |
11589183 |
NUT, PUSH IN, W/SEAL, 4.2X1.41, 6.35-6.48 SQ HL, 9.5 SQ HD, 0.787-2.765 PNL THK, NYL (AIR INL GRL PNL) |
|
2009-2010 |
04 |
| 015 |
15200240 |
WEATHERSTRIP, HOOD RR (PART OF 9) |
CK1, 2 (06-36) |
2009-2010 |
01 |
| 016 |
11609797 |
BOLT, AIR INL GRL PNL (10.268) |
CK1, 2, 3 |
2009-2010 |
04 |
| 017 |
25877402 |
BLADE, WSW (22) (ONE PIECE FLAT BLADE) (W/SIDE LOCK RELEASE CONNECT ON CENTER) (ACDelco #25877402) |
CK1 (06) (PPV) |
2010-2010 |
02 |
| 018 |
15048061 |
RETAINER, AIR INL GRL PNL (PART OF 9) (PUSH IN) |
CK1, 2 (06-36) |
2009-2010 |
01 |
| 019 |
|
HEATER, WSWA SOLV |
|
2010-2010 |
|
| 020 |
25731418 |
CAP, WSWA SOLV CNTNR (10.154) |
CK1, 2, 3 |
2009-2010 |
01 |
| 020 |
25731418 |
CAP, WSWA SOLV CNTNR (10.154) |
CK1, 2 (06) (C25) |
2009-2010 |
01 |
| 021 |
20999340 |
CONTAINER KIT, WSWA SOLV (INCLS 24, 25) (USE T/W 20999338 WHEN REPLACING 15248577, 15213911 OR 15942522.) |
CK1, 2 (06) |
2009-2010 |
01 |
| 022 |
11516578 |
BOLT, HEX W/FL WA, M6X1X25, 16 THD, 24 OD, 9.8, 7114M, MACH, 6MM P PT. (WSWA SOLV CNTNR) |
|
2009-2010 |
03 |
| 023 |
20999338 |
INDICATOR KIT, WSWA SOLV LVL (INCLS 24) (LEVEL SENSOR KIT W/GROMMET) (KIT HAS 16MM DIAM LVL SENSOR) (ACDelco #20999338) (USE T/W 20999340 WHEN REPLACING 15248577, 15213911 OR 15942522.) |
CK1, 2 (06) |
2009-2010 |
01 |
| 024 |
15248578 |
GROMMET, WSWA SOLV CNTNR (PART OF 21, 23) |
CK1, 2, 3 |
2009-2010 |
01 |
| 025 |
15927514 |
GROMMET, WSWA PUMP (PUMP GROMMET) (PART OF 21, 26, 27) (ACDelco #15927514) |
CK1, 2, 3 |
2009-2010 |
01 |
| 026 |
15942524 |
PUMP KIT, WSWA W/SEAL (INCLS 25) (RR PUMP KIT W/GROMMET) (ACDelco #15942524) |
CK1, 2 (06) (C25) |
2009-2010 |
01 |
| 026 |
15942523 |
PUMP KIT, WSWA W/SEAL (INCLS 25) (FRT PUMP KIT W/GROMMET) |
CK1, 2, 3 |
2009-2010 |
01 |
| 027 |
15942523 |
PUMP KIT, WSWA W/SEAL (INCLS 25) (FRT PUMP KIT W/GROMMET) |
CK1, 2, 3 |
2009-2010 |
01 |
| 028 |
25887957 |
HOSE, R/WDO WA PUMP (SEE GROUP 16.000 WIPER SYSTEM/ REAR WINDOW FOR DETAILED ILLUSTRATED VIEW) (REAR JUMPER HOSE) |
CK1, 2 (06) (C25) |
2009-2010 |
01 |
| 029 |
25887977 |
HOSE, WSWA PUMP (FRT JUMPER HOSE) |
CK1, 2, 3 |
2009-2010 |
01 |
| 030 |
11516793 |
NUT, HEX, W/CON WA, M6X1X5.5, 16 O.D., 9, 7111M (WSWA SOLV HTR) |
|
2009-2010 |
02 |
| 031 |
|
LENS, W/S O/S MSTRE SEN (PART OF 8) |
K |
2010-2010 |
|
| 032 |
20779836 |
SPACER, AIR INL GRL PNL |
CK1, 2, 3 |
2009-2010 |
01 |
