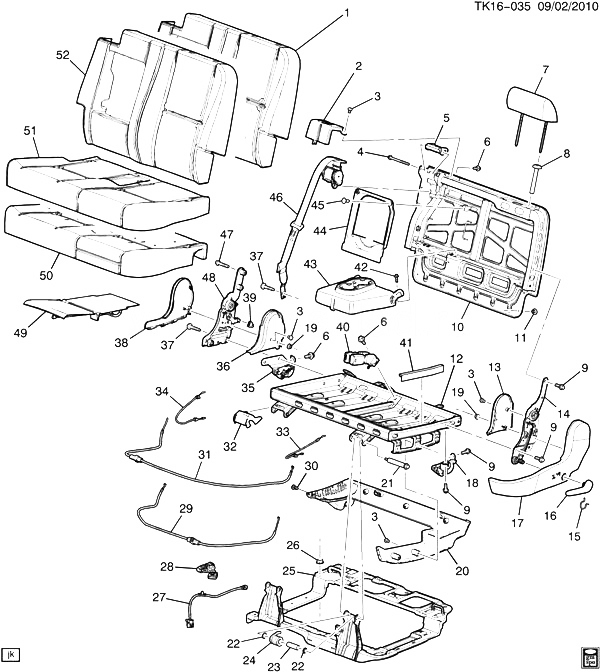

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15291597 |
PAD, R/SEAT BK |
CK107, 109, 2 (06) (AM8, 193, 333, 833) |
2009-2013 |
01 |
| 002 |
15279450 |
PROTECTOR, R/SEAT SHLDR BELT (BLACK) |
CK1, 2 (06) |
2009-2013 |
01 |
| 003 |
11570116 |
SCREW, PAN HD, M6X1X10, 10 THD, 12 OD, STL SAE J1237, S424, TAPTITE ITE (R/SEAT LAT FIN CVR) (8.913) |
|
2009-2013 |
14 |
| 004 |
11562382 |
BOLT, HFH, M10X1.5X130, 26 THD, 22.3 OD, 10.9, 7114M, MACH, MAT-PT (R/SEAT BK FRM) |
|
2009-2013 |
01 |
| 005 |
15289969 |
BRACKET, RR CTR SEAT BELT RETR |
CK1, 2 (06) (AM8) |
2009-2013 |
01 |
| 006 |
11562383 |
BOLT, HFH, M12X1.75X30.5, 17 THD, 26.6 OD, 10.9 STL, GMW3359, W/ADH 6175M (R/SEAT LAT) |
|
2009-2013 |
03 |
| 007 |
15824670 |
RESTRAINT, R/SEAT HD (TITANIUM) |
CK107 (06) (AM8, 833) |
2009-2010 |
02 |
| 007 |
25928791 |
RESTRAINT, R/SEAT HD (CASHMERE) |
CK1 (06) (AM8, 394) |
2009-2010 |
02 |
| 007 |
25928791 |
RESTRAINT, R/SEAT HD (CASHMERE) |
CK1 (06) (AM8, 397) |
2009-2010 |
02 |
| 007 |
15865813 |
RESTRAINT, R/SEAT HD (EBONY) |
CK107 (06) (AM8, 193) |
2009-2010 |
02 |
| 007 |
15824669 |
RESTRAINT, R/SEAT HD (CASHMERE) |
CK107 (06) (AM8, 33I) |
2009-2010 |
02 |
| 007 |
25928790 |
RESTRAINT, R/SEAT HD (EBONY) |
CK1 (06) (AM8, 194) (EXC AX4) |
2009-2010 |
02 |
| 007 |
25928790 |
RESTRAINT, R/SEAT HD (EBONY) |
CK1 (06) (AM8, 197) |
2009-2010 |
02 |
| 007 |
15824676 |
RESTRAINT, R/SEAT HD (EBONY) |
K107 (06) (AM8, AX4, 194) (EXPORT) |
2009-2010 |
02 |
| 008 |
15279353 |
GUIDE, R/SEAT H/RST (TITANIUM) (W/O BUTTON) |
CK1, 2, 3 (83I) |
2009-2013 |
02 |
| 008 |
25851751 |
GUIDE, R/SEAT H/RST (COCOA) (W/O BUTTON) |
CK1 (06-36) (41I) |
2009-2013 |
02 |
| 008 |
15279347 |
GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) |
CK1, 2 (06) (19I) |
2009-2013 |
02 |
| 008 |
20912677 |
GUIDE, R/SEAT H/RST (COCOA) (W/BUTTON) |
CK1 (06) (AM8, 41I) |
2009-2013 |
02 |
| 008 |
20912675 |
GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) |
CK1, 2 (06-36) (33I) |
2009-2013 |
02 |
| 008 |
20912675 |
GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) |
CK1, 2 (06-36) (39I) |
2009-2013 |
02 |
| 008 |
20912675 |
GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) |
CK1, 2 (06-36) (31I) |
2009-2011 |
02 |
| 008 |
20912679 |
GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) |
CK1, 2 (06) (AM8, 19I) |
2009-2013 |
02 |
| 008 |
20912680 |
GUIDE, R/SEAT H/RST (CASHMERE) (W/O BUTTON) |
CK1, 2 (06) (33I, 39I) |
2009-2013 |
02 |
| 008 |
20912676 |
GUIDE, R/SEAT H/RST (TITANIUM) (W/BUTTON) |
CK1, 2 (06) (83I) |
2009-2013 |
02 |
| 009 |
11562378 |
BOLT, HFH, M10X1.5X30, 18 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) |
|
2009-2013 |
06 |
| 010 |
15269762 |
FRAME, R/SEAT BK |
CK1, 2 (06) (AM8) |
2009-2013 |
01 |
| 011 |
25784336 |
RETAINER, R/SEAT BK OPG FIN CVR (PUSH IN) (16.720) |
CK1, 2 (06) (AM8, HP2) |
2009-2013 |
12 |
| 012 |
20761386 |
FRAME, R/SEAT CUSH |
CK1 (06) (AM8, HP2) |
2009-2013 |
01 |
| 013 |
25816439 |
PANEL, R/SEAT CUSH TR (EBONY) (O/B INNER) |
CK107 (06) (AM8, HP2, 193, 194, 197) |
2009-2012 |
01 |
| 013 |
25816440 |
PANEL, R/SEAT CUSH TR (CASHMERE) (O/B INNER) |
CK107 (06) (AM8, HP2, 333, 394, 397) |
2009-2012 |
01 |
| 013 |
25816441 |
PANEL, R/SEAT CUSH TR (TITANIUM) (O/B INNER) |
CK107 (06) (AM8, HP2, 833) |
2009-2012 |
01 |
| 014 |
25816390 |
LATCH, R/SEAT BK (OUTBOARD) |
CK107 (06) (AM8, HP2) |
2009-2012 |
01 |
| 015 |
|
RETAINER, R/SEAT ADJR RLR (PART OF 16) |
|
2009-2013 |
|
| 016 |
15279416 |
HANDLE, R/SEAT RECL (INCLS 15) (TITANIUM) |
CK1, 2 (06) (83I) |
2009-2013 |
01 |
| 016 |
15279414 |
HANDLE, R/SEAT RECL (INCLS 15) (EBONY) |
CK1, 2 (06) (19I) |
2009-2013 |
01 |
| 016 |
15279415 |
HANDLE, R/SEAT RECL (INCLS 15) (CASHMERE) |
CK1, 2 (06) (33I) |
2009-2013 |
01 |
| 016 |
25858332 |
HANDLE, R/SEAT RECL (INCLS 15) (COCOA) |
CK1 (06) (AM8, 41I) |
2009-2013 |
01 |
| 016 |
15279415 |
HANDLE, R/SEAT RECL (INCLS 15) (CASHMERE) |
CK1 (06) (39I) |
2009-2013 |
01 |
| 017 |
25816435 |
PANEL, R/SEAT CUSH TR (EBONY) (SIDE SHIELD OUTER) |
CK107 (06) (AM8, HP2, 193, 194, 197) |
2009-2012 |
01 |
| 017 |
25816436 |
PANEL, R/SEAT CUSH TR (CASHMERE) (SIDE SHIELD OUTER) |
CK107 (06) (AM8, HP2, 333, 394, 397) |
2009-2012 |
01 |
| 017 |
25816437 |
PANEL, R/SEAT CUSH TR (TITANIUM) (SIDE SHIELD OUTER) |
CK107 (06) (AM8, HP2, 833) |
2009-2012 |
01 |
| 018 |
25816392 |
LATCH, R/SEAT RSR (O/B FLOOR) |
CK107 (06) (AM8, HP2) |
2009-2012 |
01 |
| 019 |
11562384 |
NUT, HFH, M4X.7 THD, 4.75 THK, 10.5 OD, GM510M (9)STL, GM4435M-CODE A (R/SEAT FLR FIL T/PNL) |
|
2009-2013 |
02 |
| 020 |
20761389 |
PANEL, R/SEAT CUSH TR (EBONY) (LATCH COVER-TUB) |
CK107 (06) (AM8, HP2, 19I) |
2009-2010 |
01 |
| 020 |
20761390 |
PANEL, R/SEAT CUSH TR (CASHMERE) (LATCH COVER-TUB) |
CK107 (06) (AM8, HP2, 33I, 39I) |
2009-2010 |
01 |
| 020 |
22772281 |
PANEL, R/SEAT CUSH TR (TITANIUM) |
CK107 (06) (AM8, HP2, 833) |
2009-2010 |
01 |
| 021 |
11571092 |
BOLT, R/SEAT HGE (M10X1.5X114) |
CK1, 2, 3 |
2009-2012 |
02 |
| 022 |
11562380 |
BUSHING, R/SEAT HGE |
CK1, 2 (06) (AM8) |
2009-2013 |
08 |
| 023 |
25816394 |
SPRING, R/SEAT RECL |
CK107 (06) (AM8, HP2) |
2009-2012 |
02 |
| 024 |
15275900 |
SPRING, R/SEAT RECL (TUMBLE) |
CK1, 2 (06) (AM8) |
2009-2012 |
01 |
| 025 |
25944144 |
RISER, R/SEAT |
CK107 (06) (AM8, HP2) |
2009-2012 |
01 |
| 026 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (R/SEAT) (8.915) (ACDelco #11514596) |
|
2009-2013 |
02 |
| 029 |
25816396 |
CABLE, R/SEAT LAT (MASTER SYNC) |
CK107 (06) (AM8, HP2) |
2009-2012 |
01 |
| 030 |
20825904 |
RETAINER, R/SEAT CUSH SI FAC (EBONY) |
CK107 (06) (AM8, HP2, 19I) |
2009-2013 |
01 |
| 030 |
20825905 |
RETAINER, R/SEAT CUSH SI FAC (CASHMERE) |
CK107 (06) (AM8, HP2, 33I, 39I) |
2009-2013 |
01 |
| 030 |
20825906 |
RETAINER, R/SEAT CUSH SI FAC (TITANIUM) |
CK107 (06) (AM8, HP2, 83I) |
2009-2013 |
01 |
| 030 |
20825907 |
RETAINER, R/SEAT CUSH SI FAC (COCOA) |
CK1 (06) (AM8, HP2, 41I) |
2009-2013 |
01 |
| 031 |
25816395 |
CABLE, R/SEAT LAT (MASTER SYNC) |
CK107 (06) (AM8, HP2) |
2009-2012 |
01 |
| 032 |
25816461 |
PANEL, R/SEAT CUSH TR (EBONY) (HINGE COVER) |
CK107 (06) (AM8, HP2, 193, 194, 197) |
2009-2012 |
02 |
| 032 |
25816462 |
PANEL, R/SEAT CUSH TR (CASHMERE) (HINGE COVER) |
CK107 (06) (AM8, HP2, 333, 394, 397) |
2009-2012 |
02 |
| 032 |
25816463 |
PANEL, R/SEAT CUSH TR (TITANIUM) (HINGE COVER) |
CK107 (06) (AM8, HP2, 833) |
2009-2012 |
02 |
| 033 |
15275914 |
CABLE, R/SEAT LAT (OUTBOARD) (FLOOR LATCH) |
CK1, 2 (06) (AM8) |
2009-2012 |
01 |
| 034 |
15275917 |
CABLE, R/SEAT LAT (INBOARD) (FLOOR LATCH) |
CK1, 2 (06) (AM8) |
2009-2012 |
01 |
| 035 |
25816393 |
LATCH, R/SEAT RSR (I/B FLOOR) |
CK107 (06) (AM8, HP2) |
2009-2012 |
01 |
| 036 |
25816451 |
PANEL, R/SEAT CUSH TR (EBONY) (I/B INNER) |
CK107 (06) (AM8, HP2, 194, 197) |
2009-2012 |
01 |
| 036 |
25816451 |
PANEL, R/SEAT CUSH TR (EBONY) (I/B INNER) |
CK107 (06) (AM8, HP2, 193) |
2009-2012 |
01 |
| 036 |
25816452 |
PANEL, R/SEAT CUSH TR (CASHMERE) (I/B INNER) |
CK107 (06) (AM8, HP2, 333, 394, 397) |
2009-2012 |
01 |
| 036 |
25816453 |
PANEL, R/SEAT CUSH TR (TITANIUM) (I/B INNER) |
CK107 (06) (AM8, HP2, 833) |
2009-2012 |
01 |
| 037 |
11562376 |
SCREW, PAN HD, M12X1.75X55, 42 THD, 27 OD, 10.9, S424, W/ADH GM6175M (R/SEAT LAT) |
|
2009-2013 |
02 |
| 038 |
20761393 |
PANEL, R/SEAT CUSH TR (EBONY) (I/B OUTER COVER) |
CK107 (06) (AM8, HP2, 19I) |
2009-2012 |
01 |
| 038 |
20761394 |
PANEL, R/SEAT CUSH TR (CASHMERE) (I/B OUTER COVER) |
CK107 (06) (AM8, HP2, 33I, 39I) |
2009-2012 |
01 |
| 038 |
20761395 |
PANEL, R/SEAT CUSH TR (TITANIUM) (I/B OUTER COVER) |
CK107 (06) (AM8, HP2, 83I) |
2009-2012 |
01 |
| 039 |
15279464 |
KNOB, R/SEAT LAT (EBONY) (16.716) (W/O NUMBER LABELS ON 3RD ROW SEAT) (FOR 2ND DES SEE 20963265) |
CK1, 2, 3 (1ST DES) |
2010-2010 |
02 |
| 039 |
20963265 |
KNOB, R/SEAT LAT (EBONY) (INNER) (W/NUMBER LABELS ON 3RD ROW SEAT) (FOR 1ST DES SEE 15279464) |
CK1, 2 (06) (2ND DES) |
2010-2010 |
02 |
| 040 |
19121589 |
BELT KIT, R/SEAT (BKL SI) (EBONY) (BKL/BKL) |
CK1, 2 (06) (AM8, 19I) |
2009-2012 |
01 |
| 040 |
19121591 |
BELT KIT, R/SEAT (BKL SI) (CASHMERE) (BKL/BKL) |
CK1, 2 (06) (AM8, 33I, 39I) |
2009-2012 |
01 |
| 040 |
19121592 |
BELT KIT, R/SEAT (BKL SI) (TITANIUM) (BKL/BKL) |
CK1, 2 (06) (AM8, 83I) |
2009-2012 |
01 |
| 042 |
11562386 |
BOLT, HFH, M8X1.25X24, 22.5 THD, 18 OD, GM6202M, STL, GM4435M.CODE G, TAPTITE (R/SEAT A/RST) |
|
2009-2013 |
04 |
| 043 |
15865493 |
ARMREST, R/SEAT (EBONY) |
CK1, 2 (06) (AM8, 193) |
2009-2013 |
01 |
| 044 |
15279471 |
COVER, R/SEAT A/RST SUPT FIN (TITANIUM) |
CK1, 2 (06) (AM8, 83I) |
2009-2013 |
01 |
| 044 |
15279469 |
COVER, R/SEAT A/RST SUPT FIN (EBONY) |
CK1, 2 (06) (AM8, 19I) |
2009-2013 |
01 |
| 044 |
15279470 |
COVER, R/SEAT A/RST SUPT FIN (CASHMERE) |
CK1, 2 (06) (AM8, 33I, 39I) |
2009-2013 |
01 |
| 045 |
15279408 |
PIN, R/SEAT H/RST ADJ ROD LAT (TITANIUM) |
CK1, 2 (06) (AM8, 83I) |
2009-2013 |
02 |
| 045 |
15279406 |
PIN, R/SEAT H/RST ADJ ROD LAT (EBONY) |
CK1, 2 (06) (AM8, 19I) |
2009-2013 |
02 |
| 045 |
15279407 |
PIN, R/SEAT H/RST ADJ ROD LAT (CASHMERE) |
CK1, 2 (06) (33I, 39I) |
2009-2013 |
02 |
| 046 |
19151106 |
BELT KIT, R/SEAT CTR (RETR SI) (TITANIUM) |
CK1, 2 (06) (AM8, 83I) |
2009-2013 |
01 |
| 046 |
19151105 |
BELT KIT, R/SEAT CTR (RETR SI) (CASHMERE) |
CK1, 2 (06) (AM8, 33I, 39I) |
2009-2013 |
01 |
| 046 |
19151104 |
BELT KIT, R/SEAT CTR (RETR SI) (EBONY) |
CK107 (06) (AM8, 19I) |
2009-2010 |
01 |
| 047 |
11562377 |
BOLT, HFH, M10X1.5X55, 43.45 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) |
|
2009-2013 |
02 |
| 048 |
25816391 |
LATCH, R/SEAT BK (INBOARD) |
CK107 (06) (AM8, HP2) |
2009-2012 |
01 |
| 049 |
20792750 |
HEATER, R/SEAT CUSH |
CK1, 2 (06) (KA6) |
2009-2013 |
01 |
| 050 |
25816398 |
PAD, R/SEAT CUSH |
CK107 (06) (AM8, HP2) |
2009-2013 |
01 |
| 051 |
25816425 |
COVER, R/SEAT CUSH (EBONY) |
CK107 (06) (AM8, HP2, 193) |
2009-2013 |
01 |
| 051 |
25816427 |
COVER, R/SEAT CUSH (TITANIUM) |
CK107 (06) (AM8, HP2, 833) |
2009-2013 |
01 |
| 051 |
25816426 |
COVER, R/SEAT CUSH (CASHMERE) |
CK107 (06) (AM8, HP2, 333) |
2009-2013 |
01 |
| 052 |
15865521 |
COVER, R/SEAT BK (EBONY) |
CK1, 2 (06) (AM8, 193) (EXC KB6) |
2009-2012 |
01 |
| 052 |
15865522 |
COVER, R/SEAT BK (CASHMERE) |
CK1, 2 (06) (AM8, 333) (EXC KB6) |
2009-2012 |
01 |
| 052 |
15865523 |
COVER, R/SEAT BK (TITANIUM) |
CK1, 2 (06) (AM8, 833) (EXC KB6) |
2009-2012 |
01 |
