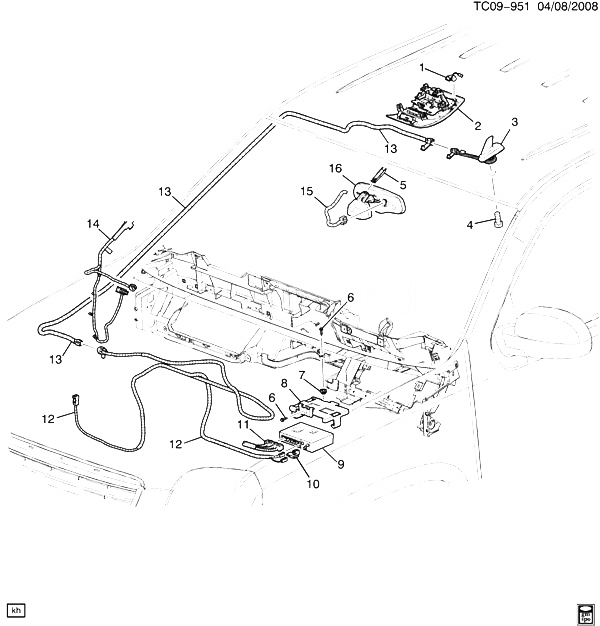

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15241529 |
MICROPHONE, MOBILE TEL (PART OF 2) (2-WAY CAVITY) |
CK1, 2, 3 (DK8) |
2009-2011 |
01 |
| 002 |
|
CONSOLE, RF (INCLS 1) (SEE GROUP 16.000 CONSOLE/ROOF FOR DETAILED ILLUSTRATED VIEW) (10.225) |
|
2009-2013 |
|
| 003 |
25815079 |
ANTENNA, DIGITAL RDO M/TEL VEH LOC (INCLS 4) (ONSTAR XM) (ROOF MOUNTED) (ACDelco #25815079) |
CK1, 2, 3 (UBS, U2K, UE1) |
2009-2010 |
01 |
| 003 |
25815079 |
ANTENNA, DIGITAL RDO M/TEL VEH LOC (INCLS 4) (ONSTAR XM) (ROOF MOUNTED) (9.645) (ACDelco #25815079) |
CK1, 2, 3 (UBS, U2K, UE1) |
2009-2010 |
01 |
| 003 |
20850446 |
ANTENNA, DIGITAL RDO M/TEL VEH LOC (INCLS 4) (W/3-WAY CONN W/ONLY 2 LEADS) (ACDelco #20850446) |
CK1, 2, 3 (UE1) (EXC UBS, U2K) |
2009-2010 |
01 |
| 003 |
20850446 |
ANTENNA, DIGITAL RDO M/TEL VEH LOC (INCLS 4) (W/3-WAY CONN W/ONLY 2 LEADS) (9.645) (ACDelco #20850446) |
CK1, 2, 3 (UE1) (EXC UBS, U2K) |
2009-2010 |
01 |
| 004 |
|
BOLT, RDO ANT (PART OF 3) |
|
2009-2013 |
|
| 005 |
15779345 |
COVER, I/S RR VIEW MIR WRG HARN (BETWEEN ISRVM HDLNG TRIM) |
CK1, 2, 3 |
2009-2013 |
01 |
| 006 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (COMN INTERFACE MDL BRKT) (9.665) |
|
2009-2013 |
03 |
| 007 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (COMMUNICATION INTERFACE MDL BRKT) (10.701) |
|
2009-2013 |
02 |
| 008 |
25791895 |
BRACKET, COMMUNICATION INTERFACE MDL |
CK1, 2 (06) (UE1) |
2009-2013 |
01 |
| 009 |
20829983 |
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (LABELED 20829983) (ACDelco #20829983) |
CK1, 2 (06) (UE1) (EXC FCN, UPF) |
2010-2010 |
01 |
| 009 |
20829984 |
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (LABELED 20829984) (ACDelco #20829984) |
CK1, 2 (06-36) (UE1, UPF) (EXC FCN) |
2010-2010 |
01 |
| 009 |
20923563 |
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (LABELED 20923563) (ACDelco #20923563) |
K1 (06) (FCN, UE1, UPF) |
2010-2010 |
01 |
| 009 |
22850735 |
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (ACDelco #22850735) (LABELED 22850735) |
K1 (06) (FCN, UE1, UPF) |
2010-2010 |
01 |
| 010 |
15938939 |
ANTENNA, WIRELESS COMN INTERFACE (BLUETOOTH) (ACDelco #15938939) |
CK1, 2, 3 (UPF) |
2009-2013 |
01 |
| 011 |
|
HARNESS, I/P WRG HARN EXTN (INCLS 12) (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL EXTENSION FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2013 |
|
| 012 |
19209842 |
CABLE, DIGITAL RDO M/TEL VEH LOC ANT (PART OF 11) |
CK1, 2 (06) (AZ3, UE1, UQ3, USR, UUI, U2K) (EXC STZ, UK6, U42, Y91) |
2010-2010 |
01 |
| 012 |
19209842 |
CABLE, DIGITAL RDO M/TEL VEH LOC ANT (PART OF 11) |
CK1, 2 (06) (UBS, U2K, UE1, UQA, USR, UUK, U42) (EXC STZ, Y91) |
2010-2010 |
01 |
| 012 |
19209842 |
CABLE, DIGITAL RDO M/TEL VEH LOC ANT (PART OF 11) |
CK1, 2 (06) (UBS, U2K, UE1, UQA, USR, UUL) (EXC STZ, U42, Y91) |
2010-2010 |
01 |
| 012 |
19209842 |
CABLE, DIGITAL RDO M/TEL VEH LOC ANT (PART OF 11) |
CK1, 2 (06) (UE1, UQA, USR, UUI, UUJ, U2K) (EXC STZ, U42, Y91) |
2010-2010 |
01 |
| 012 |
19209842 |
CABLE, DIGITAL RDO M/TEL VEH LOC ANT (PART OF 11) |
CK1, 2 (06-36) (UE1, UQA, USR, UUJ, U2K, U42) (EXC STZ, Y91) |
2010-2010 |
01 |
| 012 |
19209842 |
CABLE, DIGITAL RDO M/TEL VEH LOC ANT (PART OF 11) |
CK1, 2 (06) (UE1, UQA, USR, UUK, U42) (EXC STZ, UBS, U2K, Y91) |
2010-2010 |
01 |
| 012 |
19209842 |
CABLE, DIGITAL RDO M/TEL VEH LOC ANT (PART OF 11) |
CK1, 2 (06-36) (UE1, UQA, USR, UUJ, U2K, U42) (EXC STZ, Y91) |
2010-2010 |
01 |
| 012 |
19117898 |
CABLE, DIGITAL RDO M/TEL VEH LOC ANT (9.675) (ACDelco #19117898) |
CK1 (06) |
2010-2010 |
01 |
| 013 |
19208818 |
CABLE, DIGITAL RDO M/TEL VEH LOC ANT (PART OF 14) (USED IN ROOF AND DOOR HARNESSES) (ACDelco #19208818) |
CK1, 2, 3 (UBS, UE1, U2K) |
2010-2010 |
01 |
| 013 |
19208818 |
CABLE, DIGITAL RDO M/TEL VEH LOC ANT (PART OF 14) (USED IN ROOF AND DOOR HARNESSES) (9.647) (ACDelco #19208818) |
CK1, 2, 3 (UBS, UE1, U2K) |
2010-2010 |
01 |
| 014 |
|
HARNESS, RF WRG (INCLS 13) (SEE GROUP 02.000 WIRING HARNESS/ROOF FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2013 |
|
| 015 |
|
HARNESS, RF ACSRY WRG (SEE GROUP 16.000 TRIM/INTERIOR-ROOF FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2013 |
|
| 016 |
|
MIRROR, I/S RR VIEW (SEE GROUP 16.000 WINDSHIELD RELATED PARTS FOR DETAILED ILLUSTRATED VIEW) (W/ONSTAR BUTTONS) |
|
2009-2013 |
|
