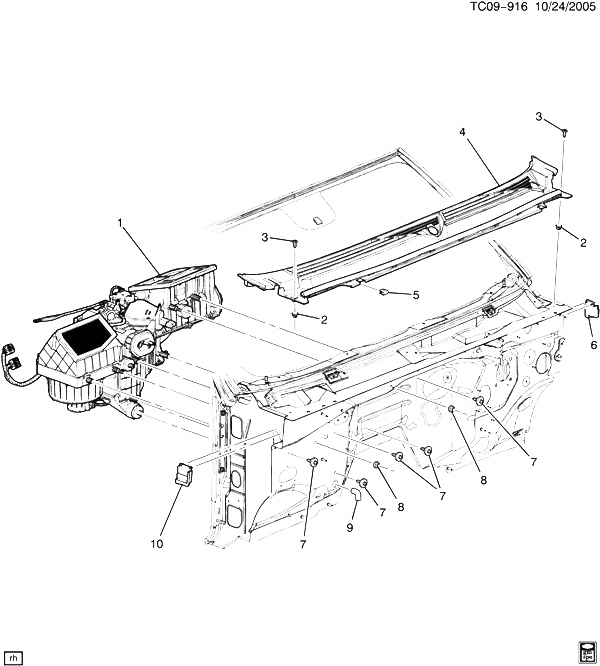

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
MODULE, HTR A/C EVPR BLO (SEE GROUP 09.000 A/C HEATER MODULE ASM FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 002 |
11589183 |
NUT, PUSH IN, W/SEAL, 4.2X1.41, 6.35-6.48 SQ HL, 9.5 SQ HD, 0.787-2.765 PNL THK, NYL (AIR INL GRL PNL) |
|
2007-2013 |
04 |
| 003 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (HDLP BZL) |
|
2007-2013 |
02 |
| 004 |
|
PANEL, AIR INL GRL (CTR) (SEE GROUP 16.000 WIPER SYSTEM/WINDSHIELD FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 005 |
15999788 |
RETAINER, AIR INL GRL PNL (17X15.25X8.6) (U-SHAPED/CLIP) |
CK1, 2, 3 |
2007-2013 |
02 |
| 006 |
15856112 |
VALVE, PLNM DRN |
CK1, 2, 3 |
2007-2013 |
01 |
| 007 |
15733206 |
BOLT, HTR BLO MDL (M6X2.70X27) |
CK1, 2, 3 |
2007-2013 |
05 |
| 008 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (HTR A/C EVPR BLO MDL) |
|
2010-2013 |
02 |
| 009 |
15138625 |
HOSE, A/C EVPR BLO MDL DRN |
CK1, 2, 3 (CJ2, CJ3, C42, C67) |
2007-2013 |
01 |
| 010 |
15856113 |
VALVE, PLNM DRN |
CK1, 2, 3 |
2007-2013 |
01 |
