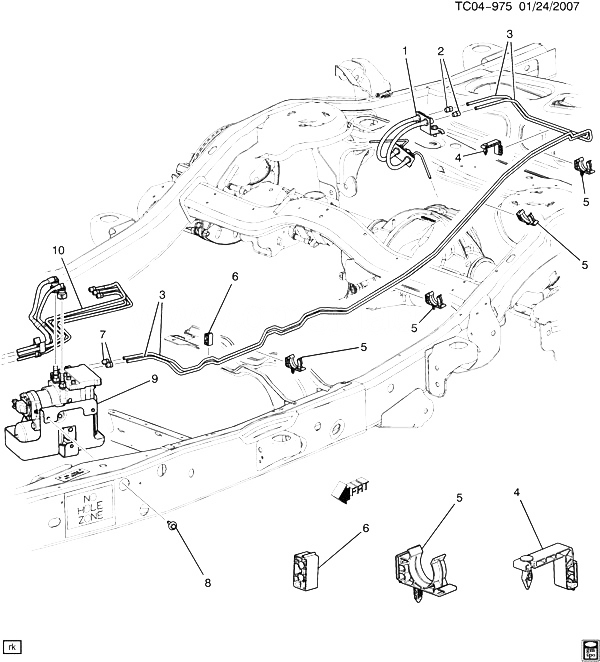

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
PIPE, RR BRK C/OVR (SEE GROUP 04.000 BRAKE LINES/REAR FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 002 |
11518522 |
NUT, HX FLARED TUBE, M12X1.0X20.5, 11 TUBE, SAE1010, GMW4707M (FRT BRK FRT PIPE) |
|
2008-2013 |
02 |
| 003 |
88936298 |
PIPE, BRK (STEEL) (1/4 X 16 FT ROLL) (BRK) |
|
2008-2013 |
AR |
| 004 |
11610034 |
CLIP, RR BRK FRT PIPE (BROWN/BLACK) (8X22X44) (HOLDS (2)6.75 TUBES) (PRONG FITS 8 DIA HOLE IN 3.2 THK PNL) |
CK107 (06) (J92) |
2008-2013 |
01 |
| 005 |
11610035 |
CLIP, RR BRK FRT PIPE (BROWN/BLACK) (6.9 X 20.4/77.4 X 15) (HOLDS (1)4.8, (2)6.75 TUBES, (1)32 HARNESS) (FITS 7.2 HOLE) |
CK107 (06) (J92) |
2008-2013 |
05 |
| 006 |
11561578 |
CLIP, FRT BRK PIPE (BLACK/GRAY) (31.72X17.07X15.0) (FOLD-OVER LOCKING ROUTING CLIP HOLDS (2)6.75 TUBES) |
CK107 (06) (J92) |
2008-2013 |
01 |
| 007 |
11562075 |
NUT, RR BRK FRT PIPE (M12X1.5X17) (INVERTED FLARE) |
CK1, 2, 3 (JD9, JF3, JF7, JH6, JH7, J92) |
2008-2010 |
01 |
| 008 |
11589407 |
BOLT, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (BRK PRESS MOD VLV BRKT) |
|
2008-2013 |
03 |
| 009 |
|
MODULE, ELEK BRK CONT (W/BRKT HYD BOOS EMU ECU) (SEE GROUP 04.000 BRAKE CONTROL MODULE FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 010 |
|
PIPE, BRK PRESS MOD VLV (SEE GROUP 04.000 BRAKE LINES/FRONT PART 1 FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
