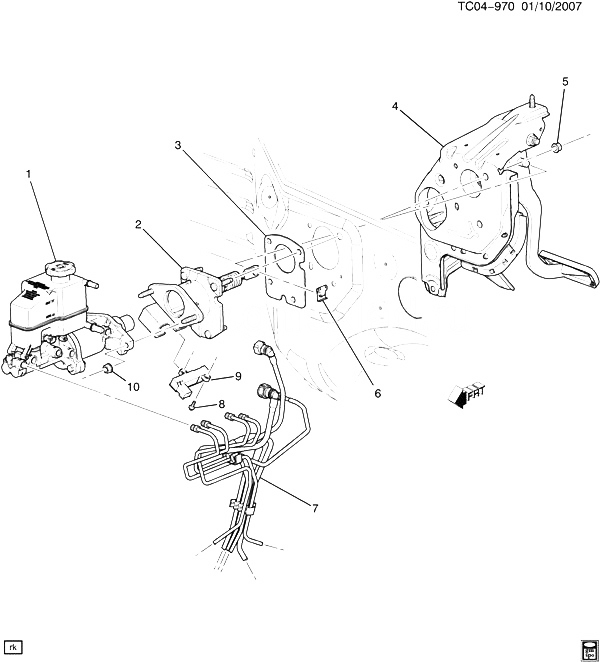

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
CYLINDER, BRK MAS (SEE GROUP 04.000 BRAKE MASTER CYLINDER FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 002 |
25862232 |
ADAPTER, BRK M/CYL (INCLS 8, 9) |
CK107 (06) (J92) |
2009-2011 |
02 |
| 003 |
15181785 |
GASKET, P/B BOOS |
CK1, 2, 3 (JH6, JH7, JK4, J92) |
2010-2010 |
01 |
| 004 |
|
PEDAL, BRK ACCEL (W/BRKT) (SEE GROUP 04.000 BRAKE PEDAL MOUNTING FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 005 |
11517996 |
NUT, P/B BOOS (M10X1.5, 11.2THK) (21.5 OD) (8.917) (ACDelco #11517996) |
CK1, 2, 3 |
2008-2013 |
04 |
| 006 |
11569844 |
RETAINER, BRK PED PUSH ROD (WITH BOLT) |
CK1, 2, 3 |
2008-2013 |
01 |
| 007 |
|
PIPE, BRK PRESS MOD VLV (SEE GROUP 04.000 BRAKE LINES/FRONT PART 1 FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 008 |
11570355 |
BOLT, HEX WASHER HEAD, M5X0.8X16, 9 THD, 11.3 OD, 8.8, GMW3044. (PART OF 2) |
|
2008-2013 |
04 |
| 009 |
15879140 |
SENSOR, BRK M/CYL PRIM PSTN POSN (INCLS 2) |
CK107 (06) (J92) |
2008-2013 |
01 |
| 010 |
11517996 |
NUT, BRK M/CYL (M10X1.5, 11.2THK) (21.5 OD) (8.917) (ACDelco #11517996) |
CK1, 2, 3 |
2008-2013 |
02 |
