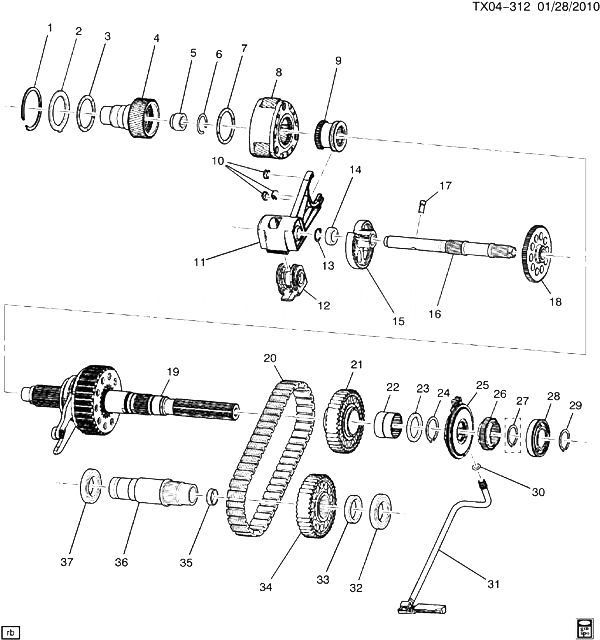

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 004 |
19299088 |
SHAFT, TRFER CASE INPUT (INCLS 5) (REF TSB 12-04-21-001A FOR DES STORY BEFORE ORDERING) (FOR 1ST DES SEE 19132978) |
K1 (M99, NQH) (2ND DES) |
2008-2013 |
01 |
| 005 |
19132983 |
BEARING, TRFER CASE INPUT SHF PILOT (PART OF 4) |
K1 (NQH) |
2007-2013 |
01 |
| 006 |
|
RING, TRFER CASE INPUT SHF PILOT BRG RET |
1 |
2008-2013 |
|
| 009 |
19260067 |
CLUTCH, TRFER CASE HIGH/LOW (REF TSB 12-04-21-001A FOR DES STORY BEFORE ORDERING) (FOR 2ND DES SEE19299093) |
K1 (M99, NQH) (1ST DES) |
2010-2010 |
01 |
| 009 |
19299093 |
CLUTCH, TRFER CASE HIGH/LOW (4.532) (REF TSB 12-04-21-001A FOR DES STORY BEFORE ORDERING) (FOR 1ST DES SEE 19260067) |
K1 (M99, NQH) (2ND DES) |
2010-2010 |
01 |
| 010 |
19133033 |
PAD, TRFER CASE HIGH/LOW SHFT FORK (PART OF 11) |
K1, 2 (NQH) |
2008-2013 |
03 |
| 011 |
19133031 |
FORK, TRFER CASE HIGH/LOW SHFT (INCLS 10) |
K1, 2 (NQH) |
2008-2013 |
01 |
| 012 |
19133034 |
SPRING, TRFER CASE HIGH/LOW SHFT FORK |
K1, 2 (NQH) |
2008-2013 |
01 |
| 013 |
19133027 |
RING, TRFER CASE TWO/FOUR WHL DRV ACTR CAM RET |
K1 (NQH) |
2007-2013 |
01 |
| 014 |
19133028 |
SPACER, TRFER CASE TWO/FOUR WHL DRV ACTR CAM |
K1, 2 (NQH) |
2008-2013 |
01 |
| 015 |
19133029 |
CAM, TRFER CASE TWO/FOUR WHL DRV ACTR |
K1, 2 (NQH) |
2008-2013 |
01 |
| 016 |
19133025 |
SHAFT, TRFER CASE TWO/FOUR WHL DRV ACTR |
K1 (NQH) |
2007-2013 |
01 |
| 016 |
19133025 |
SHAFT, TRFER CASE TWO/FOUR WHL DRV ACTR |
K1, 2 (NQH) |
2008-2012 |
01 |
| 017 |
19133202 |
PIN KIT, TRFER CASE HIGH/LOW SHFT FORK |
K1, 2 (NQH) |
2008-2013 |
01 |
| 018 |
19133138 |
GEAR, TRFER CASE TWO/FOUR WHL DRV ACTR SHF |
K1, 2 (NQH) |
2008-2013 |
01 |
| 019 |
|
SHAFT, TRFER CASE RR OUTPUT (SEE GROUP 04.000 TRANSFER CASE-CLUTCH COMPONENTS FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 020 |
19133129 |
CHAIN, TRFER CASE TWO/FOUR WHL DRV (7/16X1.25X84) |
K1 (NQH) |
2007-2013 |
01 |
| 001 |
19132997 |
RING, TRFER CASE HIGH/LOW PLNT CARR RET (FOR 2007-2013 BK1 NQG NQH ONLY-REF TSB 12-04-21-001 BEFORE ORDERING) (FOR 2ND DES SEE 15547397) |
K1, 2, 3 (NQG, NQH) (1ST DES) |
2007-2013 |
01 |
| 001 |
15547397 |
RING, TRFER CASE HIGH/LOW PLNT CARR RET (3 13/16 O.D. X 41/64 THK) (ACDelco #15547397) (FOR 2007-2013 BK1 NQG NQH ONLY-REF TSB 12-04-21-001 BEFORE ORDERING) (FOR 1ST DES SEE 19132997) |
K1, 2, 3 (NQG, NQH) (2ND DES) |
2007-2013 |
01 |
| 002 |
19132996 |
PLATE, TRFER CASE HIGH/LOW LKG (REF TSB 12-04-001 BEFORE ORDERING (FOR 2ND DES SEE 19300745) |
K1 (MYC, M30, M99, NQG, NQH) (1ST DES) |
2007-2013 |
01 |
| 002 |
19132996 |
PLATE, TRFER CASE HIGH/LOW LKG (REF TSB 12-04-001 BEFORE ORDERING (FOR 2ND DES SEE 19300745) |
K1 (MYC, M30, NQG, NQH) (1ST DES) |
2007-2013 |
01 |
| 002 |
19300745 |
PLATE, TRFER CASE HIGH/LOW LKG (REF TSB 12-04-001 BEFOREORDERING (FOR 1ST DES SEE 19132996) |
K1 (MYC, M30, M99, NQG, NQH) (2ND DES) |
2007-2013 |
01 |
| 002 |
19300745 |
PLATE, TRFER CASE HIGH/LOW LKG (REF TSB 12-04-001 BEFOREORDERING (FOR 1ST DES SEE 19132996) |
K1 (MYC, M30, NQG, NQH) (2ND DES) |
2007-2013 |
01 |
| 004 |
19132978 |
SHAFT, TRFER CASE INPUT (INCLS 5) (REF TSB 12-04-21-001A FOR DES STORY BEFORE ORDERING) (FOR 2ND DES SEE 19299088) |
K1 (M99, NQH) (1ST DES) |
2008-2013 |
01 |
| 021 |
19133205 |
SPROCKET KIT, TRFER CASE FRT OUTPUT SHF DRV |
K1 (NQH) |
2007-2013 |
01 |
| 022 |
19133111 |
BEARING, TRFER CASE FRT OUTPUT SHF DRV SPKT |
K1 (NQG, NQH, NQF) |
2007-2012 |
02 |
| 023 |
19133112 |
SPACER, TRFER CASE FRT OUTPUT SHF DRV SPKT (REAR) |
K1, 2 (NQH) |
2008-2013 |
01 |
| 024 |
19133113 |
RING, TRFER CASE TWO/FOUR WHL DRV SPKT RET |
K1 (NQG, NQH) |
2007-2013 |
01 |
| 025 |
19133114 |
PUMP, TRFER CASE OIL |
K1 (NQH) |
2007-2013 |
01 |
| 026 |
19178899 |
WHEEL, TRFER CASE RR OUTPUT SHF SPD RELUCTOR |
K1 (M99, NQH) |
2008-2013 |
01 |
| 026 |
19178899 |
WHEEL, TRFER CASE RR OUTPUT SHF SPD RELUCTOR (4.329) |
K1 (M99, NQH) |
2008-2013 |
01 |
| 028 |
88962351 |
BEARING, TRFER CASE RR OUTPUT SHF RR (ACDelco #88962351) |
K1 (NQH, M99) |
2008-2013 |
01 |
| 029 |
19178900 |
RING, TRFER CASE RR OUTPUT SHF RR BRG RET (ACDelco #19178900) |
K1 (M99, NQH) |
2008-2013 |
01 |
| 030 |
19133122 |
SEAL, TRFER CASE O/PMP SUC PIPE (PART OF 31) |
K1 (NQH) |
2007-2013 |
01 |
| 031 |
19133120 |
PIPE, TRFER CASE O/PMP SUC (INCLS 30) |
K1 (NQG, NQH) |
2007-2013 |
01 |
| 032 |
19133136 |
BEARING, TRFER CASE FRT OUTPUT SHF RR (ACDelco #19133136) |
K1, 2 (NQH) |
2007-2013 |
01 |
| 033 |
19169064 |
SPACER, TRFER CASE FRT OUTPUT SHF DRVN SPKT |
K1, 2 (NQH) |
2008-2013 |
01 |
| 034 |
19133134 |
SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN |
K1 (NQH) |
2007-2013 |
01 |
| 035 |
12473236 |
PLUG, TRFER CASE FRT OUTPUT SHF HOLE (4.510) |
K1, 2 (NQH) |
2008-2013 |
01 |
| 036 |
19259180 |
SHAFT, TRFER CASE FRT OUTPUT (REPL T/W 19259182) |
K1 (NQH) |
2007-2013 |
01 |
| 037 |
19133136 |
BEARING, TRFER CASE FRT OUTPUT SHF FRT (ACDelco #19133136) |
K1, 2 (NQH) |
2007-2013 |
01 |
