| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

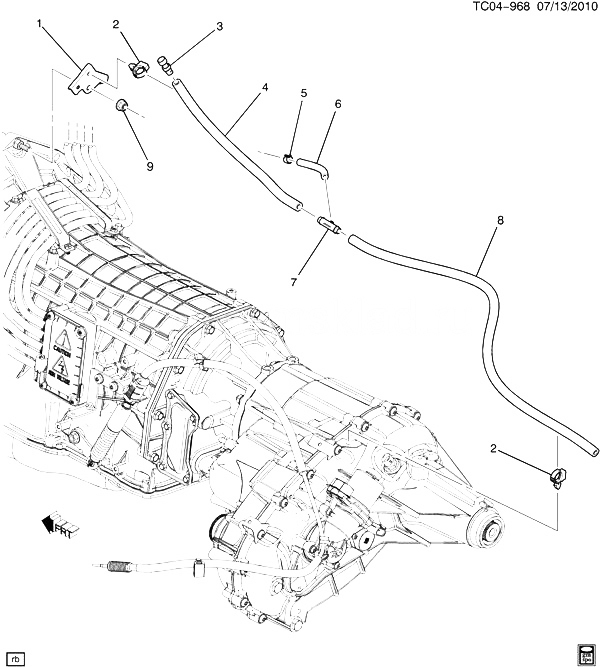

| 001 |
15854320 |
BRACKET, TRANS VENT HOSE CLIP (ACDelco #15854320) (CODE 0367, 4320) |
CK1, 2, 3 (MYC, MYD, M30, M99) |
2009-2011 |
01 |
| 002 |
08905794 |
CLIP, (TRANS VENT HOSE) |
|
2008-2010 |
02 |
| 003 |
25892279 |
VENT, A/TRNS (VENT STEM W/CAP) (4.510) (ACDelco #25892279) |
K1, 2, 3 (M99) |
2009-2010 |
01 |
| 003 |
25892279 |
VENT, A/TRNS (VENT STEM W/CAP) (4.510) (ACDelco #25892279) |
CK1 (M99) |
2010-2010 |
01 |
| 004 |
24254828 |
HOSE, TRANS VENT (0D 14MM/ID 8MM/LENGTH 320MM) |
CK1 (M99) |
2010-2010 |
01 |
| 005 |
25518880 |
CLAMP, HEX HD, WORM GEAR, .250-.625, .320 WIDE, SS (TRANS VENT HOSE) (8.948) (ACDelco #25518880) |
|
2008-2010 |
01 |
| 006 |
24254827 |
HOSE, TRANS VENT (10.3MM (.41IN)OD 50MM (2IN) L) (ACDelco #24254827) |
CK1 (M99) |
2010-2010 |
01 |
| 007 |
24254826 |
CONNECTOR, TRANS VENT HOSE (Y-CONN) |
CK1 (M99) |
2008-2010 |
01 |
| 008 |
24254829 |
HOSE, TRANS VENT (OD 14MM/ID 8MM/LENGTH 850MM) |
1 (M99) |
2010-2010 |
01 |
| 009 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (TRANS VENT HOSE CLIP BRKT) (8.915) (ACDelco #11514596) |
|
2008-2013 |
01 |
