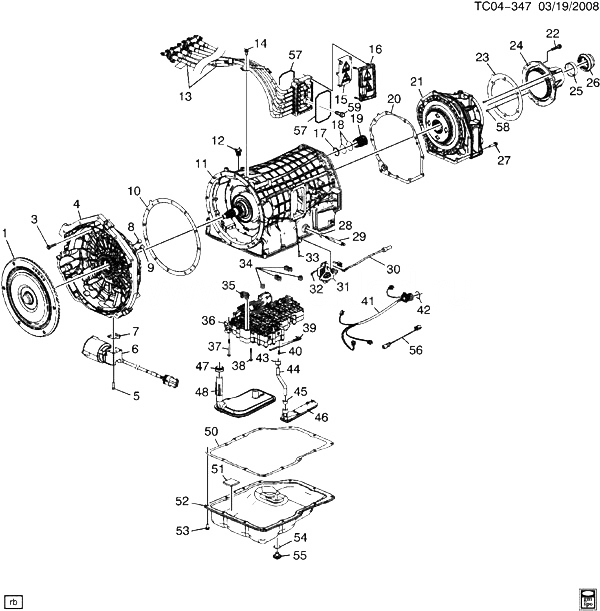

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 055 |
24233099 |
PLUG, A/TRNS FLUID PAN DRN (INCLS 54) (ACDelco #24233099) |
CK1 (M99) |
2008-2013 |
01 |
| 056 |
29544334 |
HARNESS, A/TRNS CONT WRG HARN EXTN |
CK1 (M99) |
2008-2013 |
01 |
| 057 |
19168300 |
SEAL, DRV MOT GEN PWR INV MDL CBL HSG CVR (HSG CVR) (*KIT2) |
CK1 (M99) |
2008-2013 |
02 |
| 058 |
|
PIN, TRANS CASE LOC (PART OF 21) (2WD ONLY) |
|
2008-2013 |
|
| 059 |
|
BOLT, DRV MOT GEN PWR INV MDL CBL TERM INSUL BLK (PART OF 13) |
|
2008-2013 |
|
| K01 |
19168277 |
FILTER KIT, A/TRNS FLUID (INCLS 43, 45-48) (ACDelco #19168277) |
CK1 (M99) |
2008-2013 |
01 |
| K02 |
19168275 |
SEAL KIT, A/TRNS SERV (INCLS 7, 10, 12, 17, 18, 20, 23, 26, 28, 34, 35, 42, 57) (FULL TRANS) |
CK1 (M99) |
2008-2013 |
01 |
| K03 |
19168276 |
SEAL KIT, A/TRNS SERV (INCLS 17, 18, 34, 35, 42) (CNTRL SOL VLV ASM) |
CK1 (M99) |
2008-2013 |
01 |
| 001 |
24255786 |
DAMPENER, A/TRNS TORQ |
CK1 (M99) |
2008-2013 |
01 |
| 003 |
29544332 |
BOLT, A/TRNS TORQ DPNR HSG |
CK1 (M99) |
2008-2013 |
12 |
| 004 |
|
HOUSING, A/TRNS TORQ DPNR (W/FLUID PMP) (SEE GROUP 04.000 INPUT HOUSING MODULE AND PUMP ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 005 |
29545091 |
BOLT, A/TRNS AUX FLUID PUMP |
CK1 (M99) |
2008-2013 |
04 |
| 006 |
19207983 |
PUMP, A/TRNS AUX FLUID |
CK1 (M99) |
2010-2013 |
01 |
| 007 |
29543727 |
GASKET, A/TRNS AUX FLUID PUMP (*KIT2) |
CK1 (M99) |
2008-2013 |
01 |
| 008 |
|
PLUG, A/TRNS TORQ DPNR FLUID PASG |
|
2008-2013 |
|
| 009 |
|
PLUG, A/TRNS FLUID PUMP VLV |
|
2008-2013 |
|
| 010 |
29544401 |
GASKET, A/TRNS TORQ DPNR HSG (*KIT2) |
CK1 (M99) |
2008-2013 |
01 |
| 011 |
|
CASE, A/TRNS (SEE GROUP 04.000 4TH CLUTCH ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 012 |
01259475 |
SEAL, TRANS FLUID FIL TUBE (*KIT2) (ACDelco #1259475) |
CK1 (M30, M99) |
2010-2013 |
01 |
| 013 |
24250325 |
CABLE, DRV MOT PWR INV MDL 3 PHASE (INCLS 15, 16, 59) (2.343) |
CK1 (M99) |
2008-2013 |
01 |
| 014 |
29544413 |
BOLT, DRV MOT GEN PWR INV MDL CBL RET (DL CBL RET) |
CK1 (M99) |
2008-2013 |
04 |
| 015 |
29544326 |
COVER, DRV MOT PWR INV MDL CBL TERM EXT BOLT PROTV (PART OF 13) |
CK1 (M99) |
2008-2013 |
01 |
| 016 |
29544327 |
COVER, DRV MOT PWR INV MDL 3 PHASE CBL (PART OF 13) |
CK1 (M99) |
2008-2013 |
01 |
| 017 |
|
SEAL, A/TRNS WRG CONN (PART OF 19) (*KIT2, KIT3) |
|
2008-2013 |
|
| 018 |
|
SEAL, A/TRNS WRG CONN (O RING) (PART OF 19) (*KIT2, KIT3) |
|
2008-2013 |
|
| 019 |
24239878 |
SLEEVE, A/TRNS ELEC CONN PASG (INCLS 17, 18) (ACDelco #24239878) |
CK1 (M99) |
2008-2013 |
01 |
| 020 |
29544388 |
GASKET, A/TRNS RR CASE (*KIT2) |
CK1 (M99) |
2008-2013 |
01 |
| 021 |
29547544 |
CASE, A/TRNS RR (INCLS 58) (SEE GROUP 04.000 REAR CASE ASSEMBLY COMPONENTS FOR DETAILED ILLUSTRATED VIEW) |
K1 (M99) |
2008-2013 |
01 |
| 023 |
|
GASKET, A/TRNS CASE EXTN (*KIT2) |
K |
2008-2013 |
|
| 024 |
|
EXTENSION, A/TRNS CASE (INCLS 25, 26) |
K |
2008-2013 |
|
| 025 |
|
BUSHING, OUTPUT SHF (PART OF 24) |
|
2008-2013 |
|
| 026 |
|
SEAL, OUTPUT SHF (PART OF 24) (*KIT2) |
K |
2008-2013 |
|
| 027 |
29544331 |
BOLT, TRANS RR CASE (0.683) |
CK1 (M99) |
2008-2013 |
12 |
| 028 |
24235861 |
SEAL, MAN SHFT SHF (*KIT2) (ACDelco #24235861) |
CK1 (M99) |
2008-2013 |
01 |
| 029 |
29546640 |
SHAFT, MAN SHFT |
CK1 (M99) |
2009-2013 |
01 |
| 030 |
29543655 |
ACTUATOR, PARK PAWL |
CK1 (M99) |
2008-2013 |
01 |
| 031 |
19181161 |
SWITCH KIT, A/TRNS MAN SHFT SHF POSN (INCLS 32, 33) |
CK1 (M99) |
2008-2013 |
01 |
| 032 |
|
BOLT, A/TRNS MAN SHFT SHF POSN SW (PART OF 31) |
|
2008-2013 |
|
| 033 |
|
PIN, MAN SHFT SHF (PART OF 31) |
|
2008-2013 |
|
| 034 |
|
SEAL, HYBRID LOW 1-2 CLU REG VLV (*KIT2, KIT3) |
|
2008-2013 |
|
| 035 |
|
SEAL, A/TRNS FLUID PUMP (*KIT2, KIT3) |
|
2008-2013 |
|
| 036 |
|
VALVE, CONT (W/BODY VLV) (SEE GROUP 04.000 HYDRAULIC CONTROL MODULE FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 037 |
29543806 |
BOLT, C/VLV UPR BODY |
K1 (M99) |
2009-2013 |
02 |
| 038 |
29543501 |
BOLT, C/VLV UPR BODY |
K1 (M99) |
2009-2013 |
04 |
| 039 |
29544320 |
DETENT, MAN SHFT |
CK1 (M99) |
2008-2013 |
01 |
| 040 |
24211635 |
BOLT, MAN SHFT DTNT SPR (M6X1.0X16) (ACDelco #24211635) |
CK1 (M99) |
2008-2013 |
01 |
| 041 |
29546932 |
HARNESS, A/TRNS WRG (INTERNAL TO TRNS-MAIN CONT HARNESS W/23 PIN CONN) (2.480) |
CK1 (M99) |
2008-2013 |
01 |
| 041 |
29546932 |
HARNESS, A/TRNS WRG (INTERNAL TO TRNS-MAIN CONT HARNESS W/23 PIN CONN) |
CK1 (M99) |
2008-2013 |
01 |
| 041 |
24259590 |
HARNESS, A/TRNS WRG (EXTERNAL TO TRNS-JMPR HARNESS AUX PMP CONT MODULE TO VEH HARN) |
CK1 (M99) |
2008-2011 |
01 |
| 041 |
24259590 |
HARNESS, A/TRNS WRG (EXTERNAL TO TRNS-JMPR HARNESS AUX PMP CONT MODULE TO VEH HARN) (2.480) |
CK1 (M99) |
2008-2011 |
01 |
| 042 |
|
SEAL, WRG CONN (*KIT2, KIT3) |
|
2008-2013 |
|
| 043 |
|
SEAL, A/TRNS AUX FLUID FLTR (*KIT1) |
|
2008-2013 |
|
| 044 |
29545042 |
PIPE, A/TRNS AUX FLUID PUMP OTLT |
CK1 (M99) |
2008-2013 |
01 |
| 045 |
|
SEAL, A/TRNS AUX FLUID FLTR (*KIT1) |
|
2008-2013 |
|
| 046 |
|
FILTER, A/TRNS AUX FLUID PUMP (*KIT1) |
|
2008-2013 |
|
| 047 |
|
SEAL, A/TRNS FLUID FLTR (*KIT1) |
|
2008-2013 |
|
| 048 |
|
FILTER, A/TRNS FLUID (*KIT1) |
|
2008-2013 |
|
| 050 |
29544375 |
GASKET, A/TRNS FLUID PAN (ACDelco #29544375) |
CK1 (M99) |
2008-2013 |
01 |
| 051 |
29532686 |
MAGNET, A/TRNS FLUID PAN (PART OF 52) (ACDelco #29532686) |
CK1 (M99) |
2008-2013 |
01 |
| 052 |
29544374 |
PAN, A/TRNS FLUID (INCLS 51) |
CK1 (M99) |
2008-2013 |
01 |
| 053 |
29544333 |
BOLT, A/TRNS FLUID PAN |
CK1 (M99) |
2010-2013 |
13 |
| 054 |
|
SEAL, A/TRNS FLUID PAN DRN PLUG (O RING) (PART OF 55) |
|
2008-2013 |
|
