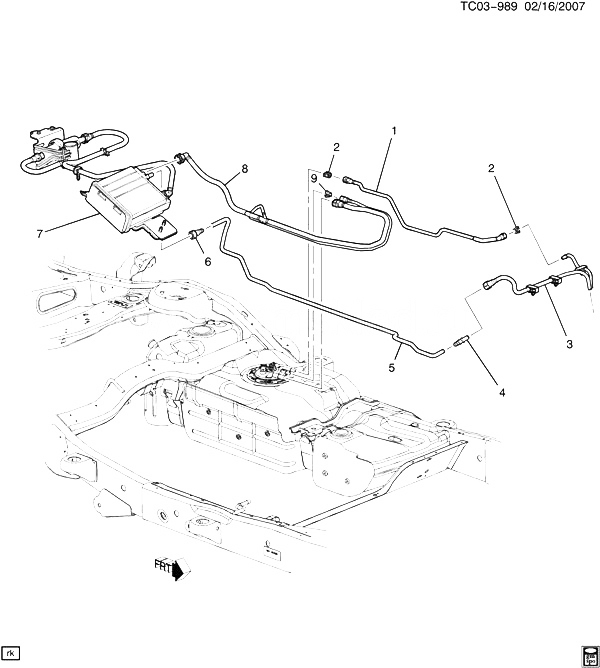

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25918137 |
HOSE, FUEL FEED (INCLS 2) |
CK107 (06) (LZ1) |
2010-2013 |
01 |
| 002 |
12522916 |
RETAINER KIT, FUEL FEED PIPE FTG (PART OF 1) (BLUE) (INCLS INST SHT RET) (USE WITH 5/16 TUBE, NYLON) |
CK107 (06) |
2008-2013 |
01 |
| 003 |
20916672 |
HOSE, FUEL FEED EVAP EMIS RTN (SEE GROUP 03.000 FUEL SUPPLY-FRONT FOR DETAILED ILLUSTRATED VIEW) |
CK107 (06) (LZ1) |
2010-2012 |
01 |
| 004 |
|
CONNECTOR, EVAP EMIS CNSTR PURGE HOSE (*KIT1) |
|
2010-2013 |
|
| 005 |
|
HOSE, EVAP EMIS CNSTR PURGE (*KIT1) |
|
2010-2013 |
|
| 006 |
|
CONNECTOR, EVAP EMIS CNSTR PURGE HOSE (*KIT1) |
|
2010-2013 |
|
| 007 |
|
CANISTER, EVAP EMIS (SEE GROUP 03.000 VAPOR CANISTER RELATED PARTS FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 008 |
|
HOSE, EVAP EMIS (*KIT1) |
|
2010-2013 |
|
| 009 |
|
CONNECTOR, EVAP EMIS HOSE (*KIT1) |
|
2010-2013 |
|
| K01 |
19180881 |
HOSE KIT, EVAP EMIS CNSTR (INCLS 4-6, 8, 9) |
CK107 (06) (LZ1) |
2010-2010 |
01 |
