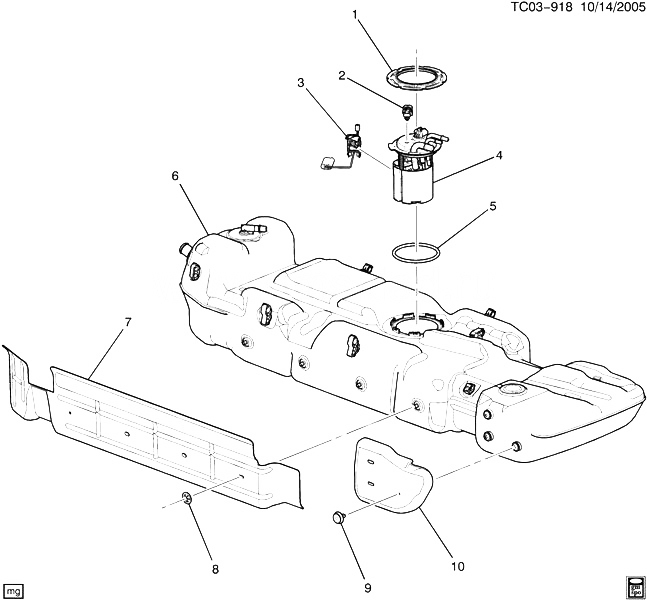

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
10325852 |
CAM, FUEL SDR (130 MM OPENING CAM LOCK RING) (3.115) (ACDelco #TR26) |
CK1, 2, 3 |
2007-2013 |
01 |
| 002 |
13502903 |
SENSOR, F/TNK PRESS (PART OF 4) (ACDelco #13502903) (ORDER T/W SENSOR COVER PN 20893611) |
CK1, 2 (06) |
2009-2013 |
01 |
| 003 |
19181001 |
SENSOR KIT, FUEL LVL (ACDelco #SK1305) |
CK107 (06) (LZ1) |
2010-2013 |
01 |
| 004 |
19258819 |
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 2, 5) (USE T/W 20893611) (ACDelco #19258819) |
CK107 (06) (LZ1) |
2010-2013 |
01 |
| 004 |
19258819 |
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 2, 5) (USE T/W 20893611) (3.107) (ACDelco #19258819) |
CK107 (06) (LZ1) |
2010-2013 |
01 |
| 005 |
22682111 |
SEAL, F/PMP (O RING) (PART OF 4) (APPROX SIZE147.5MM X 6MM) (ACDelco #G41) |
CK1, 2, 3 |
2007-2013 |
01 |
| 006 |
25920048 |
TANK, FUEL |
CK107 (06) (LZ1) |
2010-2013 |
01 |
| 007 |
15078884 |
SHIELD, F/TNK RR |
CK107 (06) |
2007-2013 |
01 |
| 008 |
10009923 |
NUT, BOLT RETAINING SPRING, M8X1.25, 25 O.D., ZOR (F/TNK SHLD) |
|
2007-2013 |
04 |
| 009 |
15168952 |
RETAINER, F/TNK H/SHLD |
CK107 (06) (LZ1) |
2010-2013 |
03 |
| 010 |
15286218 |
SHIELD, F/TNK HT |
CK107 (06) (LZ1) |
2010-2013 |
01 |
