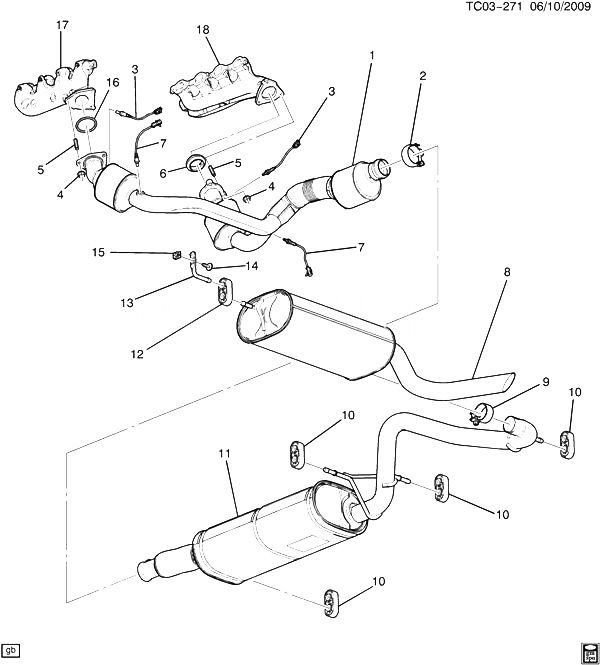

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20854453 |
CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) |
CK1 (LC9, LMG, LU3, LZ1, L20, NT7, NU1) |
2010-2010 |
01 |
| 001 |
20854453 |
CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) (3.685) |
CK1 (LC9, LMG, LU3, LZ1, L20, NT7, NU1) |
2010-2010 |
01 |
| 001 |
20854454 |
CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) |
CK1 (LC9, LZ1, LMG, L20, NU5) |
2010-2010 |
01 |
| 001 |
20854454 |
CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) (3.685) |
CK1 (LZ1, NT4) |
2010-2010 |
01 |
| 001 |
20854454 |
CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) |
CK1 (LZ1, NT4) |
2010-2010 |
01 |
| 001 |
20854454 |
CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) (3.685) |
CK1 (LC9, LZ1, LMG, L20, NU5) |
2010-2010 |
01 |
| 002 |
20779889 |
CLAMP, EXH PIPE (PART OF 11) |
CK1 |
2010-2010 |
01 |
| 003 |
12583804 |
SENSOR, HTD OXY (POSN 2) (MALE END) (TAKES FEMALE CONNECTOR) (ACDelco #213-3866) |
CK1, 2 (06-36) (LC9, LMG, LZ1, L9H, L94, L96) |
2010-2010 |
02 |
| 004 |
15709703 |
NUT, HEX 10X1.5THD, 21.8 OD SS (EXH MANIF PIPE) |
|
2010-2010 |
06 |
| 005 |
11589264 |
STUD, STRAIGHT, M10X1.5X30, M10X1.5X16, 57 TL, SS (EXH MANIF PIPE) |
|
2010-2010 |
06 |
| 006 |
15035747 |
SEAL, EXH MANIF PIPE |
CK1 (LC9, LMG, LU3, LZ1, L20, L9H, L94) |
2010-2010 |
01 |
| 007 |
12609457 |
SENSOR, HTD OXY (POSN 3) (MATING CONN W/LEADS USE 15306319) (ACDelco #213-4229) |
CK1, 2, 3 (LC9, LMG, LZ1, L20, L9H, L94) |
2010-2010 |
02 |
| 008 |
25786597 |
RESONATOR, EXH (610MM MUFFLER) |
CK107 (06) (LZ1) |
2010-2010 |
01 |
| 009 |
15103184 |
CLAMP, EXH PIPE (PART OF 11) (STAMPED 2.75 (69.85 MM) |
CK107 (06) (LZ1) |
2010-2010 |
01 |
| 010 |
15092802 |
INSULATOR, EXH MUFF HNGR |
CK1, 2, 3 |
2010-2010 |
AR |
| 011 |
25940555 |
MUFFLER, EXH (W/EXH PIPE) (INCLS 2, 9) |
CK107 (06) (LZ1) |
2010-2010 |
01 |
| 011 |
25940555 |
MUFFLER, EXH (W/EXH PIPE) (INCLS 2, 9) (3.701) |
CK107 (06) (LZ1) |
2010-2010 |
01 |
| 012 |
15092802 |
INSULATOR, EXH RESO HNGR |
CK107 (06) (LZ1) |
2010-2010 |
01 |
| 013 |
25900426 |
HANGER, EXH RESO |
CK107 (06) (LZ1) |
2010-2010 |
01 |
| 014 |
11589166 |
BOLT, HEX W/CON WA, M10X1.5X39.8, 25.45 THD, 28 OD, 10.9, GMW3359, M-PT (EXH RESO HNGR) |
|
2010-2010 |
01 |
| 015 |
10297656 |
NUT, EXH RESO HNGR (7.068) |
CK107 (06) (LZ1) |
2010-2010 |
01 |
| 016 |
15077362 |
SEAL, EXH MANIF PIPE |
CK1 |
2010-2010 |
01 |
| 017 |
12616285 |
MANIFOLD, EXH (SEE GROUP 00.000 ENGINE ASM-MANIFOLD FUEL RELATED PARTS FOR DETAILED ILLUSTRATED VIEW) (INCLS SHIELD, BOLTS) |
CK1 (LZ1, M99) |
2010-2010 |
01 |
| 018 |
12616286 |
MANIFOLD, EXH (SEE GROUP 00.000 ENGINE ASM-MANIFOLD FUEL RELATED PARTS FOR DETAILED ILLUSTRATED VIEW) (INCLS SHIELD, BOLTS) |
CK1 (LZ1, M99) |
2010-2010 |
01 |
