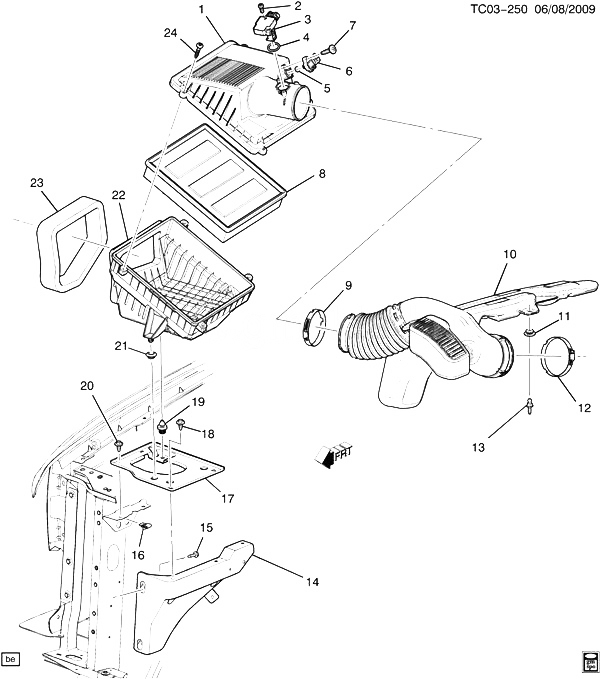

(TC03-250) 2010-2013 CK1 ВПУСКНАЯ ВОЗДУШНАЯ СИСТЕМА (LZ1/6.0J) CHEVROLET TAHOE HYBRID (4WD) 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25998076 CLEANER, AIR (INCLS 8, 19, 22-24) CK1 (LZ1) 2010-2013 01
002 11570290 BOLT, MASS AIRFLOW SEN CK1, 2, 3 2010-2013 02
003 10393948 SENSOR, MASS AIRFLOW (W/INT AIR TEMP SEN) (INCLS 4) (ACDelco #213-4343) CK1 (LZ1) 2010-2013 01
004 SEAL, MASS AIR FLOW SEN (PART OF 3) 2010-2013
005 SEAL, THROT INL ABSOLUTE PRESS SEN (PART OF 6) 2010-2013
006 12644228 SENSOR, MAP (INCLS 5) (ACDelco #12644228) CK1 (LZ1, M99) 2010-2013 01
007 11609456 SCREW, ROUND WASHER HD, M4.2X1.41X25, 17.8 THD, 11.1 OD, 6010M, GMW4205 (THROT INL ABSOLUTE PRESS SEN) 2010-2013 01
008 15908916 ELEMENT, A/CL (PART OF 1) (ACDelco #A3086C) CK1 (LZ1) 2010-2013 01
009 CLAMP, CHRG AIR CLR INL DUCT (PART OF 10) 2010-2013
010 25862231 DUCT, A/CL OTLT (INCLS 9, 11, 12) CK1 (LZ1) 2010-2013 01
011 25346092 INSULATOR, A/CL HSG (PART OF 10) (3.270) CK1 (LZ1) 2010-2013 01
012 CLAMP, CHRG AIR CLR OTLT DUCT (PART OF 10) 2010-2013
013 11562129 BOLT, A/CL OTLT DUCT CK1, 2, 3 (LC9, LMG, LY6, LZ1, L20, L9H, L94, L96) 2010-2010 01
014 20808321 SUPPORT, A/CL CK1 (HP2) 2010-2013 01
015 11516424 BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (A/CL ADAP SUPT) 2010-2013 02
016 11570097 NUT, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (BAT TRAY REINF) 2010-2013 02
017 22739021 BRACKET, A/CL ADAP (INCLS THREE GROMMETS) (INCLS 21) CK1, 2, 3 2010-2013 01
018 11514623 BOLT, HEX W/CON WA, M6X1X20 (A/CL ADAP) 2010-2013 02
019 25316546 FASTENER, A/CL (PART OF 1) CK1 (LZ1) 2010-2013 01
020 11516589 SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (A/CL ADAP) 2010-2013 02
021 25346092 INSULATOR, A/CL BRKT (PART OF 17) (3.270) CK1, 2, 3 2010-2010 03
022 HOUSING, A/CL LWR (PART OF 1) 2010-2013
023 22844822 SEAL, A/CL (PART OF 1) CK1 (LZ1) 2010-2013 01
024 11561933 BOLT, A/CL HSG CVR (PART OF 1) (M6X2.7X36) CK1 (LZ1) 2010-2013 04
