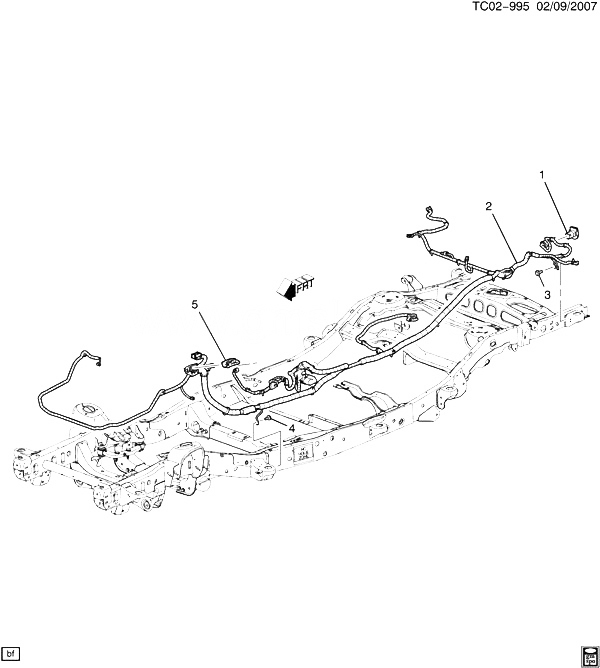

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12191503 |
RECEPTACLE, TOW VEH ELEC (W/DOOR) |
CK1, 2 (06-36) (EXC PPV) |
2008-2013 |
01 |
| 002 |
20893954 |
HARNESS, CHAS WRG |
CK1 (06) (HP2, X88, Z88) (EXC Y91) |
2010-2010 |
01 |
| 003 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (TRLR WRG HARN GND) |
|
2008-2013 |
01 |
| 004 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (ELEK BRK CONT WRG HARN GND) |
|
2008-2013 |
01 |
| 005 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) (W/DOOR) (7.068) |
|
2008-2013 |
|
