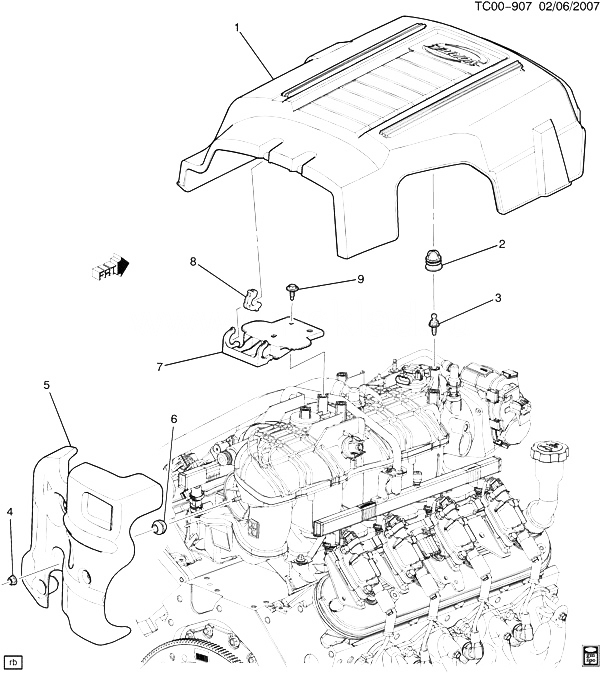

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12621051 |
COVER, INT MANIF (INCLS 2) (3.265) |
CK1 (LZ1) |
2010-2013 |
01 |
| 001 |
12621051 |
COVER, INT MANIF (INCLS 2) |
CK1 (LZ1) |
2010-2013 |
01 |
| 002 |
12596442 |
GROMMET, UPR INT MANIF SIGHT SHLD (PART OF 1) (22.2X28.1) |
CK1 (LZ1) |
2010-2013 |
02 |
| 003 |
11609319 |
STUD, INT MANIF SIGHT SHLD (M6X1X20.65) (3.671) |
CK1 (LZ1) |
2010-2013 |
02 |
| 004 |
11516075 |
NUT, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (UPR INT MANIF CVR) |
|
2008-2013 |
01 |
| 005 |
12610052 |
COVER, UPR INT MANIF (INCLS 6) |
CK1, 2, 3 (LC9, LMG, LY6, LZ1, L20, L9H, L94, L96) |
2010-2010 |
01 |
| 006 |
12559065 |
GROMMET, UPR INT MANIF SIGHT SHLD (PART OF 5) (12.0 DIA) |
CK1, 2, 3 (LC9, LMG, LY6, LZ1, L20, L9H) |
2010-2010 |
01 |
| 007 |
15858430 |
RETAINER, UPR INT MANIF SIGHT SHLD (INCLS 8) |
CK1 (LZ1) |
2010-2013 |
01 |
| 008 |
|
INSULATOR, UPR INT MANIF CVR (PART OF 7) |
|
2010-2013 |
|
| 009 |
11514623 |
BOLT, HEX W/CON WA, M6X1X20 (UPR INT MANIF SIGHT SHLD) |
|
2008-2013 |
03 |
