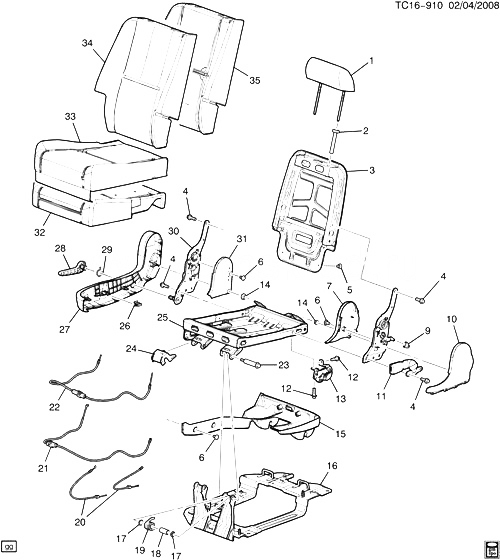

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15824668 |
RESTRAINT, R/SEAT HD (EBONY) |
CK107 (06) (AM8, 196, 226, 846) |
2009-2009 |
02 |
| 001 |
15824669 |
RESTRAINT, R/SEAT HD (CASHMERE) |
CK107 (06) (AM8, 313, 333) |
2008-2009 |
02 |
| 001 |
15824669 |
RESTRAINT, R/SEAT HD (CASHMERE) |
CK107 (06) (AM8, 316, 336) |
2009-2009 |
02 |
| 001 |
15824670 |
RESTRAINT, R/SEAT HD (TITANIUM) |
CK107 (06) (AM8, 833) |
2008-2009 |
02 |
| 001 |
15824670 |
RESTRAINT, R/SEAT HD (TITANIUM) |
CK107 (06) (AM8, 836) |
2009-2009 |
02 |
| 001 |
15824672 |
RESTRAINT, R/SEAT HD (EBONY) |
CK1 (06) (AM8, 197) |
2009-2009 |
02 |
| 001 |
15865811 |
RESTRAINT, R/SEAT HD (TITANIUM) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758015) |
CK107 (06) (AM8, 83C) (1ST DES) |
2009-2009 |
02 |
| 001 |
20758013 |
RESTRAINT, R/SEAT HD (EBONY) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 25863652) |
CK107 (06) (AM8, 19C) (2ND DES) |
2009-2009 |
02 |
| 001 |
20758014 |
RESTRAINT, R/SEAT HD (CASHMERE) |
CK107 (06) (AM8, 31C, 33C) |
2009-2009 |
02 |
| 001 |
20758015 |
RESTRAINT, R/SEAT HD (TITANIUM) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 15865811) |
CK107 (06) (AM8, 83C) (2ND DES) |
2009-2009 |
02 |
| 001 |
25863652 |
RESTRAINT, R/SEAT HD (EBONY) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758013) |
CK107 (06) (AM8, 19C) (1ST DES) |
2009-2009 |
02 |
| 001 |
25928791 |
RESTRAINT, R/SEAT HD (CASHMERE) |
CK1 (06) (AM8, 397) |
2009-2009 |
02 |
| 002 |
15279347 |
GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) |
CK1, 2 (06) (19I, 22I, 84I) |
2008-2009 |
02 |
| 002 |
15279348 |
GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) |
CK1, 2 (06-36) (31I, 33I, 39I) |
2008-2009 |
02 |
| 002 |
15279349 |
GUIDE, R/SEAT H/RST (TITANIUM) (W/BUTTON) |
CK1, 2 (06) (83I) |
2008-2009 |
02 |
| 002 |
15279351 |
GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) |
CK1, 2 (06) (AM8, 19I, 22I) |
2008-2009 |
02 |
| 002 |
15279352 |
GUIDE, R/SEAT H/RST (CASHMERE) (W/O BUTTON) |
CK1, 2 (06) (31I, 33I, 39I) |
2008-2009 |
02 |
| 002 |
15279353 |
GUIDE, R/SEAT H/RST (TITANIUM) (W/O BUTTON) |
CK1, 2 (06-36) (83I) |
2008-2009 |
02 |
| 003 |
15269763 |
FRAME, R/SEAT BK CUSH |
CK1, 2 (06) (AM8) |
2008-2009 |
01 |
| 004 |
11562378 |
BOLT-HFH, M10X1.5X30, 18 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) |
|
2008-2009 |
12 |
| 005 |
15924924 |
RETAINER, R/SEAT BK CUSH OPG FIN CVR (PUSH IN) |
CK1, 2 (06) (AM8, HP2) |
2008-2009 |
12 |
| 006 |
11570116 |
SCREW -PAN HD, M6X1X10, 10 THD, 12 OD, STL SAE J1237, S424, TAPTITE ITE (R/SEAT LAT FIN CVR) (8.913) |
|
2008-2009 |
07 |
| 009 |
15279464 |
KNOB, R/SEAT LAT (EBONY) (USED IN PLACE OF ALL COLORS) (16.716)
| CK1, 2, 3 |
2008-2009 |
02 |
|
| 011 |
19121593 |
РЕМЕНЬ БЕЗОПАСНОСТИ, ЗАДНЕЕ СИДЕНЬЕ (BKL SI) (SINGLE BKL) (EBONY)
| CK1, 2 (06) (AM8, 19I) |
2009-2009 |
01 |
|
| 011 |
19121595 |
РЕМЕНЬ БЕЗОПАСНОСТИ, ЗАДНЕЕ СИДЕНЬЕ (BKL SI) (CASHMERE) |
CK1, 2 (06) (AM8, 33I, 39I) |
2009-2009 |
01 |
| 011 |
19121596 |
РЕМЕНЬ БЕЗОПАСНОСТИ, ЗАДНЕЕ СИДЕНЬЕ (BKL SI) (SINGLE BKL) (TITANIUM) |
CK1, 2 (06) (AM8, 83I) |
2008-2009 |
01 |
| 012 |
|
БОЛТ, R/SEAT LAT |
|
2008-2009 |
|
| 014 |
11562384 |
ГАЙКА, HFH, M4X.7 THD, 4.75 THK, 10.5 OD, GM510M (9)STL, GM4435M-CODE A (R/SEAT FLR FIL T/PNL) |
|
2008-2009 |
02 |
| 017 |
11562380 |
BUSHING, R/SEAT HGE |
CK1, 2 (06) (AM8) |
2008-2009 |
08 |
| 025 |
|
FRAME, R/SEAT CUSH |
1, 2 (06) |
2008-2009 |
|
| 026 |
|
RETAINER, R/SEAT FLR FIL T/PNL (PART OF 10, 27) |
|
2008-2009 |
|
| 028 |
15279419 |
HANDLE, R/SEAT RECL (INCLS 29) (EBONY) |
CK1, 2 (06) (19I, 22I, 84I) |
2008-2009 |
01 |
| 028 |
15279420 |
HANDLE, R/SEAT RECL (INCLS 29) (CASHMERE) |
CK1, 2 (06) (31I, 33I, 39I) |
2008-2009 |
01 |
| 028 |
15279429 |
HANDLE, R/SEAT RECL (INCLS 29) (TITANIUM) |
CK1, 2 (06) (83I) |
2008-2009 |
01 |
| 029 |
|
RETAINER, R/SEAT ADJR RLR (PART OF 28) |
|
2008-2009 |
|
| 032 |
25816418 |
PAD, R/SEAT CUSH |
CK107 (06) (AM8, HP2) |
2008-2009 |
01 |
| 033 |
25816429 |
COVER, R/SEAT CUSH (EBONY) |
CK107 (06) (AM8, HP2, 193) |
2008-2009 |
01 |
| 033 |
25816430 |
COVER, R/SEAT CUSH (CASHMERE) |
CK107 (06) (AM8, HP2, 313, 333) |
2008-2009 |
01 |
| 033 |
25816431 |
COVER, R/SEAT CUSH (TITANIUM) |
CK107 (06) (AM8, HP2, 833) |
2008-2009 |
01 |
| 033 |
25949198 |
COVER, R/SEAT CUSH (EBONY) |
CK1 (06) (AM8, HP2, KA6, Y91, Z88, 197) |
2009-2009 |
01 |
| 033 |
25949199 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1 (06) (AM8, HP2, KA6, Y91, Z88, 397) |
2009-2009 |
01 |
| 034 |
15865525 |
COVER, R/SEAT BK CUSH (EBONY) |
CK1, 2 (06) (AM8, 193) (EXC KB6) |
2009-2009 |
01 |
| 034 |
15865526 |
COVER, R/SEAT BK CUSH (CASHMERE) |
CK1, 2 (06) (AM8, 333) (EXC KB6) |
2009-2009 |
01 |
| 034 |
15865527 |
COVER, R/SEAT BK CUSH (TITANIUM) |
CK1, 2 (06) (AM8, 833) (EXC KB6) |
2009-2009 |
01 |
| 034 |
15914204 |
COVER, R/SEAT BK CUSH (EBONY) |
CK1, 2 (06) (AM8, 19C, 5T5) |
2009-2009 |
01 |
| 034 |
20758111 |
COVER, R/SEAT BK CUSH (EBONY) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 25970991) |
CK1, 2 (06) (AM8, 19C) (EXC 5T5) (2ND DES) |
2009-2009 |
01 |
| 034 |
20758112 |
COVER, R/SEAT BK CUSH (CASHMERE) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 25970992) |
CK1, 2 (06) (AM8, 33C) (2ND DES) |
2009-2009 |
01 |
| 034 |
20758113 |
COVER, R/SEAT BK CUSH (TITANIUM) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 25970993) |
CK1, 2 (06) (AM8, 83C) (2ND DES) |
2009-2009 |
01 |
| 034 |
25970991 |
COVER, R/SEAT BK CUSH (EBONY) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758111) |
CK1, 2 (06) (AM8, 19C) (EXC 5T5) (1ST DES) |
2009-2009 |
01 |
| 034 |
25970992 |
COVER, R/SEAT BK CUSH (CASHMERE) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758112) |
CK1, 2 (06) (AM8, 33C) (1ST DES) |
2009-2009 |
01 |
| 034 |
25970993 |
COVER, R/SEAT BK CUSH (EBONY) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758113) |
CK1, 2 (06) (AM8, 83C) (1ST DES) |
2009-2009 |
01 |
| 035 |
15291598 |
PAD, R/SEAT BK CUSH |
CK1, 2 (06) (AM8) |
2008-2009 |
01 |
