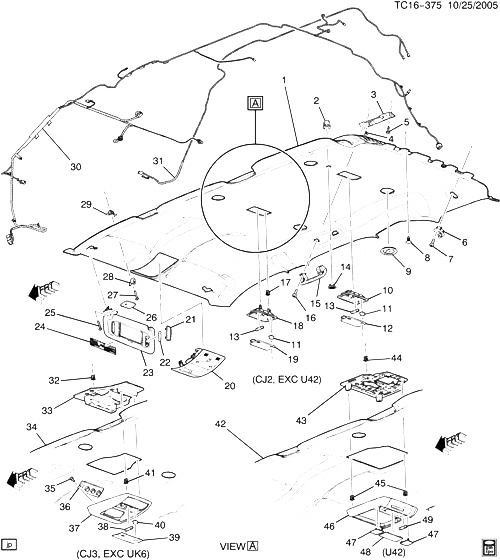

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 002 |
25903301 |
ASPIRATOR, I/S AIR TEMP SEN (ACDelco #15-51256)
| CK1, 2, 3 (CJ2) |
2007-2009 |
01 |
|
| 003 |
15774330 |
BRACKET, R/RL RR ASST HDL |
CK1, 2, 3 |
2007-2009 |
02 |
| 004 |
15958694 |
RETAINER, R/RL RR ASST HDL (PUSH IN) (BLACK) (7.6DIA X 22.9 MM) (X-MAS TREE) (FOR HOLE 6.30-6.55 DIA) (16.850) |
CK1, 2, 3 |
2007-2009 |
02 |
| 005 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (R/RL RR ASST HDL BRKT)
|
2007-2009 |
04 |
|
| 006 |
20760385 |
HOOK, COAT (INCLS 7) (GRAY) (BEZEL W/FINGERS) |
CK1, 2, 3 (19I, 22I, 31I, 33I, 83I, 84I, 88I) |
2007-2009 |
02 |
| 006 |
20760388 |
HOOK, COAT (INCLS 7) (CASHMERE) |
CK1, 2 (06) (33I, 39I) |
2009-2009 |
02 |
| 006 |
25837307 |
HOOK, COAT (INCLS 7) (GRAY) (W/O FINGERS)
| CK1, 2 (06) (19I, 83I, 84I) |
2008-2009 |
02 |
|
| 007 |
11609649 |
SCREW-PAN HD, M6X1X20, 15 THD 11.25 OD, 6202M STL, GMW3044, TAPTITE 200 (PART OF 6) (8.913) |
|
2007-2009 |
02 |
| 008 |
15126552 |
RETAINER, HDLNG T/PNL (GRAY) (26.3MM DIA 6.85)
| CK107 (06) (CJ2, CJ3, 19I, 83I, 84I) |
2007-2009 |
01 |
|
| 008 |
15248143 |
RETAINER, HDLNG T/PNL (CASHMERE) |
CK107 (06) (CJ2, CJ3, 33I, 39I) |
2007-2009 |
01 |
| 009 |
10393498 |
DEFLECTOR, AUX A/C AIR OTLT (PART OF 1, 34, 42) (CASHMERE) |
CK107, 109, 2 (06) (33I, 39I) |
2009-2009 |
04 |
| 009 |
15217394 |
DEFLECTOR, AUX A/C AIR OTLT (PART OF 1, 34, 42) (GRAY) |
CK107, 109, 2 (06) (19I, 83I) |
2009-2009 |
04 |
| 010 |
15940146 |
LAMP, DM RDG (2ND ROW) (3RD ROW (INCLS 11-13) (OPAL GRAY) |
CK107 (06) (ASF, CJ2, 19I, 83I) (EXC U42) |
2009-2009 |
01 |
| 010 |
15940147 |
LAMP, DM RDG (2ND ROW) (3RD ROW (INCLS 11-13) (CASHMERE) |
CK107, 109, 2 (06) (ASF, CJ2, 22I, 33I, 39I) (EXC U42) |
2009-2009 |
01 |
| 010 |
15940150 |
LAMP, DM RDG (3RD ROW) (3RD ROW (INCLS 11-13) (GRAY)
| CK107 (06) (ASF, CJ2, 19I, 83I, 84I) (EXC CF5) |
2009-2009 |
01 |
|
| 010 |
15940150 |
LAMP, DM RDG (3RD ROW) (3RD ROW (INCLS 11-13) (GRAY)
| CK107 (06) (ASF, CJ3, 19I, 83I) (EXC PPV, UK6, 5W4) |
2009-2009 |
01 |
|
| 010 |
15940150 |
LAMP, DM RDG (3RD ROW) (3RD ROW (INCLS 11-13) (GRAY)
| CK107 (06) (ASF, CJ3, PPV, 5W4, 19I) |
2009-2009 |
01 |
|
| 010 |
15940150 |
LAMP, DM RDG (3RD ROW) (3RD ROW (INCLS 11-13) (GRAY)
| CK107 (06) (ASF, CJ3, UK6, 19I, 83I, 84I) (EXC 5W4) |
2009-2009 |
01 |
|
| 010 |
15940151 |
LAMP, DM RDG (3RD ROW) (3RD ROW (INCLS 11-13) (CASHMERE) |
CK107 (06) (ASF, CJ2, 22I, 33I, 39I) |
2009-2009 |
01 |
| 010 |
15940151 |
LAMP, DM RDG (3RD ROW) (3RD ROW (INCLS 11-13) (CASHMERE) |
CK107 (06) (ASF, CJ3, 33I) (EXC UK6) |
2009-2009 |
01 |
| 010 |
15940151 |
LAMP, DM RDG (3RD ROW) (3RD ROW (INCLS 11-13) (CASHMERE) |
CK107 (06) (ASF, CJ3, UK6, 22I, 33I) |
2009-2009 |
01 |
| 011 |
15853948 |
PUSHBUTTON, RDG LP SW (PART OF 10, 18) |
CK1, 2, 3 |
2007-2009 |
02 |
| 012 |
15853946 |
LENS, DM RDG LP (3RD ROW LAMP) (PART OF 10) |
CK1, 2, 3 |
2007-2009 |
01 |
| 013 |
19116011 |
BULB, C/LP (PART OF 10, 18) (ACDelco #19116011) |
CK1, 2, 3 |
2007-2009 |
02 |
| 014 |
15075507 |
GRILLE, I/S AIR TEMP SEN ASPIRATOR (GRAY) |
CK1, 2 (06) (19I, 83I) |
2009-2009 |
02 |
| 014 |
15250566 |
GRILLE, I/S AIR TEMP SEN ASPIRATOR (CASHMERE) |
CK1, 2 (06) (33I, 39I) |
2009-2009 |
02 |
| 016 |
11609649 |
SCREW-PAN HD, M6X1X20, 15 THD 11.25 OD, 6202M STL, GMW3044, TAPTITE 200 (PART OF 15) (8.913) |
|
2007-2009 |
04 |
| 017 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 18)
|
2007-2009 |
01 |
|
| 018 |
15940146 |
LAMP, DM RDG (2ND ROW) (INCLS 11, 13, 17, 19) (OPAL GRAY) |
CK107 (06) (ASF, CJ2, 19I, 83I) (EXC U42) |
2009-2009 |
01 |
| 018 |
15940147 |
LAMP, DM RDG (2ND ROW) (INCLS 11, 13, 17, 19) (CASHMERE) |
CK107, 109, 2 (06) (ASF, CJ2, 22I, 33I, 39I) (EXC U42) |
2009-2009 |
01 |
| 018 |
15940150 |
LAMP, DM RDG (3RD ROW) (INCLS 11, 13, 17, 19) (GRAY)
| CK107 (06) (ASF, CJ2, 19I, 83I, 84I) (EXC CF5) |
2009-2009 |
01 |
|
| 018 |
15940150 |
LAMP, DM RDG (3RD ROW) (INCLS 11, 13, 17, 19) (GRAY)
| CK107 (06) (ASF, CJ3, 19I, 83I) (EXC PPV, UK6, 5W4) |
2009-2009 |
01 |
|
| 018 |
15940150 |
LAMP, DM RDG (3RD ROW) (INCLS 11, 13, 17, 19) (GRAY)
| CK107 (06) (ASF, CJ3, PPV, 5W4, 19I) |
2009-2009 |
01 |
|
| 018 |
15940150 |
LAMP, DM RDG (3RD ROW) (INCLS 11, 13, 17, 19) (GRAY)
| CK107 (06) (ASF, CJ3, UK6, 19I, 83I, 84I) (EXC 5W4) |
2009-2009 |
01 |
|
| 018 |
15940151 |
LAMP, DM RDG (3RD ROW) (INCLS 11, 13, 17, 19) (CASHMERE) |
CK107 (06) (ASF, CJ2, 22I, 33I, 39I) |
2009-2009 |
01 |
| 018 |
15940151 |
LAMP, DM RDG (3RD ROW) (INCLS 11, 13, 17, 19) (CASHMERE) |
CK107 (06) (ASF, CJ3, 33I) (EXC UK6) |
2009-2009 |
01 |
| 018 |
15940151 |
LAMP, DM RDG (3RD ROW) (INCLS 11, 13, 17, 19) (CASHMERE) |
CK107 (06) (ASF, CJ3, UK6, 22I, 33I) |
2009-2009 |
01 |
| 019 |
15853946 |
LENS, DM RDG LP (2ND ROW LAMP) (PART OF 18) |
CK1, 2, 3 |
2007-2009 |
01 |
| 020 |
|
CONSOLE, RF (СМ. ГРУППУ 16.000 КОНСОЛЬ/КРЫША FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2009 |
|
| 021 |
15853950 |
LENS, S/S ILLUM MIR LP (PART OF 23) (GRAY) |
CK1, 2 (06-36) (AL0, DH6, 19I, 83I) |
2009-2009 |
02 |
| 021 |
15853951 |
LENS, S/S ILLUM MIR LP (PART OF 23) (CASHMERE) |
CK1 (06-36) (AL0, DH6, 33I, 39I) |
2009-2009 |
01 |
| 022 |
13502343 |
BULB, S/S ILLUM MIR LP (PART OF 23) (8.991) (ACDelco #13502343) |
CK1, 2, 3 |
2007-2009 |
02 |
| 023 |
25945132 |
SUNSHADE, (INCLS 21, 22, 24, 25) (GRAY) |
CK1, 2 (06-36) (AL0, DH6, 19I, 83I) |
2009-2009 |
01 |
| 023 |
25945133 |
SUNSHADE, (INCLS 21, 22, 24, 25) (CASHMERE)
| CK1, 2 (06-36) (AL0, DH6, 22I, 31I, 33I, 39I) |
2007-2009 |
01 |
|
| 023 |
25945137 |
SUNSHADE, (INCLS 21, 22, 24, 25) (GRAY) |
CK1, 2 (06-36) (AL0, DH6, 19I, 83I) |
2009-2009 |
01 |
| 023 |
25945138 |
SUNSHADE, (INCLS 21, 22, 24, 25) (CASHMERE) |
CK1, 2 (06-36) (AL0, DH6, 33I, 39I) |
2009-2009 |
01 |
| 024 |
|
LABEL, INFL RST SYS WRNG (PART OF 23) |
|
2007-2009 |
|
| 025 |
11610271 |
SCREW, PAN HD, M4.2X1.41X25, 20.5 THD, 8 OD, 6010M, GMW4205, T15 TORX, AB-PT (PART OF 23) |
|
2007-2009 |
06 |
| 026 |
15828264 |
COVER, S/S SUPT BOLT (GRAY) |
CK1, 2, 3 (19I, 31I, 33I, 83I, 84I, 85I, 88I) |
2007-2009 |
01 |
| 026 |
15828266 |
COVER, S/S SUPT BOLT (CASHMERE) |
CK1, 2 (06-36) (22I, 31I, 33I, 39I) |
2007-2009 |
01 |
| 026 |
15828268 |
COVER, S/S SUPT BOLT (GRAY) |
CK1, 2, 3 (19I, 31I, 33I, 83I, 84I, 85I, 88I) |
2007-2009 |
01 |
| 026 |
15828270 |
COVER, S/S SUPT BOLT (CASHMERE) |
CK1, 2 (06-36) (22I, 31I, 33I, 39I) |
2007-2009 |
01 |
| 027 |
11516440 |
SCREW (PART OF 28) |
|
2007-2009 |
02 |
| 028 |
15893661 |
RETAINER, S/S (INCLS 27, 29) (CASHMERE) |
CK1, 2 (06-36) (22I, 31I, 33I, 39I) |
2007-2009 |
02 |
| 029 |
11609314 |
CLIP, S/S SUPT (PART OF 28) (4.2 X 1.41) (12.8 HOLE)
| CK1, 2 (06-36) |
2007-2009 |
02 |
|
| 030 |
|
HARNESS, RF ACSRY WRG (PART OF 1, 34, 42) |
|
2008-2009 |
|
| 031 |
15289725 |
CABLE, RDO ANT (PART OF 1, 34, 42) (ACDelco #15289725) (USED W/ANT MDL LABELED 15877496 OR 15877497) (FOR 2ND DES SEE25994421) |
CK107 (06) (1ST DES) |
2009-2009 |
01 |
| 031 |
25994421 |
CABLE, RDO ANT (PART OF 1, 34, 42) (USED W/ANT LABELED 25943786 OR 25943787) (FOR 1ST DES SEE 15289725) |
CK107 (06) (2ND DES) |
2009-2009 |
01 |
| 032 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 33)
|
2007-2009 |
04 |
|
| 033 |
15833005 |
RETAINER, RF RR CNSL (INCLS 32) (HVAC BACKPLATE) |
CK107 (06) (CJ3) |
2007-2009 |
01 |
| 034 |
20866448 |
PANEL, HDLNG TR (INCLS 9, 30, 31) (GRAY) |
CK107 (06) (ASF, CJ3, 19I, 83I) (EXC PPV, UK6, 5W4) |
2009-2009 |
01 |
| 034 |
20866449 |
PANEL, HDLNG TR (INCLS 9, 30, 31) (CASHMERE) |
CK107 (06) (ASF, CJ3, 33I) (EXC UK6) |
2009-2009 |
01 |
| 034 |
20866466 |
PANEL, HDLNG TR (INCLS 9, 30, 31) (GRAY) |
CK107 (06) (ASF, CJ3, PPV, 5W4, 19I) |
2009-2009 |
01 |
| 034 |
25877578 |
PANEL, HDLNG TR (INCLS 9, 30, 31) (GRAY) (BUILT PRIOR TO 02/01/09) (FOR 2ND DES SEE 25995036) |
CK107 (06) (ASF, CJ3, 19I, 83I) (EXC PPV, UK6, 5W4) (1ST DES) |
2009-2009 |
01 |
| 034 |
25877579 |
PANEL, HDLNG TR (INCLS 9, 30, 31) (CASHMERE) (BUILT PRIOR TO 02/01/09) (FOR 2ND DES SEE 25995037) |
CK107 (06) (ASF, CJ3, 33I) (EXC UK6) (1ST DES) |
2009-2009 |
01 |
| 034 |
25995036 |
PANEL, HDLNG TR (INCLS 9, 30, 31) (GRAY) (BUILT ON OR AFTER 02/01/09) (FOR 1ST DES SEE 25877578) |
CK107 (06) (ASF, CJ3, 19I, 83I) (EXC PPV, UK6, 5W4) (2ND DES) |
2009-2009 |
01 |
| 034 |
25995037 |
PANEL, HDLNG TR (INCLS 9, 30, 31) (CASHMERE) (BUILT ON OR AFTER 02/01/09) (FOR 1ST DES SEE 25877579) |
CK107 (06) (ASF, CJ3, 33I) (EXC UK6) (2ND DES) |
2009-2009 |
01 |
| 034 |
25995045 |
PANEL, HDLNG TR (INCLS 9, 30, 31) (GRAY) |
CK107 (06) (ASF, CJ3, PPV, 5W4, 19I) |
2009-2009 |
01 |
| 035 |
|
БОЛТ, RF CNSL (PART OF 37) |
|
2007-2009 |
|
| 036 |
15109353 |
CONTROL, AUX HTR A/C (9.273) (ACDelco #15-73427) |
CK107 (06) (ASF, CJ3) |
2009-2009 |
01 |
| 036 |
15109353 |
CONTROL, AUX HTR A/C (ACDelco #15-73427) |
CK107 (06) (ASF, CJ3) |
2009-2009 |
01 |
| 037 |
25853059 |
CONSOLE, RF (INCLS 35, 38-41) (CASHMERE) (2ND ROW DVD FACE PLT) (PO PNL ASM) |
CK1, 2 (33I, 39I) |
2009-2009 |
01 |
| 038 |
09431809 |
BULB, 6CP TRADE #212-2 (PART OF 37) (ACDelco #L212-2) |
|
2007-2009 |
02 |
| 039 |
15853944 |
LENS, RF CNSL C/LP (PART OF 37) (9.279) |
CK1, 2 (06) (CJ3) |
2008-2009 |
01 |
| 040 |
|
PUSHBUTTON, RDG LP SW (PART OF 37) |
|
2007-2009 |
|
| 041 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 37)
|
2007-2009 |
04 |
|
| 043 |
15287715 |
RETAINER, RF RR CNSL (INCLS 44) (DVD BCKPLT - 2ND ROW) (10.225) |
CK1, 2 (06-36) (ASF, CJ2, U42, X88, Z75, Z88) |
2007-2009 |
01 |
| 044 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 43)
|
2007-2009 |
02 |
|
| 045 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 46)
|
2007-2009 |
02 |
|
| 046 |
25853059 |
CONSOLE, RF (INCLS 45, 47-49) (CASHMERE) (2ND ROW DVD FACE PLT) (PO PNL ASM) |
CK1, 2 (33I, 39I) |
2009-2009 |
01 |
| 047 |
15853942 |
LENS, VIDEO PLYR R/CON SEN (PART OF 46) (RH DVD PUSH-PUSH) |
CK107 (06) (CJ2, U42, X88, Z88, Z75) |
2007-2009 |
01 |
| 047 |
15853942 |
LENS, VIDEO PLYR R/CON SEN (PART OF 46) (RH DVD PUSH-PUSH) |
CK107 (06) (AM8, KA6, KB6, 836) (EXC ARS, Y91) |
2009-2009 |
01 |
| 049 |
09431809 |
BULB, 6CP TRADE #212-2 (PART OF 46) (ACDelco #L212-2) |
|
2007-2009 |
01 |
