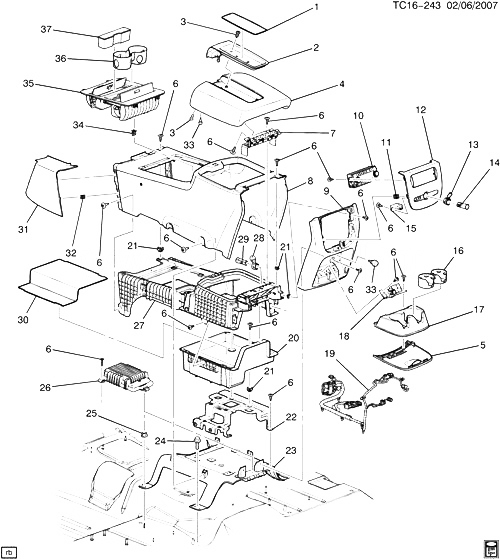

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15946301 |
LINER, F/FLR CNSL F/CMPT (PART OF 2, 4, 8)
| CK1, 2 (06-36) |
2007-2009 |
01 |
|
| 002 |
15134814 |
PUSHBUTTON, F/FLR CNSL COMPT DR LAT (INCLS 1) (PART OF 4, 8) (EBONY) |
CK1, 2, 3 (EXC Y91) |
2007-2009 |
01 |
| 003 |
|
БОЛТ, F/FLR CNSL COMPT (PART OF 4, 8) |
|
2007-2009 |
|
| 003 |
|
БОЛТ, F/FLR CNSL COMPT (PART OF 4, 8) |
|
2008-2009 |
|
| 004 |
15217111 |
ARMREST, F/FLR CNSL (INCLS 1-3, 6, 7, 33) (PART OF 8) (EBONY)
| CK1, 2 (06-36) (UK6, UQA, UQ3, 19I, 22I, 84I) (EXC Y91) |
2007-2009 |
01 |
|
| 004 |
15217112 |
ARMREST, F/FLR CNSL (INCLS 1-3, 6, 7, 33) (PART OF 8) (CASHMERE) |
CK1, 2, 3 (31I, 33I) (EXC Y91) |
2007-2009 |
01 |
| 004 |
15217113 |
ARMREST, F/FLR CNSL (INCLS 1-3, 6, 7, 33) (PART OF 8) (TITANIUM) |
CK1, 2, 3 (83I) (EXC Y91) |
2007-2009 |
01 |
| 005 |
15217105 |
PANEL, F/FLR CNSL R/CMPT DR (EBONY) |
CK1, 2, 3 (19I, 22I, 84I, 85I) |
2007-2009 |
01 |
| 005 |
15217106 |
PANEL, F/FLR CNSL R/CMPT DR (CASHMERE) |
CK1, 2, 3 (31I, 33I, 39I) |
2007-2009 |
01 |
| 005 |
15217107 |
PANEL, F/FLR CNSL R/CMPT DR (TITANIUM) |
CK1, 2, 3 (83I, 84I) |
2007-2009 |
01 |
| 006 |
11609459 |
SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (PART OF 8)
|
2007-2009 |
AR |
|
| 007 |
15134813 |
HINGE, F/FLR CNSL COMPT DR (PART OF 4, 8) (COMPARTMENT DOOR HINGE) |
CK1, 2, 3 |
2007-2009 |
01 |
| 007 |
15134821 |
HINGE, F/FLR CNSL COMPT DR (PART OF 4, 8) (REAR CUPHOLDER DOOR HINGE) |
CK1, 2, 3 |
2007-2009 |
01 |
| 008 |
20779648 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (EBONY) |
CK1, 2 (06) (KA6, UQA, U42, 19I) (EXC STZ, Y91) |
2009-2009 |
01 |
| 008 |
20779649 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (CASHMERE) |
CK1, 2 (06) (KA6, UQA, U42, 33I) (EXC STZ, UL8, Y91) |
2009-2009 |
01 |
| 008 |
20779650 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (TITANIUM) |
CK1, 2 (06) (KA6, UQA, U42, 83I) (EXC STZ, Y91) |
2009-2009 |
01 |
| 008 |
20779652 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (EBONY) |
CK1, 2 (06) (KA6, 19I) (EXC STZ, U42, Y91) |
2009-2009 |
01 |
| 008 |
20779653 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (CASHMERE) |
CK1, 2 (06) (KA6, 33I) (EXC STZ, U42, Y91) |
2009-2009 |
01 |
| 008 |
20779654 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (TITANIUM) |
CK1, 2 (06) (KA6, 83I) (EXC STZ, U42, Y91) |
2009-2009 |
01 |
| 008 |
20779657 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (CASHMERE) |
CK1, 2 (06) (UQA, U42, 33I) (EXC KA6, STZ, Y91) |
2009-2009 |
01 |
| 008 |
20779658 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (TITANIUM) |
CK1, 2 (06) (UQA, U42, 83I) (EXC KA6, STZ, Y91) |
2009-2009 |
01 |
| 008 |
20779660 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (EBONY) |
CK1, 2 (06) (UQA, 19I) (EXC KA6, STZ, U42, Y91) |
2009-2009 |
01 |
| 008 |
20779661 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (CASHMERE) |
CK1, 2 (06) (UQA, 33I) (EXC KA6, STZ, U42, Y91) |
2009-2009 |
01 |
| 008 |
20779662 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (TITANIUM) |
CK1, 2 (06) (UQA, 83I) (EXC KA6, STZ, U42, Y91) |
2009-2009 |
01 |
| 008 |
20779684 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (EBONY) |
CK1, 2 (06) (UQ3, 19I) (EXC KA6, U42, Y91) |
2009-2009 |
01 |
| 008 |
20779685 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (CASHMERE) |
CK1, 2 (06) (UQ3, 33I) (EXC KA6, U42, Y91) |
2009-2009 |
01 |
| 008 |
20779686 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (TITANIUM) |
CK1, 2 (06) (UQ3, 83I) (EXC KA6, U42, Y91) |
2009-2009 |
01 |
| 008 |
20817074 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (EBONY) |
CK1, 2 (06) (KA6, STZ, UK6, UL8, UQA, UVB, U42, 19I) (EXC Y91) (EXPORT) |
2009-2009 |
01 |
| 008 |
20817075 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (CASHMERE) |
CK1, 2 (06) (KA6, STZ, UK6, UL8, UQA, UVB, U42, 33I) (EXC Y91) (EXPORT) |
2009-2009 |
01 |
| 008 |
20817076 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (TITANIUM) |
CK1, 2 (06) (KA6, STZ, UK6, UL8, UQA, UVB, U42, 83I) (EXC Y91) (EXPORT) |
2009-2009 |
01 |
| 008 |
20817082 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (EBONY) |
CK1, 2 (06) (KA6, STZ, UK6, UQA, U42, 19I) (EXC Y91) |
2009-2009 |
01 |
| 008 |
20817083 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (CASHMERE) |
CK1, 2 (06) (KA6, STZ, UK6, UQA, U42, 33I) (EXC Y91) |
2009-2009 |
01 |
| 008 |
20817084 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (TITANIUM) |
CK1, 2 (06) (KA6, STZ, UK6, UQA, U42, 83I) (EXC Y91) |
2009-2009 |
01 |
| 008 |
20817086 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (EBONY) |
CK1, 2 (06) (KA6, STZ, UK6, UQA, 19I) (EXC U42, Y91) |
2009-2009 |
01 |
| 008 |
20817087 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (CASHMERE) |
CK1, 2 (06) (KA6, STZ, UK6, UQA, 33I) (EXC U42, Y91) |
2009-2009 |
01 |
| 008 |
20817088 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (TITANIUM) |
CK1, 2 (06) (KA6, STZ, UK6, UQA, 83I) (EXC U42, Y91) |
2009-2009 |
01 |
| 008 |
25911837 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (EBONY) |
CK1, 2 (06) (KA6, STZ, UL8, UQA, UVB, U42, 19I) (EXC Y91) (EXPORT) |
2009-2009 |
01 |
| 008 |
25911838 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (CASHMERE) |
CK1, 2 (06) (KA6, STZ, UL8, UQA, U42, 33I) (EXC Y91) (EXPORT) |
2009-2009 |
01 |
| 008 |
25911839 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (TITANIUM) |
CK1, 2 (06) (KA6, STZ, UL8, UQA, UVB, U42, 83I) (EXC Y91) (EXPORT) |
2009-2009 |
01 |
| 008 |
25911841 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (EBONY) |
CK1, 2 (06) (KA6, UL8, 19I, 22I, 84I) (EXC STZ, Y91) (EXPORT) |
2007-2009 |
01 |
| 008 |
25911842 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (CASHMERE) |
CK1, 2 (06) (KA6, UL8, 31I, 33I) (EXC Y91) (EXPORT) |
2007-2009 |
01 |
| 008 |
25911843 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (TITANIUM) |
CK1, 2 (06) (KA6, UL8, UQA, UVB, U42, 83I) (EXC STZ, Y91) (EXPORT) |
2007-2009 |
01 |
| 008 |
25911846 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (EBONY) |
CK1, 2 (06) (UL8, 19I, 22I, 84I) (EXC KA6, STZ, Y91) (EXPORT) |
2007-2009 |
01 |
| 008 |
25911847 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (CASHMERE) |
CK1, 2 (06) (UL8, 31I, 33I) (EXC KA6, STZ, Y91) (EXPORT) |
2007-2009 |
01 |
| 008 |
25911848 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (TITANIUM) |
CK1, 2 (06) (UL8, UQA, UVB, U42, 83I) (EXC KA6, STZ, Y91) (EXPORT) |
2007-2009 |
01 |
| 008 |
25913692 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (EBONY) |
CK1, 2 (06) (KA6, UQA, U42, 19I, 22I, 84I) (EXC Y91) |
2007-2009 |
01 |
| 008 |
25913693 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (CASHMERE) |
CK1, 2 (06) (KA6, UQA, U42, 31I, 33I) (EXC STZ, Y91) |
2007-2009 |
01 |
| 008 |
25913707 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (CASHMERE) |
CK1, 2 (06) (D07, UK6, UQA, 31I, 33I) (EXC KA6, U42, Y91) |
2007-2009 |
01 |
| 008 |
25913777 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19-23, 26-30, 33) (CASHMERE) |
CK1 (06) (STZ, UQA, U42, 33I) (EXC KA6, Y91) |
2009-2009 |
01 |
| 009 |
15217101 |
PANEL, F/FLR FRT CNSL RR TR (EBONY) |
CK1 (06-36) (19I, 22I, 84I) |
2007-2009 |
01 |
| 009 |
15217102 |
PANEL, F/FLR FRT CNSL RR TR (CASHMERE) |
CK1 (06-36) (31I, 33I, 39I) |
2007-2009 |
01 |
| 009 |
15217103 |
PANEL, F/FLR FRT CNSL RR TR (TITANIUM) |
CK1 (06-36) (83I) |
2007-2009 |
01 |
| 010 |
|
MODULE, HTR A/C RDO CONT |
|
2007-2009 |
|
| 010 |
15881861 |
MODULE, HTR A/C RDO CONT |
CK1, 2 (06) (D07, UK6, UQ3) (EXC KA6, U42, Y91) |
2008-2009 |
01 |
| 010 |
15881861 |
MODULE, HTR A/C RDO CONT |
CK1, 2 (06) (D07, UK6, UL8, UQA, US8, US9, UVA, U3R, U3U, U42) (EXC KA6, STZ, Y91) |
2009-2009 |
01 |
| 010 |
15881861 |
MODULE, HTR A/C RDO CONT |
CK1, 2 (06) (D07, UK6, UL8, UQA, UVB, U42) (EXC KA6, STZ, Y91) |
2009-2009 |
01 |
| 010 |
15881861 |
MODULE, HTR A/C RDO CONT |
CK1, 2 (06) (D07, UK6, UQA) (EXC KA6, STZ, U42, Y91) |
2009-2009 |
01 |
| 010 |
15881861 |
MODULE, HTR A/C RDO CONT |
CK1, 2 (06) (D07, UK6, UQA, U42) (EXC KA6, STZ, UL8, Y91) |
2009-2009 |
01 |
| 011 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 12)
|
2007-2009 |
05 |
|
| 012 |
15134825 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13, 14) (NO AUDIO JACKS) |
CK1, 2 (06) (UL8) (EXPORT) |
2007-2009 |
01 |
| 012 |
15134825 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13, 14) (NO AUDIO JACKS) |
CK1, 2 (06) (UQA) |
2007-2009 |
01 |
| 012 |
15134825 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13, 14, 15) (NO AUDIO JACKS) |
CK1, 2 (06) (UL8) (EXPORT) |
2007-2009 |
01 |
| 012 |
15134825 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13, 14, 15) (NO AUDIO JACKS) |
CK1, 2 (06) (UQA) |
2007-2009 |
01 |
| 012 |
15134826 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13, 14) (EBONY) (2 AUDIO JACKS) |
CK1, 2 (06) (EXC UL8) |
2007-2009 |
01 |
| 012 |
15134826 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13, 14) (EBONY) (2 AUDIO JACKS) |
CK1, 2 (06) (UQA) |
2007-2009 |
01 |
| 012 |
15134826 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13, 14, 15) (EBONY) (2 AUDIO JACKS) |
CK1, 2 (06) (EXC UL8) |
2007-2009 |
01 |
| 012 |
15134826 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13, 14, 15) (EBONY) (2 AUDIO JACKS) |
CK1, 2 (06) (UQA) |
2007-2009 |
01 |
| 017 |
15134819 |
HOLDER, F/FLR RR CNSL CUP |
CK1, 2, 3 (D07) |
2007-2009 |
01 |
| 018 |
15134813 |
HINGE, F/FLR CNSL COMPT DR (COMPARTMENT DOOR HINGE) |
CK1, 2, 3 |
2007-2009 |
01 |
| 018 |
15134821 |
HINGE, F/FLR CNSL COMPT DR (REAR CUPHOLDER DOOR HINGE) |
CK1, 2, 3 |
2007-2009 |
01 |
| 019 |
25781988 |
HARNESS, F/FLR CNSL WRG (PART OF 8) |
CK1, 2 (06) (D07, UK6, UQ3) (EXC KA6, U42, Y91) |
2007-2009 |
01 |
| 019 |
25781989 |
HARNESS, F/FLR CNSL WRG (PART OF 8) |
CK1 (06) (D07, STZ, UK6, UL8, UQA, US8, US9, UVA, U3R, U3U, U42) (EXC KA6, Y91) |
2009-2009 |
01 |
| 019 |
25781989 |
HARNESS, F/FLR CNSL WRG (PART OF 8) |
CK1 (06) (D07, STZ, UK6, UQA, U42) (EXC KA6, UL8, Y91) |
2009-2009 |
01 |
| 019 |
25781989 |
HARNESS, F/FLR CNSL WRG (PART OF 8) |
CK1, 2 (06) (D07, KA6, STZ, UK6, UL8, UQA, US8, US9, UVA, U3R, U3U) (EXC Y91) |
2009-2009 |
01 |
| 019 |
25781989 |
HARNESS, F/FLR CNSL WRG (PART OF 8) |
CK1, 2 (06) (D07, KA6, STZ, UK6, UQA, U42) (EXC UL8, Y91) |
2009-2009 |
01 |
| 021 |
11610157 |
ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 8) (10.701)
|
2007-2009 |
AR |
|
| 022 |
|
BRACKET, F/FLR CNSL (PART OF 8) |
|
2007-2009 |
|
| 022 |
|
BRACKET, F/FLR CNSL (PART OF 8) |
|
2008-2009 |
|
| 023 |
|
BRACKET, F/FLR CNSL (PART OF 8) |
|
2007-2009 |
|
| 023 |
|
BRACKET, F/FLR CNSL (PART OF 8) |
|
2008-2009 |
|
| 024 |
11562473 |
БОЛТ, F/SEAT (M12X1.75X45)
| CK1, 2, 3 (AE7, AN3, AZ3, A95) |
2007-2009 |
04 |
|
| 025 |
15035434 |
ГАЙКА, F/SEAT (M10X1.5X10.8) (FLANGE NUT) (16.679)
| CK1, 2, 3 |
2007-2009 |
04 |
|
| 026 |
15186661 |
AMPLIFIER, RDO SPKR (PART OF 8) (ACDelco #15186661) |
CK1, 2 (06) (D07, UK6, UQA) (EXC Y91) |
2007-2009 |
01 |
| 026 |
25939528 |
AMPLIFIER, RDO SPKR (PART OF 8) (ACDelco #25939528) (LABELED 25939528 OR 15937318) |
CK1 (06) (D07) (EXC Z75) |
2009-2009 |
01 |
| 027 |
|
RETAINER, F/FLR CNSL |
|
2007-2009 |
|
| 027 |
|
RETAINER, F/FLR CNSL |
|
2008-2009 |
|
| 028 |
25749635 |
RETAINER, ACSRY PWR RCPT (PART OF 8) (EBONY) (W/O CAP)
| CK1, 2, 3 |
2007-2009 |
01 |
|
| 029 |
25774623 |
RECEPTACLE, ACSRY PWR (PART OF 8) (ACSRY PWR RECEPTACLE ASSEM LABELED 4623)
| CK1, 2, 3 |
2007-2009 |
02 |
|
| 029 |
25776667 |
RECEPTACLE, ACSRY PWR (PART OF 8) (2 TERMINALS)
| CK1 (06) (ULT) |
2008-2009 |
01 |
|
| 030 |
15134801 |
MAT, F/FLR CNSL FRT COMPT (PART OF 8) (EBONY) |
CK1, 2 (06) |
2007-2009 |
01 |
| 031 |
15906823 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 32) (TITANIUM) |
CK1 (06-36) (D07, 83I) |
2007-2009 |
01 |
| 031 |
15916185 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 32) (TITANIUM) |
CK1 (06-36) (D07, 83I) |
2007-2009 |
01 |
| 032 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 31)
|
2007-2009 |
04 |
|
| 033 |
15070572 |
BUMPER, F/FLR RR CNSL A/RST (PART OF 4, 8) |
CK1, 2 (06) (D07, UK6) (EXC Y91) |
2007-2009 |
01 |
| 034 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 35)
|
2007-2009 |
04 |
|
| 035 |
25912890 |
BEZEL, F/FLR FRT CNSL ACSRY TR (INCLS 34, 36, 37) (BRUSH) (W/O HEAT STAKES) |
CK1 (D07, GAT) |
2008-2009 |
01 |
| 035 |
25991706 |
BEZEL, F/FLR FRT CNSL ACSRY TR (INCLS 34, 36, 37) (SOLITARE) |
CK1 (06) (ULT, 41I) |
2008-2009 |
01 |
| 036 |
|
LINER, F/FLR CNSL RR CUP HLDR (PART OF 35) |
|
2007-2009 |
|
| 036 |
|
LINER, F/FLR CNSL RR CUP HLDR (PART OF 35) |
|
2008-2009 |
|
| 037 |
|
ASHTRAY, F/FLR CNSL (PART OF 35) |
|
2007-2009 |
|
| 037 |
|
ASHTRAY, F/FLR CNSL (PART OF 35) |
|
2008-2009 |
|
