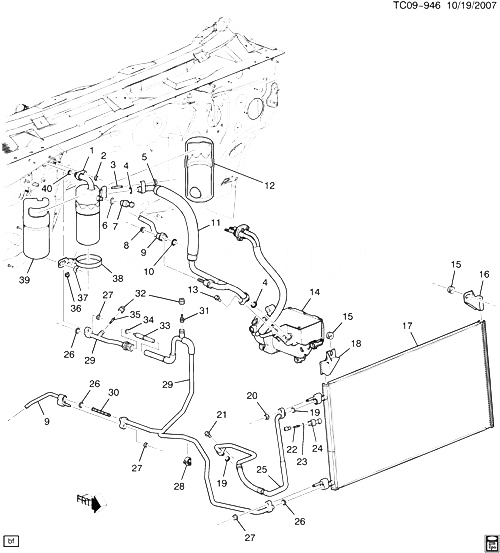

(TC09-946) - 2008-2009 CK107(06) СИСТЕМА ОХЛАЖДЕНИЯ КОНДИЦИОНЕРА/ПЕРЕДНИЙ (HYBRID HP2) CHEVROLET TAHOE HYBRID (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25872382 ACCUMULATOR, A/C (INCLS 3, 6, 7, 12, 36, 38-40) (ACDelco #15-10730) CK1 (LFA, CJ2) 2008-2009 01
002 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C ACCUM RET) (8.915) (ACDelco #11514596) 2008-2009 01
003 11561065 STUD, A/C ACCUM (PART OF 1) (STRAIGHT M8X1.25X13.5, M8X1.25X27) (9.190) CK1 (LFA, CJ2) 2008-2009 01
004 02724966 SEAL, A/C ACCUM FRT HOSE (25MM OD X 17MM ID, 3/4IN DIA) (PART OF 11) (FOR NON-CANADIAN ORDERS) (ACDelco #15-31101) CK1 (LFA, CJ2) 2008-2009 02
005 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C ACCUM FRT HOSE) (8.915) (ACDelco #11514596) 2008-2009 01
006 25872390 SEAL, AUX A/C EVPR OTLT TUBE (O RING) (PART OF 1) (W/1 SEAL) CK1 (LFA, CJ2) 2008-2009 01
007 22624069 ДАТЧИК, A/C REFRIG PRESS (PART OF 1) (LOW PRESSURE POA ACCUMM ASM) CK1 (LFA, CJ2) 2008-2009 01
008 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (AUX A/C EVPR TUBE) (8.915) (ACDelco #11514596) 2008-2009 01
009 HOSE, AUX A/C EVPR AUX HTR (СМ. ГРУППУ 09.000 СИСТЕМА ОХЛАЖДЕНИЯ КОНДИЦИОНЕРА/REAR FOR DETAILED ILLUSTRATED VIEW) (INCLS 10) (8.846) 2008-2009
010 52474373 SEAL, A/C CMPR CNDSR HOSE (PART OF 9) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (ACDelco #15-31055) CK1 (LFA) 2008-2009 02
011 25872377 HOSE, A/C ACCUM (INCLS 4) CK1 (06) (LFA, CJ2) 2008-2009 01
012 25956569 INSULATOR, A/C ACCUM (PART OF 1) CK1 (LFA, CJ2) 2008-2009 01
013 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (A/C ACCUM HOSE) (ACDelco #11570082) 2008-2009 01
014 COMPRESSOR KIT, A/C (СМ. ГРУППУ 09.000 КРЕПЛЕНИЕ КОМПРЕССОРА КОНДИЦИОНЕРА FOR DETAILED ILLUSTRATED VIEW) 2008-2009
015 52476687 INSULATOR, A/C CNDSR (PART OF 16-18) (UPPER) (6.602) CK1, 2, 3 2008-2009 01
016 52482008 BRACKET, A/C CNDSR UPR (PART OF 17) (INCLS 15) (77.0MM LONG) (RETURN SIDE) (9.242) CK1 (LFA) 2009-2009 01
017 25967386 CONDENSER, A/C (INCLS 15, 16, 18) (ACDelco #15-63667) CK1 (LFA) 2009-2009 01
018 52482006 BRACKET, A/C CNDSR UPR (PART OF 17) (INCLS 15) (77.0MM LONG) (INLET/OUTLET) (9.242) CK1 (LFA) 2009-2009 01
019 52474373 SEAL, A/C CMPR CNDSR HOSE (PART OF 25) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (ACDelco #15-31055) CK1 (LFA) 2008-2009 02
020 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C CNDSR HOSE) (8.915) (ACDelco #11514596) 2008-2009 01
021 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (A/C CNDSR HOSE) (ACDelco #11570082) 2008-2009 01
022 25872392 CORE, A/C REFRIG SERV VLV (PART OF 24, 25) (ACDelco #15-63665) CK1 (LFA, CJ2) 2008-2009 02
023 25872379 SEAL, A/C CNDSR FTG (O RING) (PART OF 25) (ACDelco #15-33868) CK1 (LFA) 2008-2009 01
024 13502758 ДАТЧИК, A/C REFRIG PRESS (INCLS 22) (PART OF 25) (ACDelco #15-51257) CK1, 2, 3 2008-2009 01
024 13502759 ДАТЧИК, A/C REFRIG PRESS (INCLS 22) (PART OF 25) (ACDelco #15-51258) CK1, 2, 3 2008-2009 01
025 25872374 HOSE, A/C CNDSR (INCLS 19, 22-24) CK1 (LFA) 2008-2009 01
026 52474373 SEAL, A/C CMPR CNDSR HOSE (PART OF 29) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (ACDelco #15-31055) CK1 (LFA) 2008-2009 02
027 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (AUX A/C EVPR TUBE) (8.915) (ACDelco #11514596) 2008-2009 03
028 15734255 CLIP, A/C EVPR TUBE (PART OF 29) CK1, 2, 3 2008-2009 01
029 25872375 TUBE, A/C EVPR (INCLS 26, 28, 30-35) CK1 (06) (LFA, CJ2) 2009-2009 01
030 52494593 SCREEN, A/C EVPR TXV (PART OF 29) (ACDelco #15-75210) CK1 (LFA, CJ2) 2008-2009 01
031 25872394 VALVE, A/C REFRIG SERV (PART OF 29) (ACDelco #15-50806) CK1 (LFA, CJ2) 2008-2009 01
032 25872391 CAP, A/C REFRIG CHRG VLV (PART OF 29) (ACDelco #15-33871) CK1 (06-43) (LFA, CJ2) 2009-2009 01
033 15784601 ORIFICE, A/C CNDSR (PART OF 29) (ACDelco #15-33410) CK1 (LFA, CJ2) 2008-2009 01
034 25872393 SEAL, A/C EVPR TUBE (PART OF 29) (ACDelco #15-33873) CK1 (06-43) (LFA, CJ2) 2009-2009 01
035 03041827 VALVE, A/C REFRIG PRESS SEN (INCLS SPRING, W/O O-RING, 13/64-36 THD) (PART OF 29) (9.177) (ACDelco #15-1119) CK1, 2, 3 (LFA, CJ2) 2008-2009 01
036 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (PART OF 1, 38) 2008-2009 01
037 11588331 ГАЙКА, HEX HD W/CON WA, M6X1, 5.7THK, 25 O.D., 9, GM6138M (A/C ACCUM BRKT) 2008-2009 01
038 15136597 BRACKET, A/C ACCUM (PART OF 1) (INCLS 36) CK1 (LFA, CJ2) 2008-2009 01
039 15074675 INSULATOR, A/C ACCUM (PART OF 1) (ACDelco #15-10621) CK1 (LFA, CJ2) 2008-2009 01
040 02724966 SEAL, A/C ACCUM FRT TUBE (25MM OD X 17MM ID, 3/4IN DIA) (PART OF 1) (FOR NON-CANADIAN ORDERS) (9.222) (ACDelco #15-31101) CK1, 2, 3 2008-2009 01
