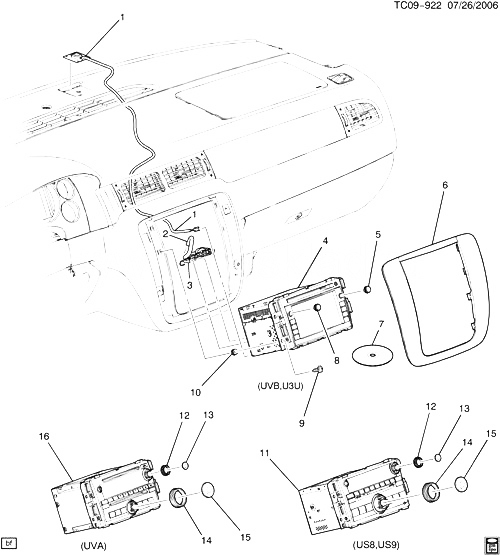

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15201798 |
АНТЕННА, ELEK NAVIGATION (*GPS АНТЕННА*) (ACDelco #15201798) |
CK1, 2, 3 (UVB, U3U) |
2007-2009 |
01 |
| 002 |
|
HARNESS, I/P WRG (INCLS 3) (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2009 |
|
| 004 |
20807044 |
RADIO, AM/FM STEREO AUDIO DISC PLYR NAVN (INCLS 5, 8) (ACDelco #20807044) (LABELED 20807044 OR 25894202) |
CK1, 2, 3 (UVB) (EXC UL8) |
2009-2009 |
01 |
| 004 |
20807045 |
RADIO, AM/FM STEREO AUDIO DISC PLYR NAVN (INCLS 5, 8) (ACDelco #20807045) (LABELED 20807045) |
CK1, 2, 3 (U3U) |
2009-2009 |
01 |
| 004 |
20807046 |
RADIO, AM/FM STEREO AUDIO DISC PLYR NAVN (INCLS 5, 8) (ACDelco #20807046) (LABELED 20807046 OR 25891155) |
CK1, 2 (UL8, UVB) (EXPORT) |
2009-2009 |
01 |
| 004 |
20862567 |
RADIO, AM/FM STEREO AUDIO DISC PLYR NAVN (INCLS 5, 8) (LABELED 20862567) |
CK1, 2, 3 (UVB) (EXC UL8) |
2009-2009 |
01 |
| 004 |
20862568 |
RADIO, AM/FM STEREO AUDIO DISC PLYR NAVN (INCLS 5, 8) (LABELED 20862568) |
CK1, 2, 3 (U3U) |
2009-2009 |
01 |
| 004 |
20862569 |
RADIO, AM/FM STEREO AUDIO DISC PLYR NAVN (INCLS 5, 8) (LABELED 20862569) |
CK1, 2 (UL8, UVB) |
2009-2009 |
01 |
| 004 |
25894203 |
RADIO, AM/FM STEREO AUDIO DISC PLYR NAVN (INCLS 5, 8) (ACDelco #25894203) (LABELED 25894203) |
CK1, 2, 3 (U3U) |
2009-2009 |
01 |
| 006 |
25887440 |
PLATE, I/P ACSRY CTR TR (WALNUT) |
CK1, 2, 3 (SLT, X88, 19I, 33I, 83I) |
2009-2009 |
01 |
| 007 |
|
DISC, NAVN DATA (FOR SERVICE SEE GM PARTS PROCESS/POLICY BULLETIN FOR LATEST SERVICE INFORMATION) |
|
2007-2009 |
|
| 009 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO) (9.665)
|
2007-2009 |
04 |
|
| 010 |
11610157 |
ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (I/P UPR T/PNL) (10.701)
|
2007-2009 |
AR |
|
| 011 |
25941137 |
RADIO, AM/FM STEREO CLK CD PLYR (LABELED 25941137) (INCLS 12-15) (ACDelco #25941137) |
CK1, 2, 3 (US8) |
2009-2009 |
01 |
| 011 |
25974801 |
RADIO, AM/FM STEREO CLK CD PLYR (LABELED 25974801) (INCLS 12-15) (LABELED 25974801) (ACDelco #25974801) |
CK1, 2, 3 (US8) |
2009-2009 |
01 |
| 011 |
25974802 |
RADIO, AM/FM STEREO CLK CD PLYR (INCLS 12-15) (LABELED 25974802) (ACDelco #25974802)
| CK1, 2, 3 (US9) |
2009-2009 |
01 |
|
| 012 |
19115968 |
KNOB, RDO TUNING CONT (PART OF 11, 16) |
CK1, 2, 3 (UM7, U1C) |
2009-2009 |
01 |
| 013 |
|
PUSHBUTTON, RDO TUNE (PART OF 11, 16) |
|
2009-2009 |
|
| 014 |
19115967 |
KNOB, RDO VOL CONT (PART OF 11, 16) |
CK1, 2, 3 (UM7, U1C) |
2009-2009 |
01 |
| 015 |
19115970 |
PUSHBUTTON, RDO PWR (PART OF 11, 16) (9.652) |
CK1, 2, 3 (U1C, UM7, US8, US9) |
2007-2009 |
01 |
| 015 |
19115970 |
PUSHBUTTON, RDO PWR (PART OF 11, 16) |
CK1, 2, 3 (UM7, U1C) |
2009-2009 |
01 |
