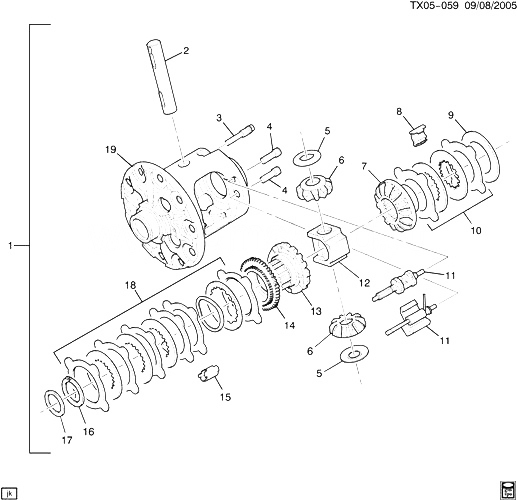

(TX05-059) - 2007-2009 CK1(06-36) ЗАДНЯЯ ОСЬ В СБОРЕ 8.625 RING GEAR ЧАСТЬ 2 DIFFERENTIAL/LOCKING(G80,EXC (AXN)) CHEVROLET TAHOE HYBRID (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25902687 DIFFERENTIAL, (INCLS 2-19) CK1 (GT4, G80) 2009-2009 01
001 25902687 DIFFERENTIAL, (INCLS 2-19) CK107 (06) (GU4, HP2) 2009-2009 01
001 25902687 DIFFERENTIAL, (INCLS 2-19) K1 (GT5, G80) 2009-2009 01
001 25902687 DIFFERENTIAL, (INCLS 2-19) (5.510) CK1 (GT4, G80) 2009-2009 01
001 25902687 DIFFERENTIAL, (INCLS 2-19) (5.510) CK107 (06) (GU4, HP2) 2009-2009 01
001 25902687 DIFFERENTIAL, (INCLS 2-19) (5.510) K1 (GT5, G80) 2009-2009 01
002 25824249 SHAFT, DIFF P/GR (124.84 MM) CK1 2009-2009 01
003 25872305 БОЛТ, DIFF P/GR SHF LK CK1 (EXC AXN) 2007-2009 01
004 14048409 BUSHING, LKG DIFF LOCKOUT (EATON EDS-98648) CK1 (GT4, G80) 2009-2009 02
004 14048409 BUSHING, LKG DIFF LOCKOUT (EATON EDS-98648) CK107 (06) (GU4, HP2) 2009-2009 02
004 14048409 BUSHING, LKG DIFF LOCKOUT (EATON EDS-98648) K1 (GT5, G80) 2009-2009 02
005 12471532 WASHER, DIFF P/GR THR (.820 I.D.X1.69 O.D.) (EATON EDS-89189, .06 LIP) CK1 (G80) 2007-2009 02
006 GEAR, DIFF PINION (*KIT1) 2007-2009
007 GEAR, LKG DIFF SI (SPLINED) (*KIT1) 2007-2009
008 15599623 GUIDE, LKG DIFF CLU DISC (PART OF 10) (WIDTH .93 INCH) CK1 (G80) 2007-2009 04
009 14063581 SHIM, DIFF SI GR (.010 THK) (BELL END) CK1 (G80) 2007-2009 01
009 14063582 SHIM, DIFF SI GR (.015 THK) (BELL END) CK1 (G80) 2007-2009 01
009 14063583 SHIM, DIFF SI GR (.020 THK) (BELL END) CK1 (G80) 2007-2009 01
009 14063584 SHIM, DIFF SI GR (.025 THK) (BELL END) CK1 (G80) 2007-2009 01
009 14063585 SHIM, DIFF SI GR (.030 THK) (BELL END) CK1 (G80) 2007-2009 01
009 14063586 SHIM, DIFF SI GR (.035 THK) (BELL END) CK1 (G80) 2007-2009 01
009 14063587 SHIM, DIFF SI GR (.040 THK) (BELL END) CK1 (G80) 2007-2009 01
009 14063588 SHIM, DIFF SI GR (.045 THK) (BELL END) CK1 (G80) 2007-2009 01
010 26045829 DISC SET, LKG DIFF CLU (INCLS 8) (EATON EDS-29996) CK107 (06) (GU4, HP2) 2009-2009 01
011 12471530 GOVERNOR KIT, LKG DIFF (EATON EDS-29672) (INCLS BRKT) CK1 2007-2009 01
012 12471393 BLOCK, LKG DIFF THR (PURPLE) (1.322 THK) CK1 (G80) 2007-2009 01
012 12471393 BLOCK, LKG DIFF THR (PURPLE) (1.322 THK) CK1 (GU4, HP2) 2008-2009 01
012 12471394 BLOCK, LKG DIFF THR (WHITE) (1.326 THK) CK1 (G80) 2007-2009 01
012 12471394 BLOCK, LKG DIFF THR (WHITE) (1.326 THK) CK1 (GU4, HP2) 2008-2009 01
012 12471395 BLOCK, LKG DIFF THR (BROWN) (1.330 THK) CK1 (GU4, HP2) 2008-2009 01
012 12471396 BLOCK, LKG DIFF THR (YELLOW) (1.334 THK) CK1 (G80) 2007-2009 01
012 12471396 BLOCK, LKG DIFF THR (YELLOW) (1.334 THK) CK1 (GU4, HP2) 2008-2009 01
012 12471397 BLOCK, LKG DIFF THR (ORANGE) (1.338 THK) CK1 (G80) 2007-2009 01
012 12471397 BLOCK, LKG DIFF THR (ORANGE) (1.338 THK) CK1 (GU4, HP2) 2008-2009 01
012 12471398 BLOCK, LKG DIFF THR (PINK) (1.342 THK) CK1 (G80) 2007-2009 01
012 12471398 BLOCK, LKG DIFF THR (PINK) (1.342 THK) CK1 (GU4, HP2) 2008-2009 01
012 12471399 BLOCK, LKG DIFF THR (GREEN) (1.346 THK) CK1 (G80) 2007-2009 01
012 12471399 BLOCK, LKG DIFF THR (GREEN) (1.346 THK) CK1 (GU4, HP2) 2008-2009 01
013 GEAR, LKG DIFF SI (CAM FACED) (*KIT1) 2007-2009
014 12471406 CAM, LKG DIFF (EATON EDS-89096) CK1 (G80) 2007-2009 01
015 12471533 GUIDE, LKG DIFF CLU DISC (PART OF 18) (WIDTH .51 INCH) CK1 (G80) 2007-2009 04
016 09412303 RETAINER, EXT.SNAP RING M46 DIA SHF 2007-2009 AR
017 26012909 WASHER, LKG DIFF CLU DISC THR (.022 THK) CK1 (G80) 2007-2009 01
017 26012909 WASHER, LKG DIFF CLU DISC THR (.022 THK) CK1 (GU4, HP2) 2008-2009 01
017 26012910 WASHER, LKG DIFF CLU DISC THR (.027 THK) CK1 (G80) (EXC AXN) 2007-2009 01
017 26012910 WASHER, LKG DIFF CLU DISC THR (.027 THK) CK1 (GU4, HP2) 2008-2009 01
017 26012911 WASHER, LKG DIFF CLU DISC THR (.032 THK) CK1 (G80) (EXC AXN) 2007-2009 01
017 26012911 WASHER, LKG DIFF CLU DISC THR (.032 THK) CK1 (GU4, HP2) 2008-2009 01
017 26012912 WASHER, LKG DIFF CLU DISC THR (.036 THK) CK1 (G80) (EXC AXN) 2007-2009 01
017 26012912 WASHER, LKG DIFF CLU DISC THR (.036 THK) CK1 (GU4, HP2) 2008-2009 01
017 26012913 WASHER, LKG DIFF CLU DISC THR (.040 THK) CK1 (G80) (EXC AXN) 2007-2009 01
017 26012913 WASHER, LKG DIFF CLU DISC THR (.040 THK) CK1 (GU4, HP2) 2008-2009 01
017 26012914 WASHER, LKG DIFF CLU DISC THR (.044 THK) CK1 (G80) (EXC AXN) 2007-2009 01
017 26012914 WASHER, LKG DIFF CLU DISC THR (.044 THK) CK1 (GU4, HP2) 2008-2009 01
017 26012915 WASHER, LKG DIFF CLU DISC THR (.048 THK) CK1 (G80) (EXC AXN) 2007-2009 01
017 26012915 WASHER, LKG DIFF CLU DISC THR (.048 THK) CK1 (GU4, HP2) 2008-2009 01
017 26012916 WASHER, LKG DIFF CLU DISC THR (.052 THK) CK1 (G80) (EXC AXN) 2007-2009 01
017 26012916 WASHER, LKG DIFF CLU DISC THR (.052 THK) CK1 (GU4, HP2) 2008-2009 01
018 12471404 DISC SET, LKG DIFF CLU (INCLS 15) (EATON EDS- 29534 INCLS WASHER, DISCS GUIDE) CK1 (G80) (EXC AXN) 2007-2009 01
018 12471404 DISC SET, LKG DIFF CLU (INCLS 15) (EATON EDS- 29534 INCLS WASHER, DISCS GUIDE) CK107 (06) (GU4, HP2) 2008-2009 01
019 CASE, DIFF 2007-2009
K01 19178111 GEAR KIT, DIFF SI PINION (INCLS 6, 7, 13) CK1 (GT4, GU5, G80) 2009-2009 01
