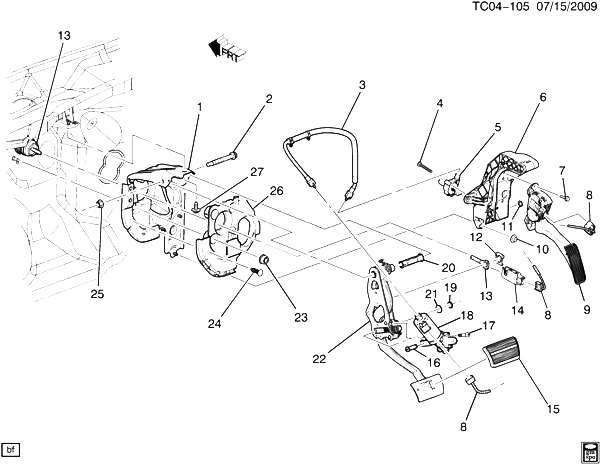

(TC04-105) - 2008-2009 CK1,2(06-36) ПЕДАЛЬ ТОРМОЗА (POWER ADJUSTABLE PEDAL JF4, AE7, A95) CHEVROLET TAHOE HYBRID (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
002 15000145 БОЛТ, BRK PED PIV (12X1.75X120, 25) CK1, 2, 3 2008-2009 01
003 CABLE, BRK PED POSN (PART OF 6) 2008-2009
004 11562023 БОЛТ, ELEK THROT ACTR (PAN HEAD, M6X1X40, 15 THD, 12 OD, 10.9 STL, GM4277, HDR PT) CK1, 2, 3 2008-2009 02
005 15123616 ACTUATOR PKG, THROT CK1, 2, 3 2008-2009 01
007 11516424 БОЛТ, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (ACCEL PED LVR) 2008-2009 02
008 HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) 2008-2009
009 25832864 PEDAL, ACCEL (INCLS POSITION SENSOR) CK1, 2, 3 2008-2009 01
010 15685170 ГАЙКА, HEX-HD, W/FL WA, M6X1, 5.5 THK, 9, 7111M, 2MM THK 19 OD WA, NYLOC (PART OF 6) (8.917) 2008-2009 03
011 11505213 ГАЙКА, PUSH ON, M8, 1.96THK, 16.03 O.D., STL, PC (PART OF 6) 2008-2009 02
012 11569844 RETAINER, BRK PED PUSH ROD (WITH BOLT) CK1, 2, 3 2008-2009 01
013 BOOSTER, P/B (СМ. ГРУППУ 04.000 ТОРМОЗНОЙ УСИЛИТЕЛЬ FOR DETAILED ILLUSTRATED VIEW) 2008-2009
014 25981009 SWITCH, S/LP (ACDelco #D1539J) CK1 (06-36) 2008-2009 01
015 88982976 PAD, BRK PED (PART OF 22) CK1 (JD9, JF3, JF4, JF7, J92) 2008-2009 01
016 PIN, BRK PED BRKT (PART OF 22) 2008-2009
017 БОЛТ, MOTOR (PART OF 22) 2008-2009
018 MOTOR, BRK ACCEL PED ADJR ACTR (PART OF 22) 2008-2009
019 ГАЙКА, BRK PED (PART OF 22) 2008-2009
021 WASHER, BRK PED (PART OF 22) 2008-2009
023 11517996 ГАЙКА, P/B BOOS (M10X1.5, 11.2 THK) (8.917) CK1, 2, 3 2008-2009 04
024 RETAINER, BRK ACCEL CLU PED BRKT INSL (PUSH IN) (PART OF 1) 2008-2009
025 11514598 ГАЙКА, BRK PED PIV (HF 12X1.75) (8.915) CK1, 2, 3 2008-2009 01
026 INSULATOR, DA PNL (PART OF 1) 2008-2009
027 11517182 БОЛТ, BRK PED BRKT (M10X1.5X30, 15 THD) (8.900) CK1, 2, 3 2008-2009 01
