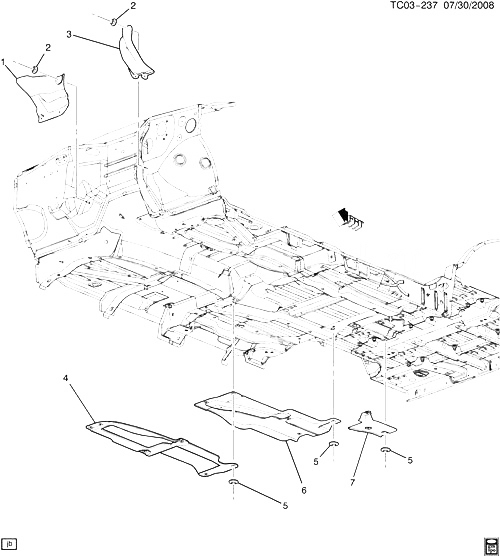

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15797116 |
SHIELD, EXH HT (@ DASH PNL) |
CK1, 2 (06) |
2008-2009 |
01 |
| 002 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (EXH H/SHLD (AT DA PNL))
|
2008-2009 |
06 |
|
| 003 |
15169247 |
SHIELD, EXH HT |
CK1, 2, 3 |
2008-2009 |
01 |
| 004 |
15804781 |
SHIELD, EXH FRT HT (AT F/FLR PNL) |
CK1 (03-06-36-53) |
2009-2009 |
01 |
| 004 |
15804781 |
SHIELD, EXH FRT HT (AT F/FLR PNL) |
CK1 (06-36) |
2009-2009 |
01 |
| 005 |
11588331 |
ГАЙКА, HEX HD W/CON WA, M6X1, 5.7THK, 25 O.D., 9, GM6138M (EXH H/SHLD) |
|
2008-2009 |
15 |
| 006 |
15291251 |
SHIELD, EXH HT (AT INTER FLR PNL) |
CK107 (06) (HP2) |
2008-2009 |
01 |
| 007 |
15102076 |
SHIELD, EXH HT (AT R/FLR PNL) |
CK1, 2 (06-36) |
2008-2009 |
01 |
