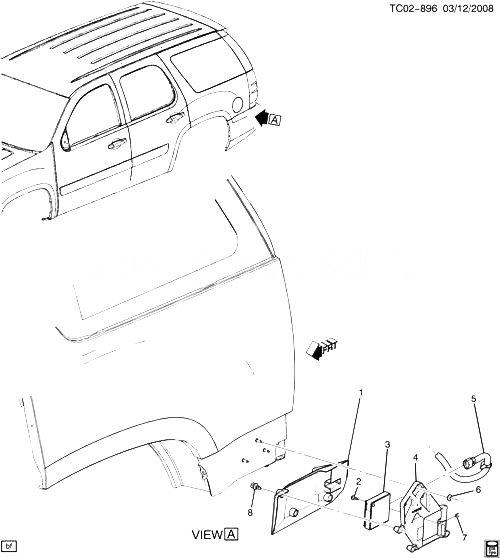

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25820974 |
BRACKET, SIDE OBJECT SEN (INNER) |
CK1, 2 (06) (UFT) |
2009-2009 |
01 |
| 001 |
25820975 |
BRACKET, SIDE OBJECT SEN (INNER) |
CK1, 2 (06) (UFT) |
2009-2009 |
01 |
| 002 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (SIDE OBJECT SEN)
|
2009-2009 |
01 |
|
| 003 |
20823460 |
ДАТЧИК, SIDE OBJECT (LABELED 20823460) |
CK1 (06) (UFT) |
2009-2009 |
02 |
| 003 |
25910830 |
ДАТЧИК, SIDE OBJECT |
CK1, 2 (06) (UFT) |
2009-2009 |
02 |
| 003 |
25978649 |
ДАТЧИК, SIDE OBJECT (LABELED 25978649) |
CK1 (06) (UFT) |
2009-2009 |
02 |
| 004 |
15941140 |
BRACKET, SIDE OBJECT SEN (OUTER) |
CK1, 2 (06) (UFT) |
2009-2009 |
01 |
| 004 |
15941274 |
BRACKET, SIDE OBJECT SEN (OUTER) |
CK1, 2 (06) (UFT) |
2009-2009 |
01 |
| 005 |
|
HARNESS, CHAS WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ШАССИ FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2009 |
|
| 006 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (SIDE OBJECT SEN)
|
2009-2009 |
03 |
|
| 007 |
11513599 |
ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (SIDE OBJECT SEN) (ACDelco #11513599)
|
2009-2009 |
01 |
|
| 008 |
21030249 |
RETAINER, EXPAN, 21 LG, 20. OD, 8.0 HOLE, 3.0-5.0 PNL, NYLON 6/6, BLK (SIDE OBJECT SENSING ALERT MDL) (8.950) (PUSH IN)
|
2009-2009 |
03 |
|
